Schneider Electric SURTD2200XLIM

APC Smart-UPS RT 2200VA 230V - Marine

MPN
SURTD2200XLIM
EAN
0731304286929
Category
Marine
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric SURTD2200XLIM?

The APC Smart-UPS RT is an online UPS with a power rating of 2200VA and output power capacity of 1540 watts. It includes multiple output connections such as IEC 60230 C19, IEC 60230 C13, and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.

Specifications

Specifications

PresentationHigh availability, ruggedized power protection for shipboard and other transportation applications.
Max. Capacity Used
Main Input Voltage230 V
Input voltage220 V, 240 V
Input Connection TypeBS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
Input voltage limits180...280 V
Network frequency50/60 Hz +/- 5 Hz auto-sensing
Output voltage220 V, 240 V
Rated power in W1540 W
rated power in VA2200 VA

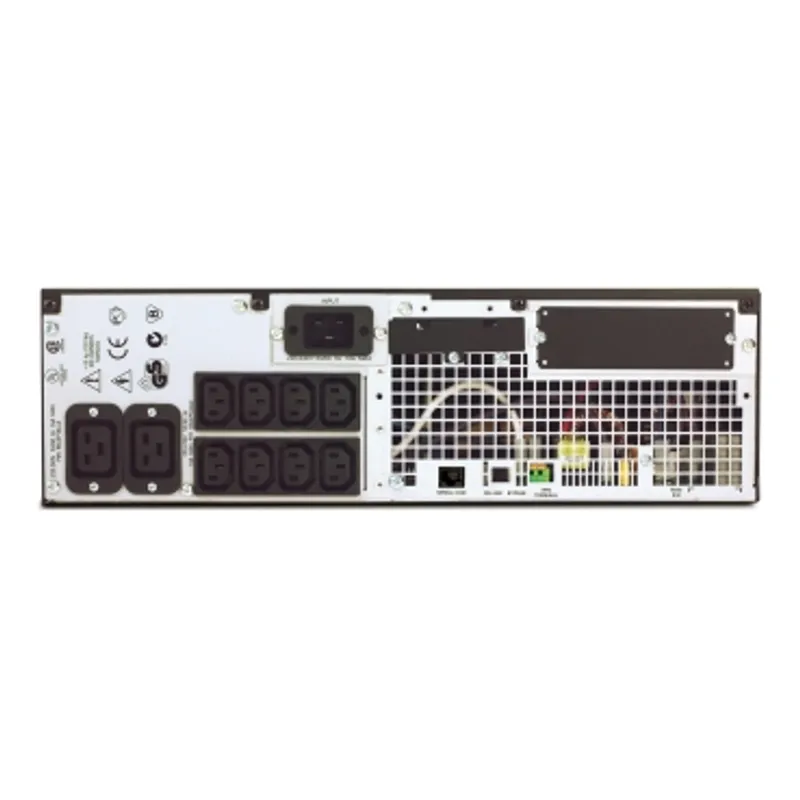

Output connection type8 IEC 60320 C13, 2 IEC Jumpers, 2 IEC 60320 C19
Bypass typeInternal bypass (automatic and manual)
Crest factor3 : 1
Harmonic distortionLess than 3 %
Maximum configurable power in VA2200 VA
Maximum configurable power in W1540 W
UPS typeDouble conversion online
Wave typeSine wave
Output frequency50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains, 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Emergency power offYes
Free slots0
AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rate555 J
Noise suppressionFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit3U
Cable length2.5 m
Number of cables1
ColourBlack
Height432 mm
Width130 mm
Depth660 mm
Net weight54.55 kg
Mounting locationFront
Mounting preferenceLower
Mounting modeRack-mounted
Two post mountable0
USB compatibleNo
Provided equipmentCD with software, Documentation CD, Installation guide, Rack mounting hardware, Smart UPS signalling RS-232 cable, User manual
Number of power module filled slots0
Number of power module free slots0
RedundantNo
Product or component typeUninterruptible power supply (UPS)
Product certificationsCE, DNV, KCC
StandardsEN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation0…55 °C
Ambient air temperature for storage-15…45 °C
Storage altitude0…15240 m
IP degree of protectionIP20
Relative humidity0…95 % non-condensing
Storage Relative Humidity0…95 % non-condensing
Acoustic level55 dBA
Heat dissipation609 Btu/h
Operating altitude0...10000 ft
Run TimeView Runtime Graph
Battery typeLead-acid battery
Extended runtime1
Number of battery filled slots2
Battery recharge time2.5 h
Number of battery replacement quantity1
Battery life3…5 year(s)
Replacement batteryAPCRBC140
Battery charger power382 W rated

Packaging

Package 11 PCE, 98 cm × 60.3 cm × 34.7 cm (L × W × H), 63.64 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

SURTD2200XLIM: frequently asked questions

When can SURTD2200XLIM be shipped?

SURTD2200XLIM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SURTD2200XLIM in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SURTD2200XLIM and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SURTD2200XLIM, subject to availability and destination.
