What is the Schneider Electric SURTD3000XLIM?

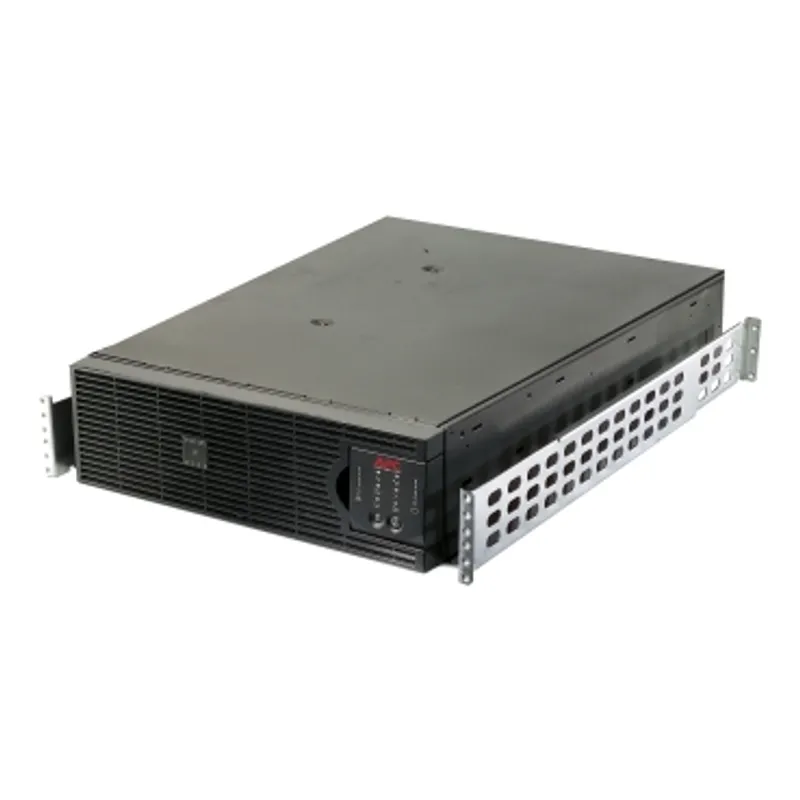

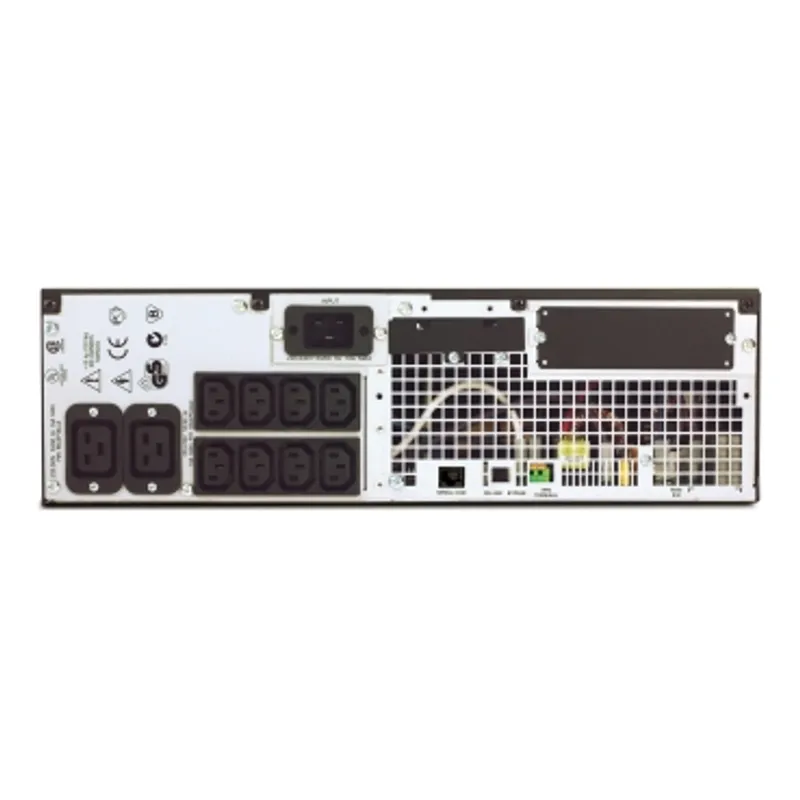

The APC Smart-UPS RT is an online UPS with a power rating of 3000VA and output power capacity of 2100 watts. It includes multiple output connections such as IEC 60230 and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.
Specifications
Specifications
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
| Max. Capacity Used | |
| Main Input Voltage | 230 V |
| Input voltage | 220 V, 240 V |
| Input Connection Type | BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P |
| Input voltage limits | 180...270 V |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Output voltage | 220 V, 240 V |
| Rated power in W | 2100 W |
| rated power in VA | 3000 VA |
| Output connection type | 8 IEC 60320, 2 IEC Jumpers, 2 IEC 60320 |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2100 W |
| UPS type | On-Line |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Emergency power off | Yes |
| Free slots | 0 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 555 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 3U |
| Cable length | 2.4 m |
| Number of cables | 1 |
| Colour | Black |
| Height | 432 mm |
| Width | 130 mm |
| Depth | 660 mm |
| Net weight | 54.55 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | No |
| Provided equipment | CD with software, Relay board, Smart UPS signalling RS-232 cable, User manual |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE, DNV, KCC |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 55 dBA |
| Heat dissipation | 609 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Extended runtime | 1 |
| Number of battery filled slots | 2 |
| Battery recharge time | 2.5 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC140 |
| Battery charger power | 359 W rated |
Packaging
| Package 1 | 1 PCE, 98 cm × 60.3 cm × 34.7 cm (L × W × H), 63.64 kg |
