Schneider Electric SURT48RMXLBP

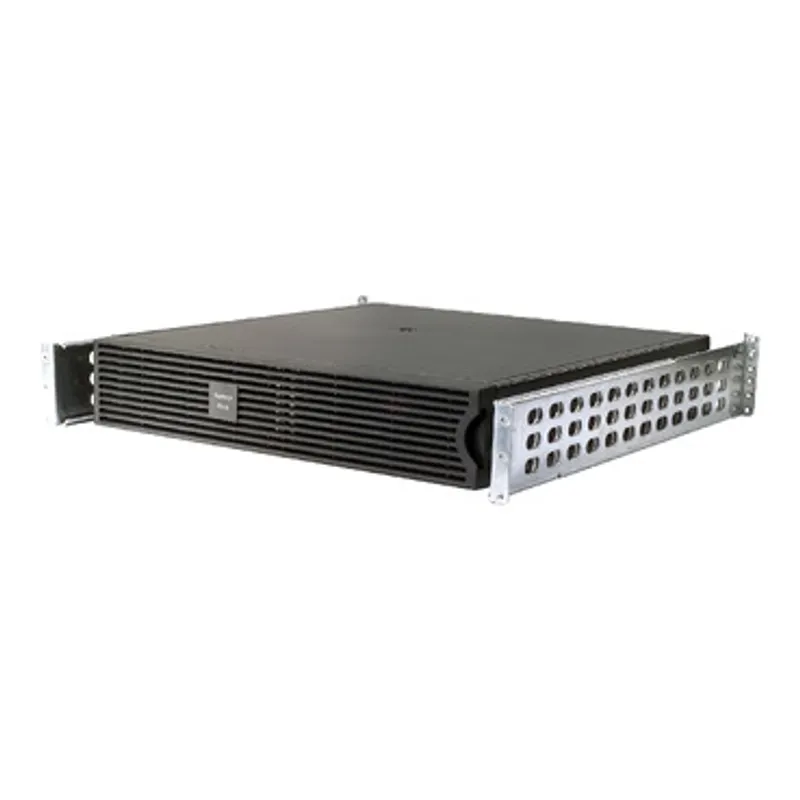

APC Smart-UPS RT 48V RM Battery Pack
- MPN
- SURT48RMXLBP
- EAN
- 3606485318929
- Category
- APC Smart-UPS Battery Systems
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric SURT48RMXLBP?
The APC Smart-UPS RT Battery Pack provides extended runtime for Smart-UPS applications. It is a lead-acid battery with a voltage of 48V. It operates within a temperature range of 32 to 104°F and can be stored at 5 to 113°F.
Specifications
Specifications
| Product or component type | External battery pack |
| Number of rack unit | 2U |
| Battery type | Lead-acid battery |
| Provided equipment | Installation guide, Rack mounting brackets, User manual |
| Range of product | Smart-UPS Battery Systems |
| Number of battery free slots | 0 |
| Number of battery filled slots | 2 |
| Device mounting | Stand alone battery stack |
| Battery voltage | 48 V |
| Additional information | Replace all batteries in operation together (UPS internal and external batteries) all-at-once |
| Number of battery replacement quantity | 2 |
| Replacement battery | RBC31 |
| Colour | Black |
| Height | 85 mm |
| Width | 432 mm |
| Depth | 483 mm |
| Net weight | 29.56 kg |
| Mounting mode | Rack-mounted |
| Battery capacity | 10 Ah |
| Ambient air temperature for operation | 0…40 °C |
| Operating altitude | 0...10000 ft |
| Relative humidity | 0…95 % non-condensing |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Storage Relative Humidity | 0…95 % non-condensing |
Packaging
| Package 1 | 1 PCE, 63 cm × 59.4 cm × 28.6 cm (L × W × H), 32.28 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SURT48RMXLBP: frequently asked questions
When can SURT48RMXLBP be shipped?
SURT48RMXLBP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SURT48RMXLBP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SURT48RMXLBP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SURT48RMXLBP, subject to availability and destination.
