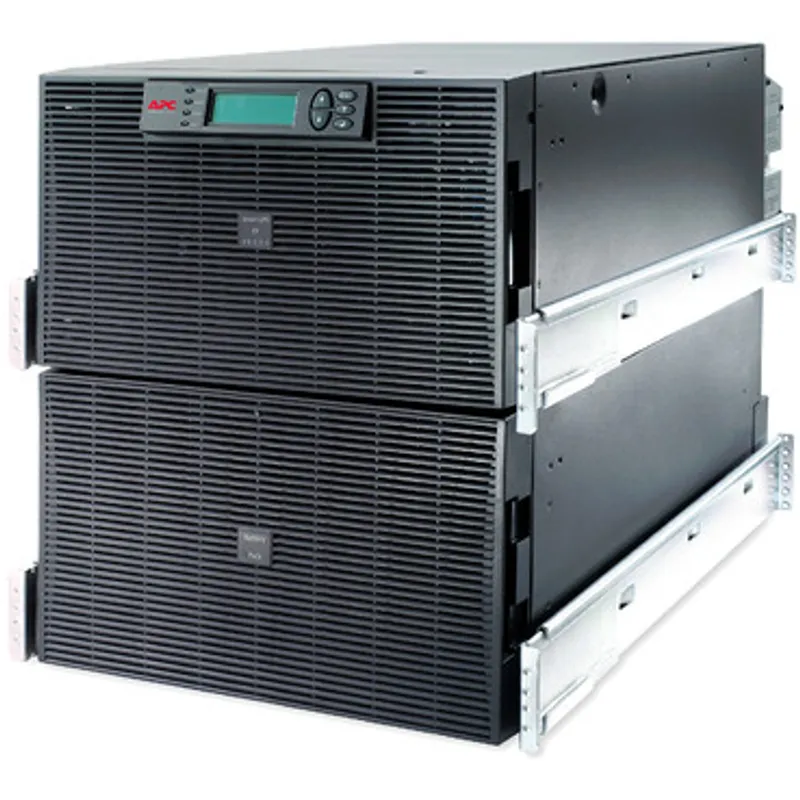

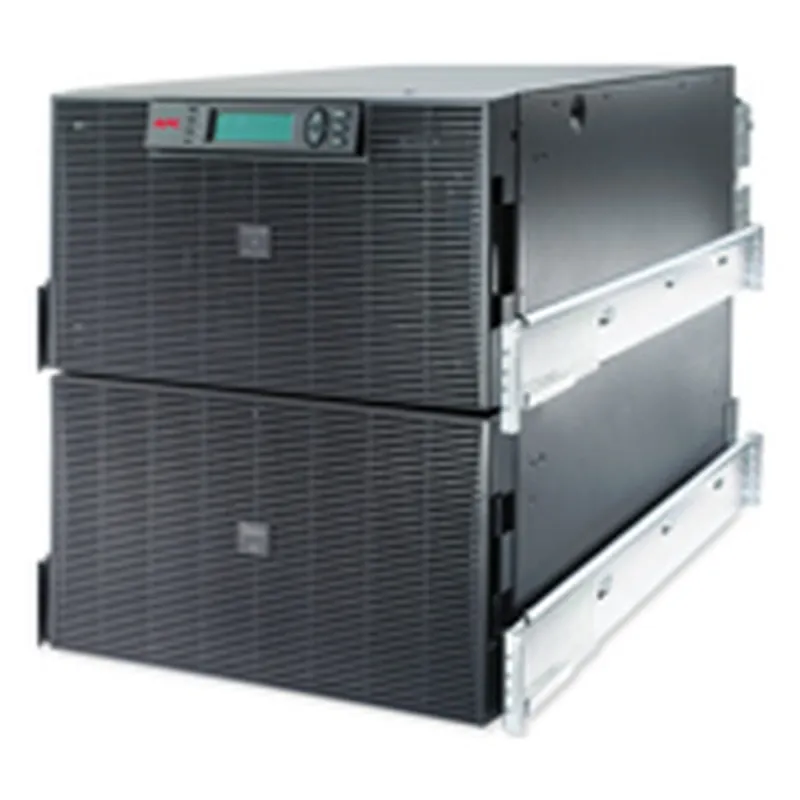

Schneider Electric SURT20KRMXLI

APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets

MPN
SURT20KRMXLI
EAN
0731304255710
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric SURT20KRMXLI?

The APC Smart-UPS RT is an online UPS with a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as IEC 60230 C19 and IEC Jumpers. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.

Specifications

Specifications

PresentationHigh density, double-conversion on-line power protection with scalable runtime.
Max. Capacity Used
Main Input Voltage220 V AC 1 phase, 230 V AC 1 phase, 240 V AC 1 phase, 380 V AC 3 phases, 400 V AC 3 phases, 415 V AC 3 phases
Input voltage220 V, 240 V
Maximum input current115 A
Input harmonic distortionLess than 5 % for full load
Cos phi0.98
Switching current capacity125 A
Input voltage limits160...280 V
Input current115 A (1 phase), 38.3 A per phase (3 phases)
Number of input connectors1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E)
Network frequency40...70 Hz auto-sensing
Output voltage220 V, 240 V
Rated power in W16000 W
rated power in VA20000 VA

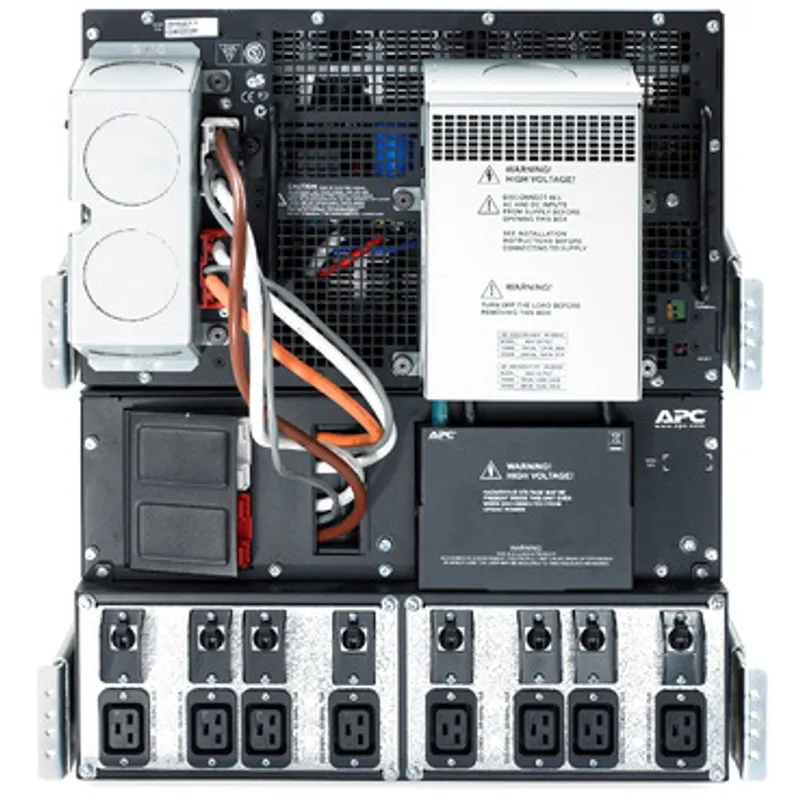

Output connection type2 IEC Jumpers, 8 IEC 60320 C19
Output connector typeHard wire 3-wire (H N + E) for 1 zone(s), Hard wire 5-wire (3P + N + E) for 1 zone(s)
Bypass typeBuilt-in static bypass, Internal bypass (automatic and manual), Optional external bypass
Crest factor3 : 1
Harmonic distortionLess than 5 %
Maximum configurable power in VA20000 VA
Maximum configurable power in W16000 W
Output overload operation60 seconds at 125% and 30 seconds at 150%
UPS typeDouble conversion online
Wave typeSine wave
EfficiencyView Efficiency Graph
Output frequency50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
Additional informationConfigurable for 400 or 415 V 3 Phase nominal output voltage

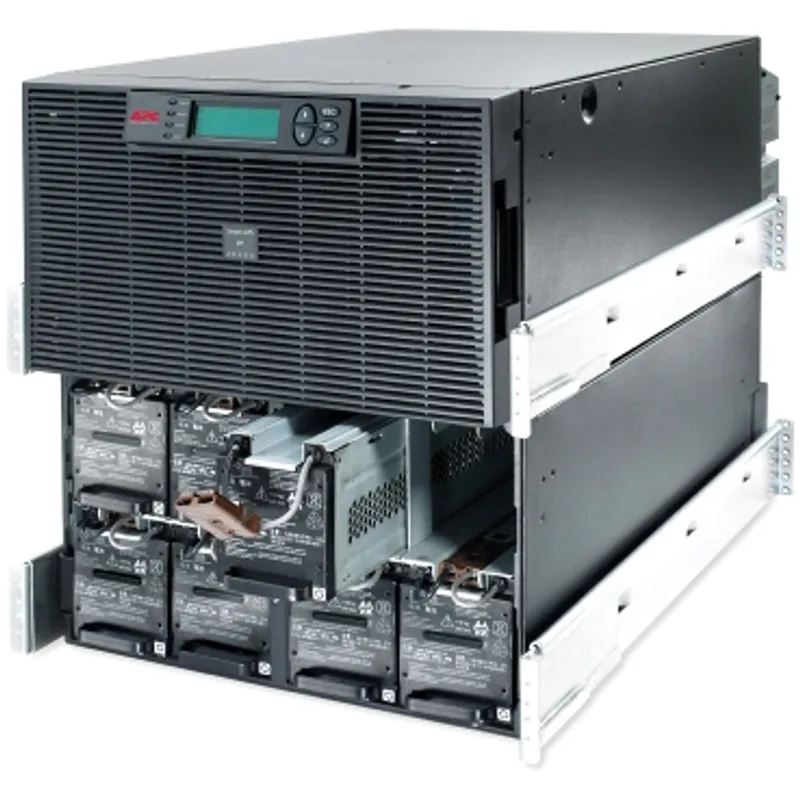

Battery typeLead-acid battery
Emergency power offYes
Free slots0
Preinstalled deviceNetwork management card 2 with environmental monitoring
UPS connectivitySerial port, Pre-installed network management card 3
Noise suppressionFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit12U
ColourBlack
Height533 mm
Width432 mm
Depth773 mm
Net weight247.73 kg
Mounting locationFront
Mounting preferenceLower
Mounting modeRack-mounted with included kit
Two post mountable0
USB compatibleNo
Provided equipmentCD with software, Rack mounting support rails, Smart UPS signalling RS-232 cable, User manual, Web/SNMP management card
Number of power module filled slots0
Number of power module free slots0
RedundantNo
Range of productSmart-UPS On-Line
Product or component typeUninterruptible power supply (UPS)
Product certificationsBSMI, VDE
StandardsEN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation0…40 °C
Ambient air temperature for storage-15…45 °C
Storage altitude0…15240 m
IP degree of protectionIP20
Relative humidity0…95 % non-condensing
Storage Relative Humidity0…95 % non-condensing
Acoustic level59 dBA
Heat dissipation3770 Btu/h
Operating altitude0...10000 ft
Run TimeView Runtime Graph
Battery voltage+/- 192 V (split battery referenced to neutral)
Extended runtime1
Number of battery filled slots4
Number of battery free slots0
Battery recharge time2.5 h
Number of battery replacement quantity4
Battery life3…5 year(s)
Replacement batteryAPCRBC140
Discharge battery voltage+/- 154 V
Battery charger power1530 W rated

Packaging

Package 11 PCE, 100.3 cm × 61 cm × 99 cm (L × W × H), 314.09 kg
Package 22 PAL, 120 cm × 100 cm × 111 cm (L × W × H), 626.864 kg
