Schneider Electric SSRHP07
Heat sink, Harmony Solid State Relays, thermal resistance 0.7 degree C W
- MPN
- SSRHP07
- EAN
- 3606485442198
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original SSRHP07 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSRHP07?
Schneider Electric heat sink, Harmony Solid State Relays, thermal resistance 0.7 degree C W, manufacturer part number SSRHP07. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Product or component type | Heat sink |
| Product compatibility | 1 solid state relay SSR on panel |
| Thermal resistance | 0.7 °C/W |
| Mounting support | Panel |
| Material | Aluminium |
| Surface finish | Black anodized |
| Surface and useful surface | 1640 cm² |
| Number of mounting holes | 6 with UNC 8-32 thread |
| tightening torque | 1.7…2.2 N.m |
| Sale per indivisible quantity | 1 |

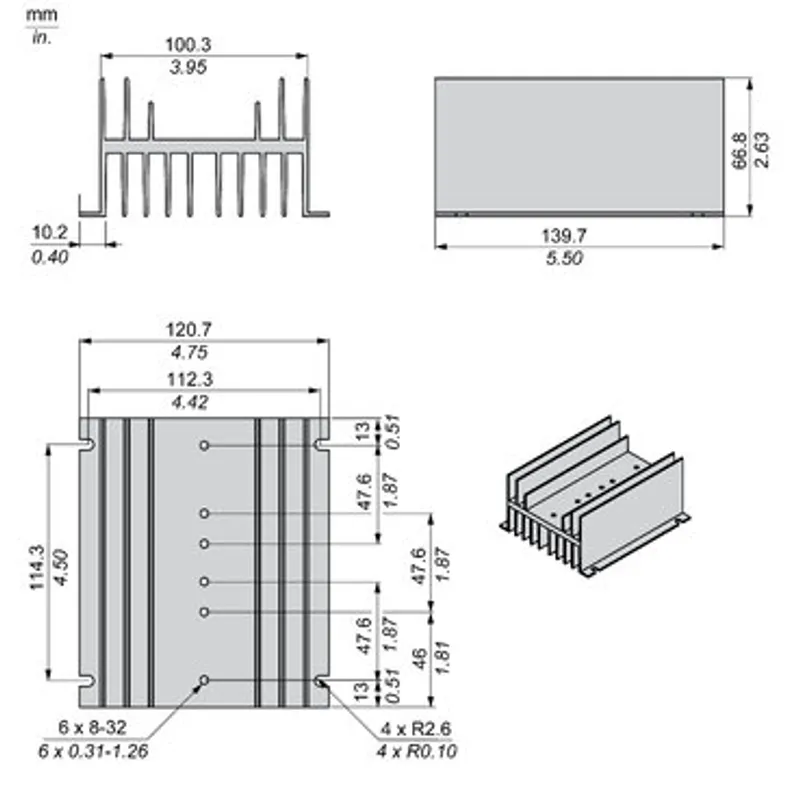

| Width | 139.7 mm |
| Height | 120.7 mm |
| Depth | 66.8 mm |
| Net weight | 0.526 g |
Packaging
| Package 1 | 1 PCE, 16.000 cm × 13.200 cm × 7.700 cm (L × W × H), 674.000 g |
| Package 2 | 12 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.663 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SSRHP07: frequently asked questions
Can I still buy the SSRHP07 now that it is discontinued?
Yes. Schneider Electric has discontinued the SSRHP07, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can SSRHP07 be shipped?
SSRHP07 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SSRHP07 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SSRHP07 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SSRHP07, subject to availability and destination.
