Schneider Electric SSRHP25
Heat sink, Harmony Solid State Relays, thermal resistance 2.5 degree C W
- MPN
- SSRHP25
- EAN
- 3606480580208
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSRHP25?

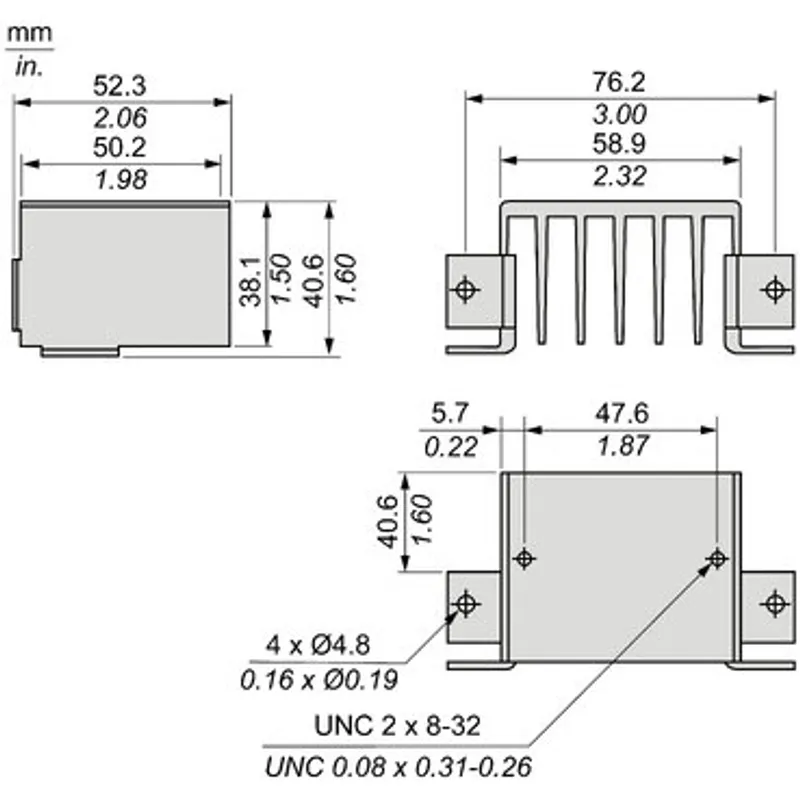

SSRHP25 is a Harmony Solid State Relays heat sink designed to optimize heat dissipation and support reliable operation of compatible solid state relays in industrial applications. Manufactured from durable aluminium with a black anodized finish, the heat sink provides a thermal resistance of 2.5 °C/W. This helps to manage relay operating temperatures and improve system performance. Designed for panel mounting, it offers a useful surface area of 336 cm² for efficient heat transfer. With compact dimensions of 58.9 mm width, 40.6 mm height, and 52.3 mm depth. SSRHP25 is a space-efficient thermal management accessory suitable for control panels and automation systems requiring enhanced solid state relay cooling.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Product or component type | Heat sink |
| Product compatibility | 1 solid state relay SSR on panel |
| Thermal resistance | 2.5 °C/W |
| Mounting support | Panel |
| Material | Aluminium |
| Surface finish | Black anodized |
| Surface and useful surface | 336 cm² |
| Number of mounting holes | 2 with UNC 8-32 thread |
| tightening torque | 1.7…2.2 N.m |
| Sale per indivisible quantity | 1 |
| Width | 58.9 mm |
| Height | 40.6 mm |
| Depth | 52.3 mm |
| Net weight | 0.100 kg |
Packaging
| Package 1 | 1 PCE, 10.5 cm × 7.2 cm × 6.0 cm (L × W × H), 180.0 g |
| Package 2 | 60 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 10.8 kg |
