Schneider Electric SSRHD10
Heat sink, Harmony Solid State Relays, DIN rail mount, thermal resistance 1 degree C W
- MPN
- SSRHD10
- EAN
- 3606480580246
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

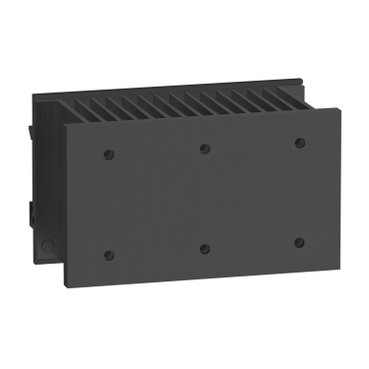

What is the Schneider Electric SSRHD10?
SSRHD10 is a Harmony Solid State Relays heat sink designed to improve heat dissipation and support reliable operation of solid state relays in industrial applications. Manufactured from black anodized aluminum, the heat sink provides a low thermal resistance of 1 °C/W. Efficiently manage heat generated during relay operation. Designed for DIN rail mounting, it offers easy installation within control panels and automation systems. With a useful surface area of 1425 cm² and robust construction, the SSRHD10 helps optimize relay performance, extend equipment life, and maintain reliable operation.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Product or component type | Heat sink |
| Product compatibility | 1 solid state relay SSR on panel |
| Thermal resistance | 1 °C/W |
| Mounting support | DIN rail |
| Material | Aluminium |
| Surface finish | Black anodized |
| Surface and useful surface | 1425 cm² |
| Number of mounting holes | 6 with UNC 8-32 thread |
| tightening torque | 1.7…2.2 N.m |
| Sale per indivisible quantity | 1 |

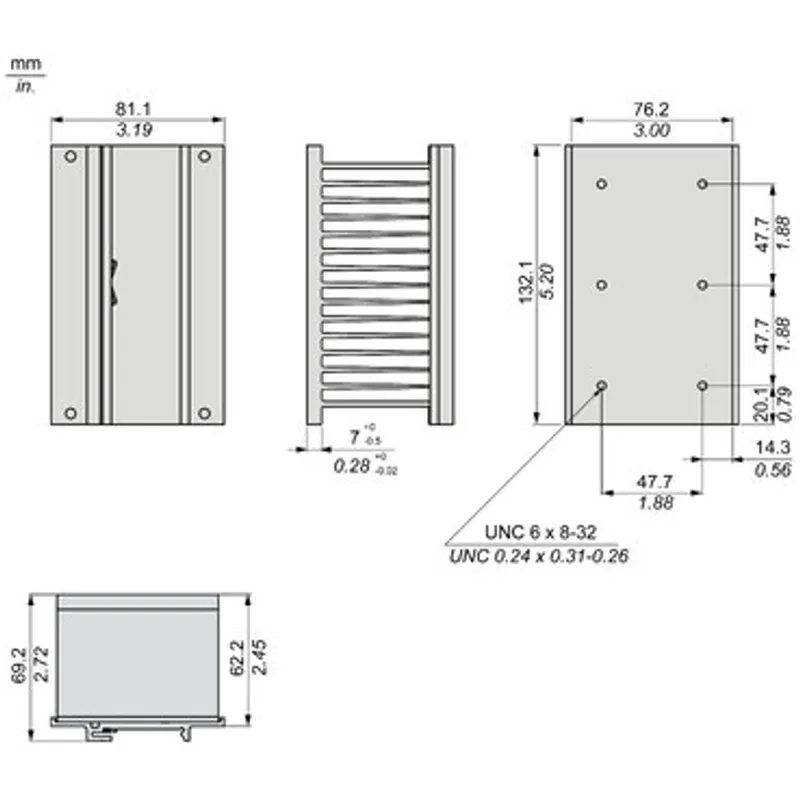

| Width | 76.2 mm |
| Height | 132.1 mm |
| Depth | 60.2 mm |
| Net weight | 0.630 kg |
Packaging
| Package 1 | 1 PCE, 15.500 cm × 9.200 cm × 7.500 cm (L × W × H), 618.000 g |
| Package 2 | 8 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.530 kg |
