Schneider Electric SSRHP02
Heat sink, Harmony Solid State Relays, thermal resistance 0.2 degree C W
- MPN
- SSRHP02
- EAN
- 3606480580253
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSRHP02?
SSRHP02 is a Harmony Solid State Relays heat sink designed to provide efficient thermal management for high-power solid state relay applications. Manufactured from black anodized aluminum, it offers excellent heat dissipation with a low thermal resistance of 0.2 °C/W. Designed for panel mounting, the heat sink features a large effective cooling surface area of 6823 cm². It is suitable for demanding industrial environments and high-current switching applications. Its robust construction, compact profile, and optimized thermal performance help extend relay life and ensure consistent operation in industrial control panels and automation systems.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Product or component type | Heat sink |
| Product compatibility | 1 solid state relay SSR on panel |
| Thermal resistance | 0.2 °C/W |
| Mounting support | Panel |
| Material | Aluminium |
| Surface finish | Black anodized |
| Surface and useful surface | 6823 cm² |

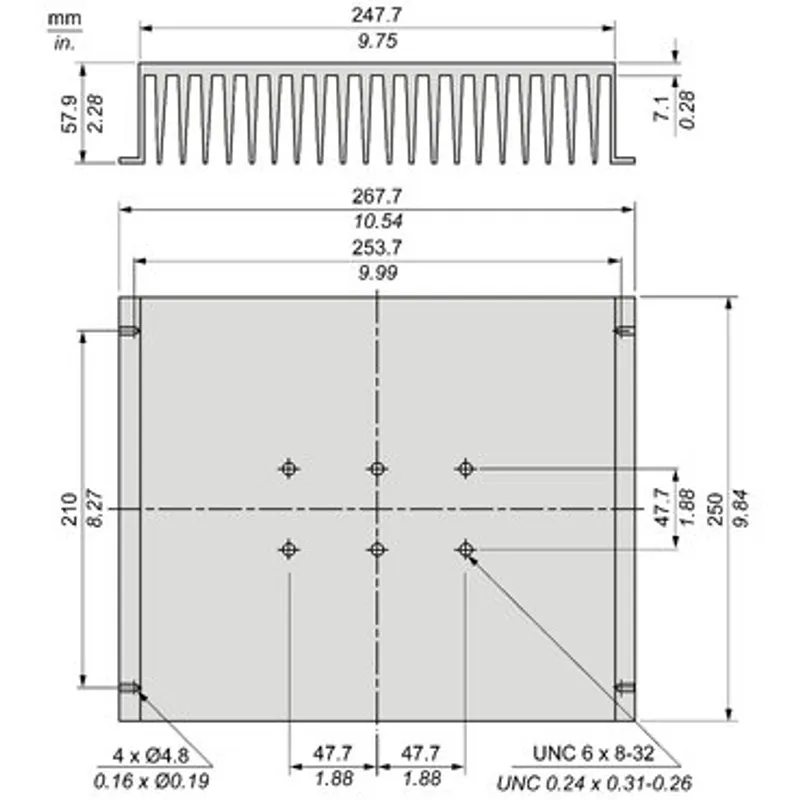

| Number of mounting holes | 6 with UNC 8-32 thread |
| tightening torque | 1.7…2.2 N.m |
| Sale per indivisible quantity | 1 |
| Width | 247.7 mm |
| Height | 250 mm |
| Depth | 57.9 mm |
| Net weight | 2.592 kg |
Packaging
| Package 1 | 1 PCE, 29.000 cm × 26.000 cm × 6.800 cm (L × W × H), 2.782 kg |
| Package 2 | 4 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 11.702 kg |
