Schneider Electric SSRHP05
Solid State Relay, Harmony Relay, heat sink, panel mount, thermal resistance 0.5°C per watt
- MPN
- SSRHP05
- EAN
- 3606480580222
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSRHP05?
This product is part of the Harmony Solid State Relays, an offer of protection accessories for panel mount solid state relays. This heat sink is suitable for Harmony solid state relays. It features 0.5°C/W thermal resistance, 4406cm² surface and useful surface. It is made of aluminum with black anodized finish. Its dimensions are 152.4mm (width) x 88.9mm (depth) x 152.4mm (height). It weighs 1.44kg. It is suitable for packaging machines, heating control, injection molding, HVAC, textile machines and medical equipment applications. This heat sink is compatible with 1 solid state relay on panel. It supports panel mount. Harmony Solid State Relays are the complete solution for 1 phase and 3 phase, slim, modular DIN rail and panel mount offer. SSR relays offer slim interfaces, modular DIN rail and panel mount relays. A complete, innovative and compact solution for industrial applications.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Product or component type | Heat sink |
| Product compatibility | 1 solid state relay SSR on panel |
| Thermal resistance | 0.5 °C/W |
| Mounting support | Panel |
| Material | Aluminium |
| Surface finish | Black anodized |
| Surface and useful surface | 4406 cm² |

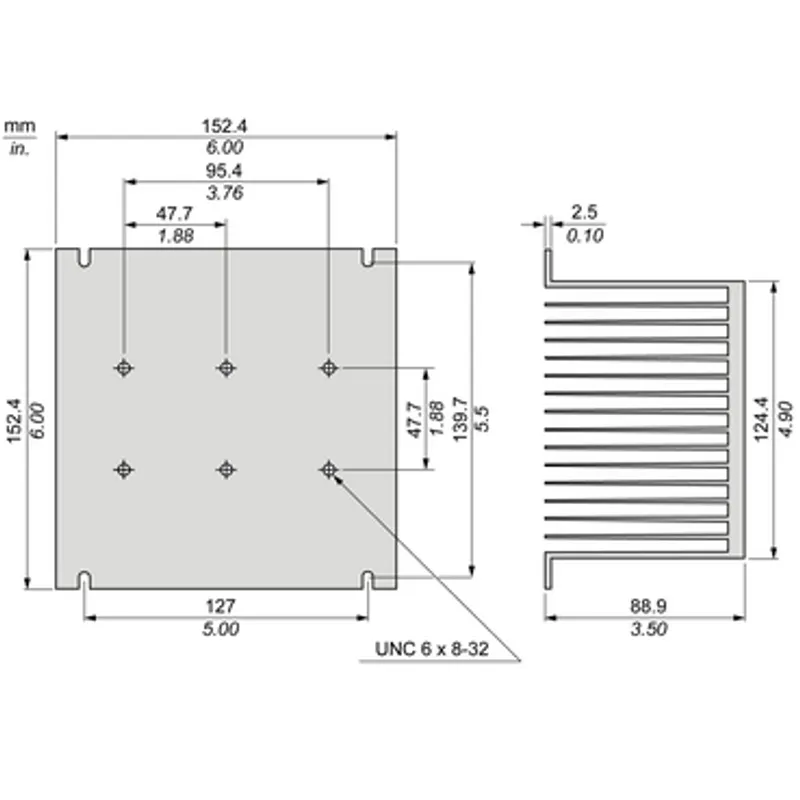

| Number of mounting holes | 6 with UNC 8-32 thread |
| tightening torque | 1.7…2.2 N.m |
| Sale per indivisible quantity | 1 |
| Width | 152.4 mm |
| Height | 152.4 mm |
| Depth | 88.9 mm |
| Net weight | 1.440 kg |
Packaging
| Package 1 | 1 PCE, 17.500 cm × 16.400 cm × 10.000 cm (L × W × H), 1.559 kg |
| Package 2 | 6 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 10.070 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SSRHP05: frequently asked questions
When can SSRHP05 be shipped?
SSRHP05 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SSRHP05 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SSRHP05 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SSRHP05, subject to availability and destination.
