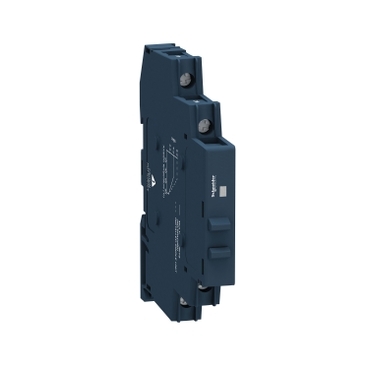

Schneider Electric SSM1A16BDR
Single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, random swtching, input 4 to 32V DC, output 24 to 280V AC
- MPN
- SSM1A16BDR
- EAN
- 3606480579417
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSM1A16BDR?

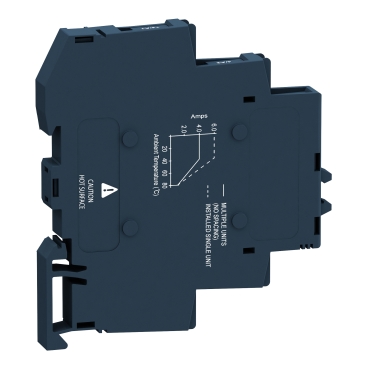

This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Device short name | SSM |
| Product or component type | Modular DIN rail relay |
| Number of channels | 1 |
| Number of phases | 1 phase |
| Output switching mode | Random voltage switching |
| Product configuration type | Relay configuration |
| Mounting support | Symmetrical DIN rail |
| [In] rated current | 6 A |
| Output voltage | 24...280 V AC |
| [Uc] control circuit voltage | 4...32 V DC |
| Tightening torque | 0.5...0.8 N.m for input, 0.5...0.8 N.m for output |
| Connections - terminals | Screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input, Screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output |
| maximum capacitance | 10 pF for input/output |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Local signalling | LED (green) for input status |
| Minimum switching voltage | 4 V DC turn-on |
| Maximum switching voltage | 1 V DC turn-off |
| input current | 8…11 mA |
| Solid state output type | SCR output, Random voltage switching |
| Load current | 0.15…6 A |
| transient overvoltage | 600 V |
| Surge current | 285 A for 16.6 ms, 300 A for 20 ms |
| Maximum voltage drop | <1.3 V on-state |
| Motor power hp | 0.16 hp 40 °C 240 V AC |
| Maximum I²t for fusing | 410 A².s for 10 ms at 50 Hz, 375 A².s for 8.33 ms at 60 Hz |
| Maximum leakage current | 0.1 mA off-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Response time | 0.5 cycle (turn-off), 0.1 ms (turn-on) |
| power factor | 0.5 (with maximum load) |
| Overvoltage category | III |
| Width | 11 mm |
| Height | 90.3 mm |
| test button | Without test button |
| Depth | 83.7 mm |
| Net weight | 0.05 kg |
| Flame retardance | V0 conforming to UL 94 |
| Dielectric strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| Pollution degree | 2 |
| Standards | IEC 62314, IEC 60950-1, IEC 61000 |
| Product certifications | UL, CSA |
| Marking | CE |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -30…80 °C |
| Ambient air temperature for storage | -30…100 °C |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 9.000 cm × 2.000 cm (L × W × H), 65.000 g |
| Package 2 | 96 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 6.717 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SSM1A16BDR: frequently asked questions
When can SSM1A16BDR be shipped?
SSM1A16BDR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SSM1A16BDR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SSM1A16BDR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SSM1A16BDR, subject to availability and destination.
