Schneider Electric SSL1D03JDPR
Pre assembled relay, Harmony Solid State Relays , 3.5A, DC switching, spring sockets, input 4 to 12V DC, output 1 to 24V DC
- MPN
- SSL1D03JDPR
- EAN
- 3606489563011
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSL1D03JDPR?

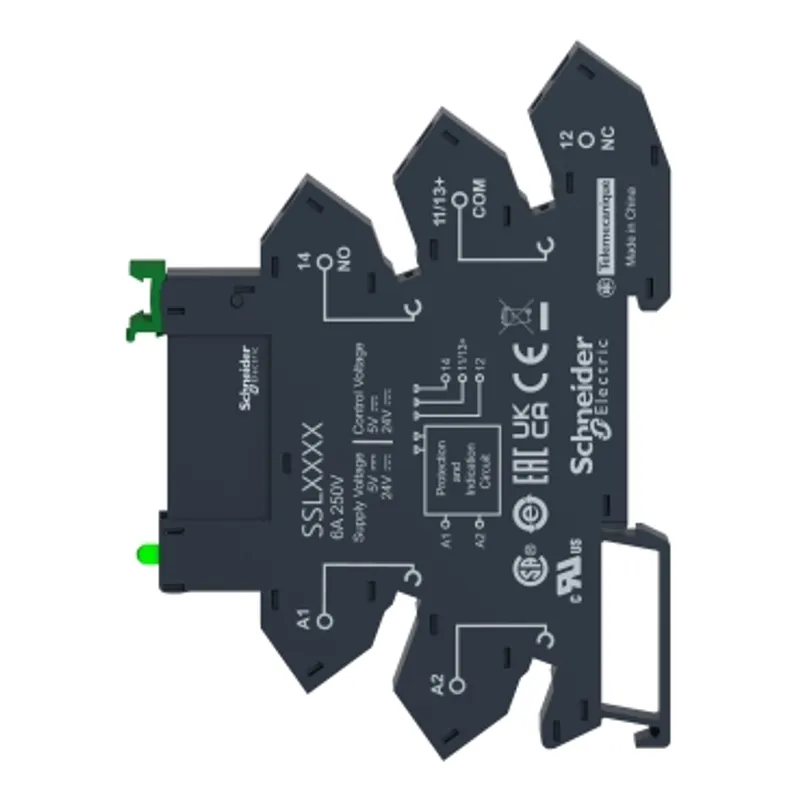

This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 3.5A DC switching slim relay with 4Vdc to 12Vdc input and 1Vdc to 24Vdc output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by spring terminal type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Device short name | SSL |
| Network number of phases | 1 phase |
| [Uc] control circuit voltage | 4...12 V DC |
| Connections - terminals | Flexible cable with cable end,clamping capacity: 0.2...1.5 mm² (AWG 24...AWG 16), Solid cable with cable end,clamping capacity: 0.2...1.5 mm² (AWG 24...AWG 16) |
| Output switching mode | DC switching |
| Mounting support | Spring socket |
| [In] rated current | 3.5 A |
| Output voltage | 1...24 V DC |
| CLAMPING FORCE | 10...40 N.m |
| Capacitance unbalance | 1.5 pF input/output |
| Minimum switching voltage | 4 V DC turn-on |
| Maximum switching voltage | 1 V DC turn-off |
| Input impedance | 500 Ohm |
| Solid state output type | Mosfet output, DC switching |
| Load current | 0.001…3.5 A |
| Transient Overvoltage | 30 V DC |
| Surge current | 9 A for 10 ms |
| Maximum voltage drop | <0.5 V on-state |
| Maximum leakage current | 0.001 mA off-state |
| Response time | 0.12 ms (turn-off), 0.1 ms (turn-on) |
| Overvoltage category | III |

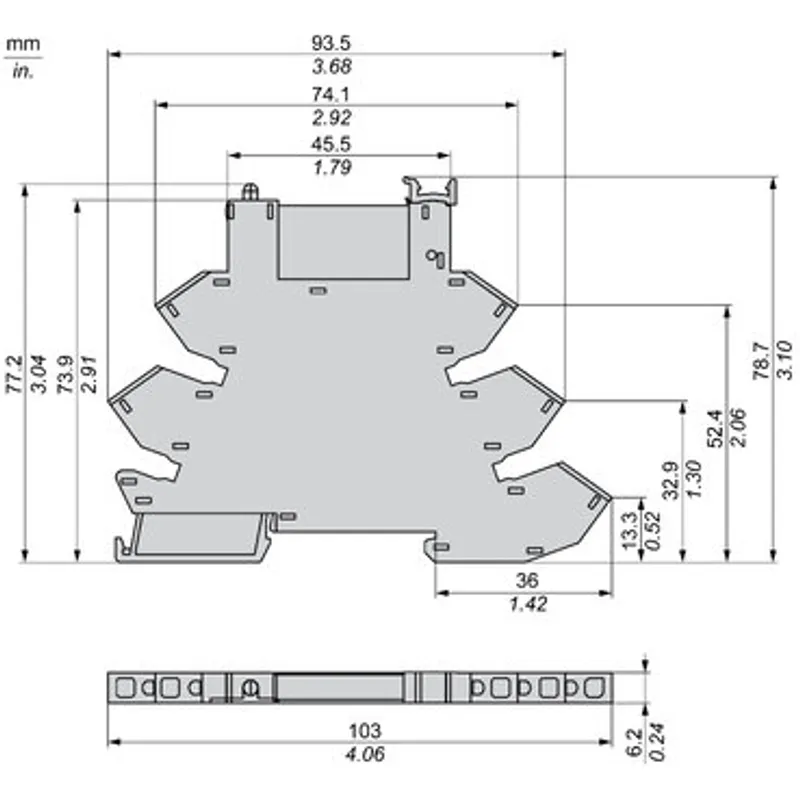

| Width | 6.2 mm |
| Height | 104.6 mm |
| Depth | 79.5 mm |
| Net weight | 0.0285 kg |
| Device presentation | Complete product |
| Flame retardance | V0 conforming to UL 94 |
| Dielectric strength | 2500 V for input/output |
| Pollution degree | 2 |
| Standards | IEC 60950-1, IEC 61000, IEC 62314, IEC 61984, EN 61984 |
| Product certifications | UL, CSA, CE, UL 508, CSA22.2 No. 14-10, GOST |
| Marking | CURus, CSA, CE, EAC |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -20…85 °C |
Packaging
| Package 1 | 1 PCE, 7.900 cm × 0.625 cm × 10.040 cm (L × W × H), 27.000 g |
| Package 2 | 30 BB1, 20.000 cm × 11.000 cm × 9.300 cm (L × W × H), 882.000 g |
| Package 3 | 60 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.892 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SSL1D03JDPR: frequently asked questions
When can SSL1D03JDPR be shipped?
SSL1D03JDPR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SSL1D03JDPR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SSL1D03JDPR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SSL1D03JDPR, subject to availability and destination.
