3-phase control relay, Harmony Control Relays, 8A, 2CO, overfrequency and underfrequency, 208…480V AC
MPN: RMNF22TB30 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Harmony Control Relays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.13 kg |
Shipping & availability
When can RMNF22TB30 be shipped?
RMNF22TB30 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RMNF22TB30 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RMNF22TB30 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RMNF22TB30, subject to availability and destination.

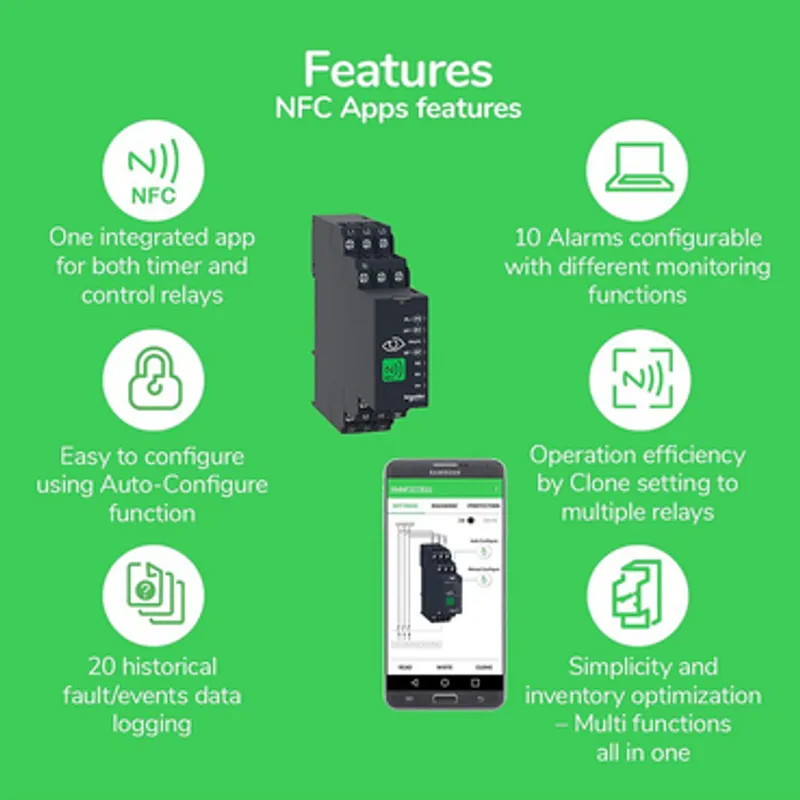

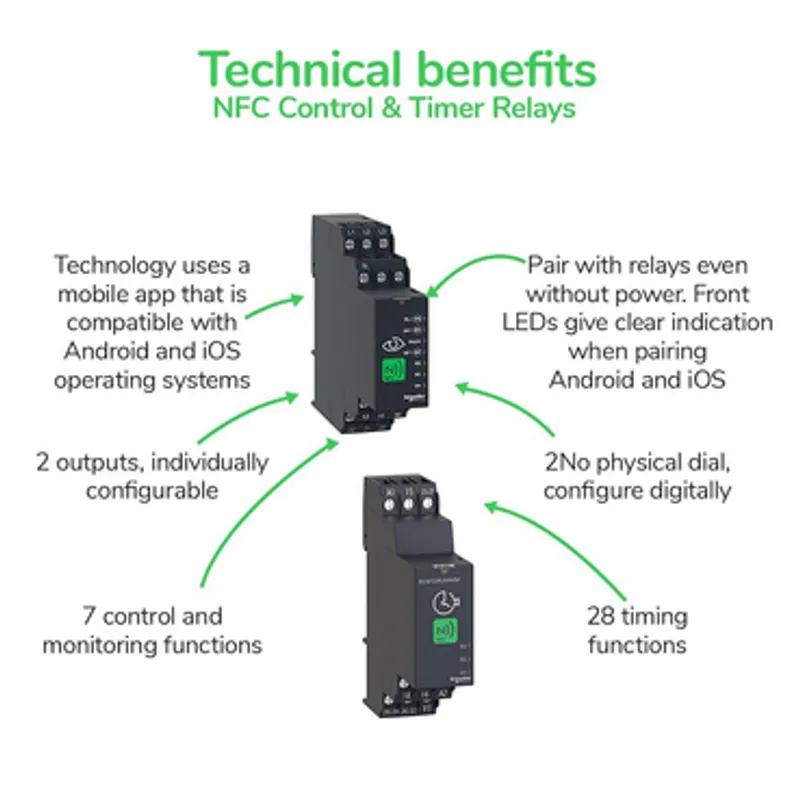

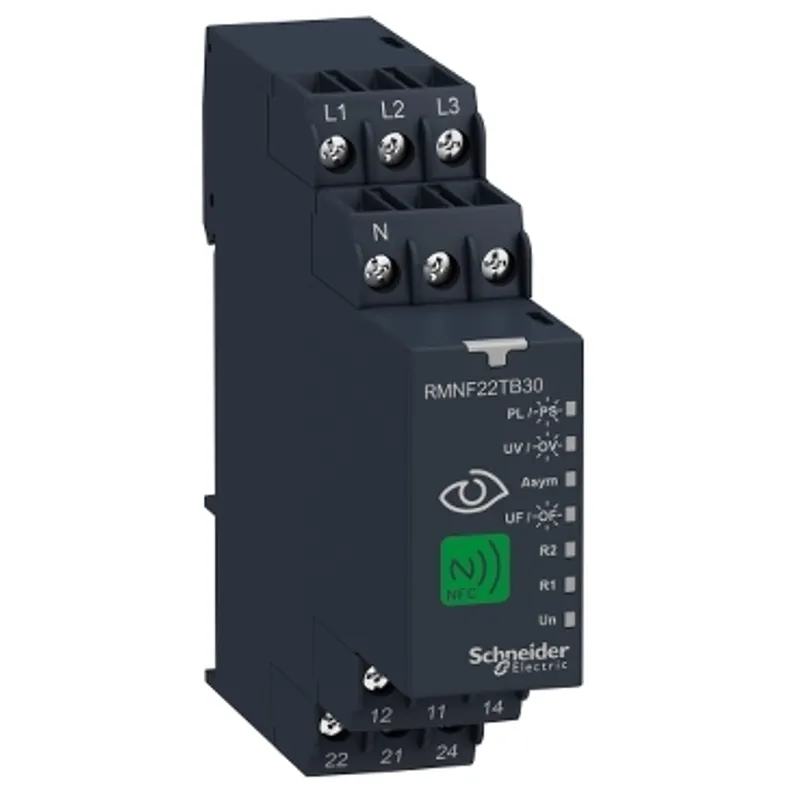

This 3-phase control relay belongs to the Schneider Electric Harmony Control relays range. This 3-phase control relay is integrated with NFC technology which brings in digital operation instead of analog operation. This is a 8A multifunction 3-phase control relay which monitors 3-phase or 3-phase with Neutral network and has an adjustable time delay of 0.1s to 60min. With Harmony NFC App, different alarms can be combined using AND, OR and NOT logic to form unique monitoring combinations for the two relay outputs which are individually configurable. NFC 3-phase control relay is a single reference supporting 7 functions namely Phase loss, Phase sequence, Asymmetry, Undervoltage, Overvoltage, Under-frequency, and Over-frequency. The 3-phase control relay is IP20 (terminals), IP40 (housing), and IP40(front panel) protected. Furthermore, the 4 digit password enhances security by preventing unauthorized change of settings. This RMNF22 dimensions are 22.5mm (width) x 90mm (height) x 99mm (depth) and weighs 0.125Kg. It conforms to international standard EN/IEC 60255-1 and certifications like UL, CSA, CE, CCC, EAC, and RCM. It is sold as a single unit. Monitoring and testing are now intuitive as exact fault conditions can be identified through front LEDs and analyze data with Harmony NFC App. This saves time and boosts efficiency.
Specifications
Specifications

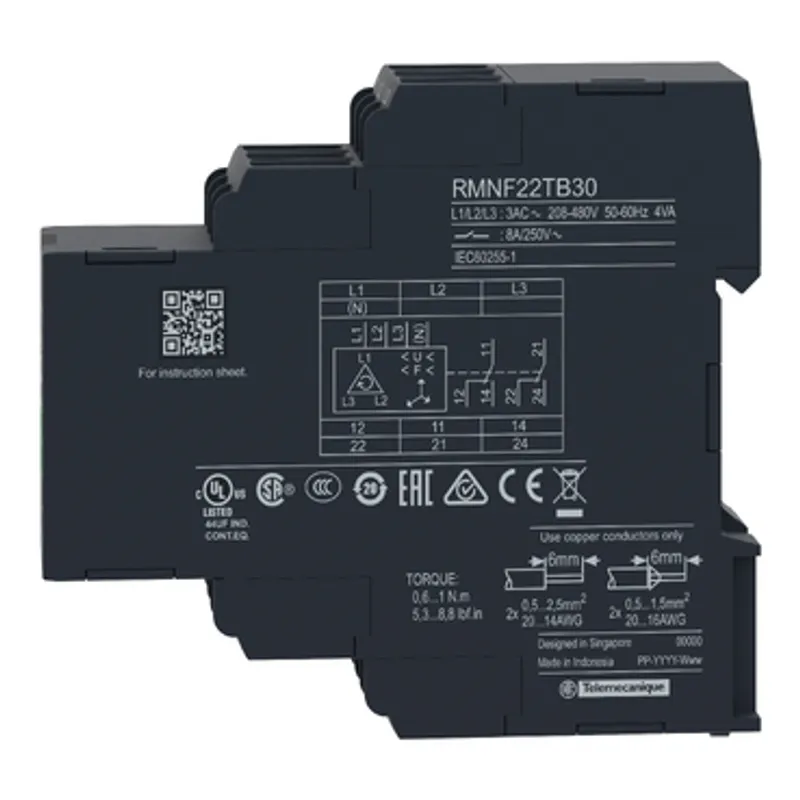

| Range of product | Harmony Control Relays |
| Relay type | Control relay |
| Product or component type | NFC control relay |
| Network number of phases | 3 phases |
| Relay name | RMNF22 |
| Relay monitored parameters | Phase sequence, Phase failure detection, Overvoltage detection, Undervoltage detection, Overfrequency and underfrequency, Asymmetry |
| App for product | Ecostruxure Industrial Device (downloadable from Google Play store or Apple Store) |
| Product compatibility | NFC enabled mobile device |
| Time delay type | Adjustable 0.1 s...1 min Tt- time delay upon fault |
| Switching capacity in VA | 2000 VA |
| NFC operating frequency | 13.56 MHz |
| Maximum RF power transmitted | 0.0002 mW |
| Reset time | 1500 ms at maximum voltage |
| Maximum switching voltage | 250 V AC |
| Minimum switching current | 100 mA at 6 V |
| Maximum switching current | 8 A AC |
| Supply voltage limits | 166.4…576 V AC line to line, 96…332.4 V AC line to neutral |
| Power consumption in VA | 4 VA at 480 V AC 60 Hz |
| On-load factor | 100 % |
| supply voltage frequency | 50...60 Hz +/- 10 % |
| Output contacts | 2 C/O |
| Measurement range | 208...480 V AC |
| Setting accuracy of the switching threshold | +/- (1.5 % + 1 V) |
| Setting accuracy of time delay | +/- 3 % for 10 s...60 min time delay range, +/- 300 ms for 0...10 s time delay range |
| Hysteresis | 3 % of fixed for phase failure detection |
| Alarm threshold | 166...576 V adjustable overvoltage and undervoltage detection (line to line), 96...332 V adjustable overvoltage and undervoltage detection (line to neutral), 5...150 V adjustable asymmetry, 45...66 Hz adjustable overfrequency or underfrequency |
| Run-up delay at power-up max | 650 ms |
| Maximum measuring cycle | 150 ms measurement cycle as true rms value |
| Threshold adjustment voltage | 2...20 % of Un selected |
| Adjustment of asymmetry threshold | 2...20 % of Un selected |
| Repeat accuracy | +/- 0.5 % for input circuit, +/- 3 % for time delay |
| Measurement error | < 0.05 %/Hz with frequency variation, < 0.05 %/°C with temperature variation |
| Response time | <= 300 ms |
| Insulation resistance | > 100 MOhm at 500 V DC conforming to IEC 60255-27 |
| [Ui] rated insulation voltage | 400 V |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Dielectric test voltage | 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27 |
| Mounting position | Any position |
| Connections - terminals | Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end, Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1, 0.6…1.0 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Local signalling | LED Un: (steady), green for power ON, LED R1: (steady), amber for relay energised, LED R1: (blinking), amber for timing in progress, LED R2: (steady), amber for relay energised, LED R2: (blinking), amber for timing in progress, LED PL: (steady), red for alarm phase failure triggered, LED PS: (blinking), red for alarm phase sequence failure triggered, LED UV: (steady), red for alarm undervoltage failure triggered, LED OV: (blinking), red for alarm overvoltage failure triggered, LED UF: (steady), red for alarm underfrequency failure triggered, LED OF: (blinking), red for alarm overfrequency failure triggered, LED ASYM: (steady), red for alarm asymmentry failure triggered |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| Utilisation category | AC-15 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, AC-1 conforming to IEC 60947-4-1, DC-1 conforming to IEC 60947-4-1 |
| [Ith] conventional free air thermal current | 8 A |
| [Un] rated nominal voltage | 208...480 V AC 50/60 Hz, non self-powered, 120...277 V AC 50/60 Hz, non self-powered |
| Operating system | Androidversion >= V7.0, IOSversion >= V14.5 |
| Contacts material | Cadmium free |
| Control type | Without test button |

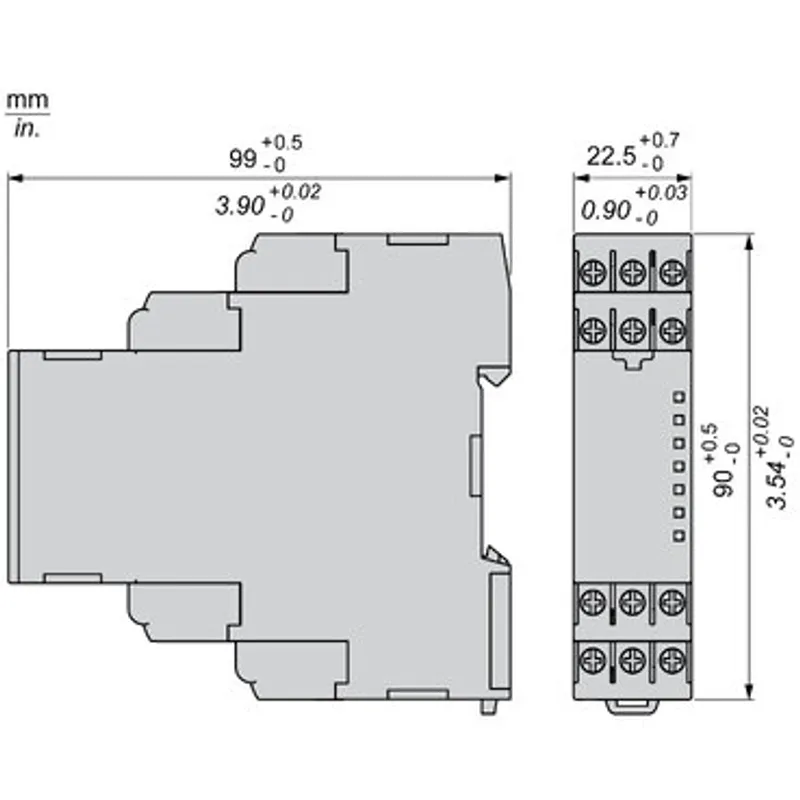

| Width | 22.5 mm |
| Height | 90 mm |
| Depth | 99 mm |
| Contacts type and composition | 2 C/O |
| Net weight | 0.125 kg |
| Immunity to microbreaks | 10 ms |
| Electromagnetic compatibility | Voltage dips and interruptions immunity test - test level: 70 % (25/30 cycles) conforming to IEC 61000-4-11, Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, Immunity for industrial environments conforming to IEC 61000-6-2, 1 MHz damped oscillating wave - test level: 2.5 kV CM, 1 kV DM criteria B conforming to IEC 61000-4-18, Voltage dips and interruptions immunity test - test level: 0 % (0.5...25 cycles) conforming to IEC 61000-4-11, Magnetic field at power frequency - test level: 30 A/m (continuous)-300 A/m (1-3 s) level 4 conforming to IEC 61000-4-8, Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1, Voltage dips and interruptions immunity test - test level: 40 % (10/12 cycles) conforming to IEC 61000-4-11, Voltage interruptions - test level: 0 % criteria C (250/300 cycles) conforming to IEC 61000-4-29, Electrical fast transient/burst immunity test - test level: 4 kV criteria B (direct) conforming to IEC 61000-4-4, Emission standard for industrial environments conforming to IEC 61000-6-4, Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, Conducted RF disturbances level 3 conforming to IEC 61000-4-6 |
| Standards | IEC 60255-1 |
| Product certifications | CE, UL, CSA, CCC, EAC, RCM |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…60 °C |
| Relative humidity | 93…97 % at 25…55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.075 mm (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6, 1 gn (f= 58.1…150 Hz) not in operation conforming to IEC 60068-2-6, 0.035 mm (f= 10…58.1 Hz) in operation conforming to IEC 60068-2-6, 0.5 gn (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27, 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1, 3 conforming to UL 508 |
| Overvoltage category | III conforming to IEC 60664-1, III conforming to UL 508 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 10.800 cm |
| Package 1 Weight | 138.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.578 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 576 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 98.000 kg |
| Warranty (in months) | 18 |
