Schneider Electric RMTC1UUBD
Signal Conditioner, Harmony Analog, 6.2mm, thermocouple
- MPN
- RMTC1UUBD
- EAN
- 3606487614166
- Category
- Harmony Analog
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric RMTC1UUBD?

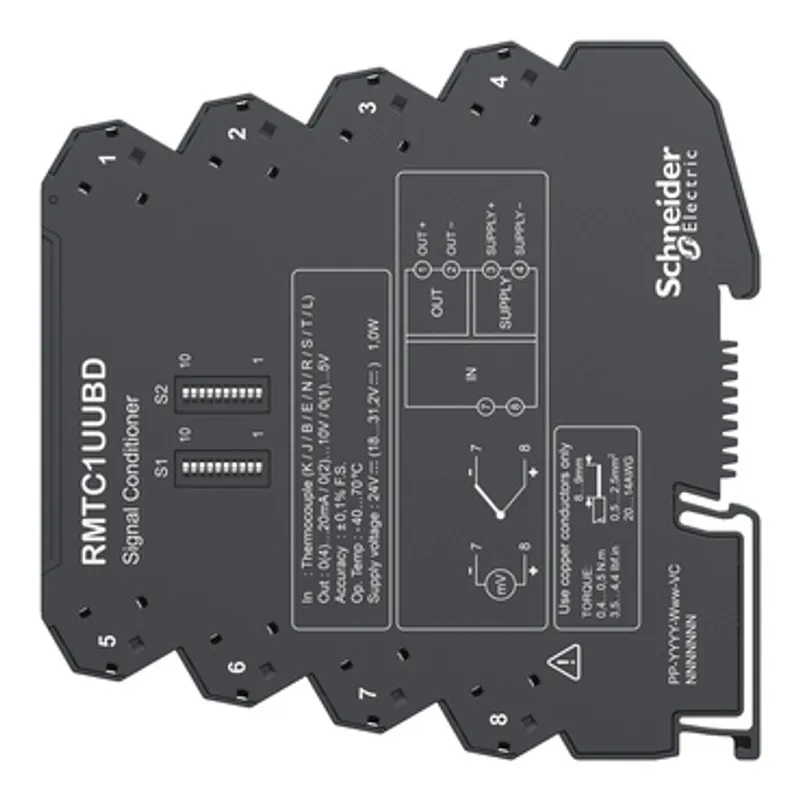

The RMTC1UUBD module is engineered to convert thermocouple measurement into an isolated analog signal ensuring reliable and smooth integration of process automation control. It supports a wide range of thermocouple types, including K, J, B, E, N, R, S, T, and L, offering exceptional adaptability for diverse temperature measurement needs. With a 6.2mm ultra-compact design, easy wiring access layout, and integrated diagnostic LEDs, RMTC1UUBD simplifies installation, commissioning, and troubleshooting, making it ideal for space-constrained panels and demanding industrial environments. With configurable DIP switches, users can easily set temperature ranges to suit specific requirements. Meets international standards and holds CE, UKCA marking, cULus, and DNV certifications.
Specifications
Specifications
| Range of product | Harmony Analog |
| Product or component type | Signal conditioner |
| Analogue input type | Thermocouple -200 …1800 °C |
| Analogue output type | Current 0...20 mA <= 550 Ohm, Current 4...20 mA <= 550 Ohm, Voltage 0...10 V >= 10 kOhm, Voltage 2...10 V >= 10 kOhm, Voltage 0...5 V >= 10 kOhm, Voltage 1...5 V >= 10 kOhm |
| Protection type | Reverse polarity protection on power supply, Overvoltage protection on output, Short-circuit protection on output |
| [Us] rated supply voltage | 24 V DC +30 %...-25 %, isolated |
| Current consumption | <= 40 mA for 24 V |
| Measurement error | +/- 0.1 % of full scale |
| Repeat accuracy | +/- 0.03 % |
| Clamping connection capacity | 20...14 AWG |
| tightening torque | 0.4…0.5 N.m, 0.4…0.5 N.m |
| Marking | CULus, DNV, CE, UKCA, WEEE, China RoHS |
| Surge withstand | 1 kV during 1.2/50 µs conforming to IEC 61000-4-5 |
| [Ui] rated insulation voltage | 300 V |
| Fixing mode | Clip-on (35 mm DIN rail) |
| Safety reliability data | MTTFd = 296.1 years, B10d = 273271 |
| Net weight | 0.07 kg |
| Temperature coefficient | < 100 ppm/°C |
| Wire stripping length | 8…9 mm |
| Status LED | 3 LEDs (green) PWR (Power Status), (red) high signal level, (red) low signal level |
| Overvoltage category | II |

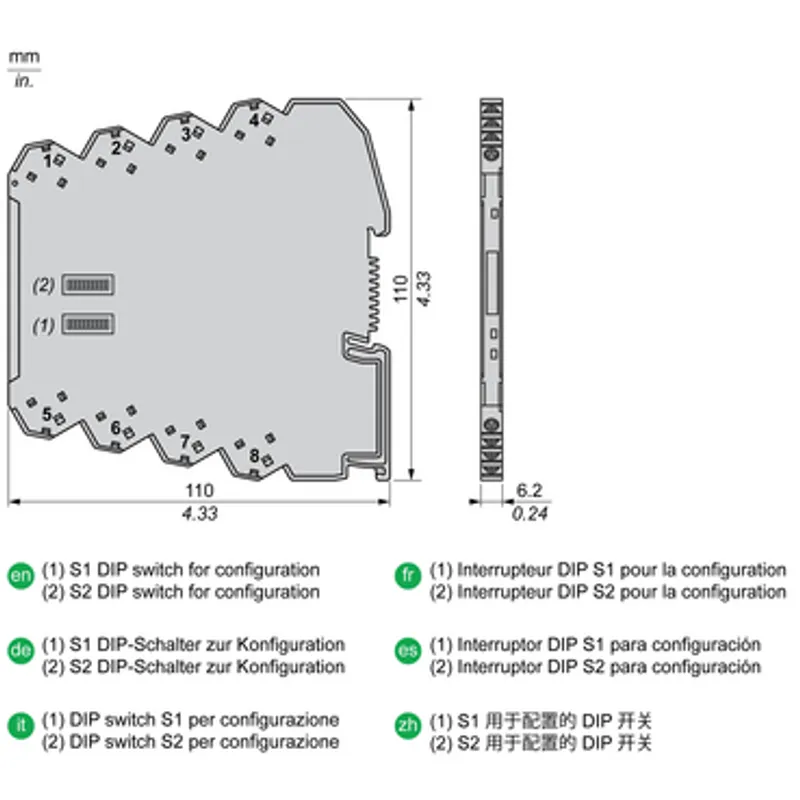

| Width | 6.2 mm |
| Height | 110 mm |
| Depth | 110 mm |
| Relative humidity | 5…95 % |
| Electromagnetic compatibility | Fast transient bursts - test level: 1 kV criteria A (I/O) conforming to IEC 61000-4-4, Fast transient bursts - test level: 2 kV criteria A (power lines) conforming to IEC 61000-4-4, Radiated RF field immunity test - test level: 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, Radiated RF field immunity test - test level: 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3, Conducted radio-frequency immunity test - test level: 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6, Magnetic field at power frequency - test level: 30 A/m criteria A conforming to IEC 61000-4-8 |
| Product certifications | cULus, DNV |
| IP degree of protection | IP20 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 6 kV (in contact) conforming to IEC 61000-4-2, 8 kV (in air) conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Operating altitude | 0...2000 m |
| Electromagnetic emission | Conducted emissions conforming to CISPR 11, Radiated emissions conforming to CISPR 11 |
| Dielectric strength | 3 kV AC between the inputs and the supply circuit, 3 kV AC between the outputs and the supply circuit, 3 kV AC between input and output |
Packaging
| Package 1 | 1 PCE, 12 cm × 11.8 cm × 2.2 cm (L × W × H), 110 g |
| Package 2 | 30 S02, 40 cm × 30 cm × 15 cm (L × W × H), 3.65 kg |
| Package 3 | 480 P06, 80 cm × 60 cm × 75 cm (L × W × H), 66.9 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
RMTC1UUBD: frequently asked questions
When can RMTC1UUBD be shipped?
RMTC1UUBD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RMTC1UUBD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RMTC1UUBD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RMTC1UUBD, subject to availability and destination.
