Schneider Electric RMCA1UUBD

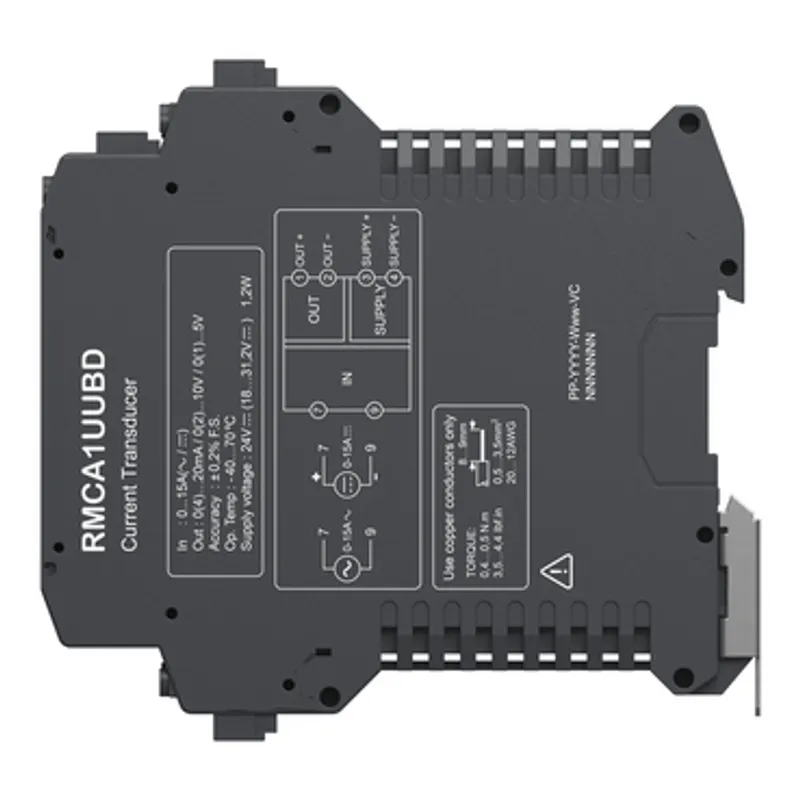

Current transducer, Harmony Analog, 22.5mm
- MPN
- RMCA1UUBD
- EAN
- 3606487614173
- Category
- Harmony Analog
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric RMCA1UUBD?
The RMCA1UUBD module is a transducer engineered to convert electrical current measurements into an isolated analog signals for seamless integration with electrical current measurement, monitoring and control. Supporting indirect measurement of AC/DC currents from 0…15 A, this module ensures accurate signal conversion to outputs such as 0(4)…20 mA, 0(2)…10 V, or 0(1)…5 V. With its 22.5mm compact design, easy wiring access layout, and integrated diagnostic LEDs, the RMCA1UUBD simplifies installation, commissioning, and troubleshooting, making it ideal for space-constrained panels and demanding industrial environments. Its configurable DIP switches allow flexible adjustment of current measurement ranges to suit diverse application needs. Meets international standards and holds CE, UKCA marking, cULus, and DNV certifications.
Specifications
Specifications
| Range of product | Harmony Analog |
| Product or component type | Current transducer |
| Analogue input type | Current 0...15 A |
| Analogue output type | Current 0...20 mA <= 550 Ohm, Current 4...20 mA <= 550 Ohm, Voltage 0...10 V >= 10 kOhm, Voltage 2...10 V >= 10 kOhm, Voltage 0...5 V >= 10 kOhm, Voltage 1...5 V >= 10 kOhm |
| Protection type | Reverse polarity protection on power supply, Overvoltage protection on output, Short-circuit protection on output |
| [Us] rated supply voltage | 24 V DC +30 %...-25 %, isolated |
| Current consumption | <= 50 mA for 24 V |
| Measurement error | +/- 0.2 % of full scale |
| Repeat accuracy | +/-0.06 % |
| Clamping connection capacity | 20...12 AWG |
| tightening torque | 0.4…0.5 N.m, 0.4…0.5 N.m |
| Marking | CULus, DNV, CE, UKCA, WEEE, China RoHS |
| Surge withstand | 1 kV during 1.2/50 µs conforming to IEC 61000-4-5 |
| [Ui] rated insulation voltage | 300 V, 600 V |
| Fixing mode | Clip-on (35 mm DIN rail) |
| Safety reliability data | MTTFd = 317.1 years, B10d = 292715 |
| Net weight | 0.10 kg |
| Temperature coefficient | < 150 ppm/°C |
| Wire stripping length | 8…9 mm |
| Status LED | 3 LEDs (green) PWR (Power Status), (red) high signal level, (red) low signal level |
| Overvoltage category | II |
| Width | 22.5 mm |
| Height | 107.5 mm |
| Depth | 113.6 mm |
| Relative humidity | 5…95 ‰ |
| Electromagnetic compatibility | Fast transient bursts - test level: 1 kV criteria A (I/O) conforming to IEC 61000-4-4, Fast transient bursts - test level: 2 kV criteria A (power lines) conforming to IEC 61000-4-4, Radiated RF field immunity test - test level: 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, Radiated RF field immunity test - test level: 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3, Conducted radio-frequency immunity test - test level: 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6, Magnetic field at power frequency - test level: 30 A/m criteria A conforming to IEC 61000-4-8 |
| Product certifications | cULus, DNV |
| IP degree of protection | IP20 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 6 kV (in contact) conforming to IEC 61000-4-2, 8 kV (in air) conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Operating altitude | 0...2000 m |
| Electromagnetic emission | Conducted emissions conforming to CISPR 11, Radiated emissions conforming to CISPR 11 |
| Dielectric strength | 5.4 kV AC between the inputs and the supply circuit, 3 kV AC between the outputs and the supply circuit, 5.4 kV AC between input and output |
Packaging
| Package 1 | 1 PCE, 12.5 cm × 11.5 cm × 3.0 cm (L × W × H), 125 g |
| Package 2 | 25 S02, 40 cm × 30 cm × 15 cm (L × W × H), 3.475 kg |
| Package 3 | 480 P06, 80 cm × 60 cm × 75 cm (L × W × H), 64.1 kg |
