Harmony Control Relays Parts

Schneider Electric

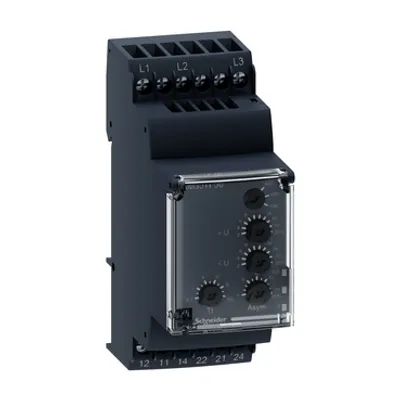

RM35TF36

3 phase control relay, Harmony Control Relays, 480 to 690V AC, phase sequence, phase failure, phase imbalance, UV and OV

Schneider Electric

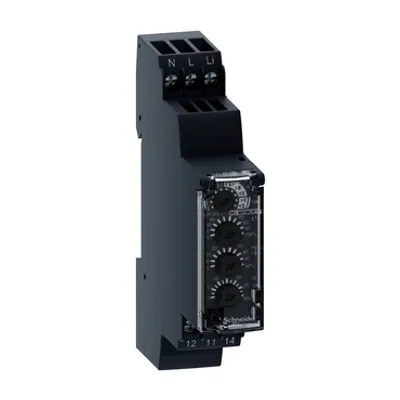

RM17JA12M7

Current control relay, Harmony Control Relays, 5A, 1CO, overcurrent and undercurrent, 0.5...10A, 220 to 240V AC

Schneider Electric

RM35TM50MW

3-phase control relay, Harmony Control Relays, 5A , 2NO, phase failure detection, 24..240V AC DC

Schneider Electric

RM35TM250MW

3-phase control relay, Harmony Control Relays, 5A , 2NO, 24..240V AC DC

Schneider Electric

RM35ATL0MW

Temperature control relay, Harmony Control Relays, 5A, 1CO, 24..240V AC DC

Schneider Electric

RM10TE00

Modular measurement and control relays, Harmony Relay, 3 phase supply, adjustable 0.1...10s, 183...528V AC, 1C O

Schneider Electric

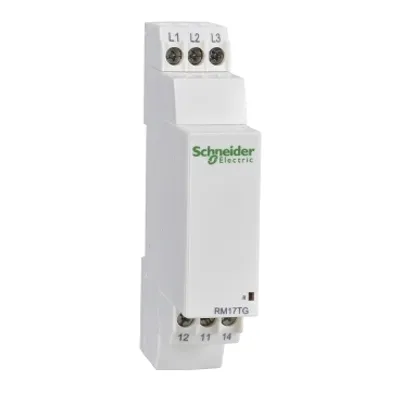

RM10TG00

Modular measurement and relay, Harmony relay, for 3-phase supply, without time delay, 183...528V AC, 1 C/O

Schneider Electric

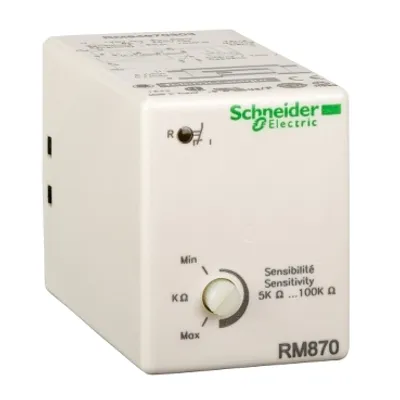

RM84870301

Industrial measurement and relay, Harmony relay, plug-in liquid level control relay RM84, 8 pins, 24V AC, 1 C/O

Schneider Electric

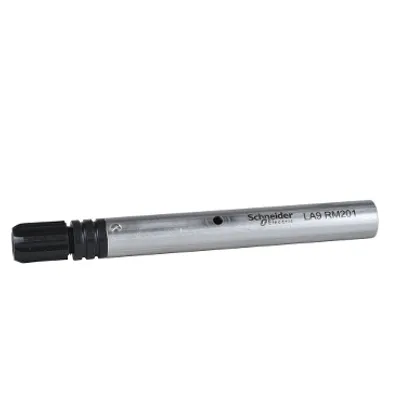

LA9RM201

Level control probe, Harmony Control Relays, relay accessories, maximum operating temperature 100Â°C

Schneider Electric

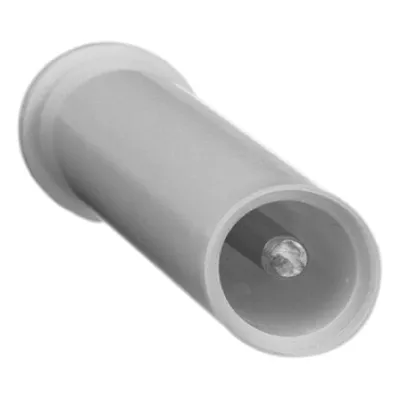

RM79696043

Level control probe, Harmony Control Relays, relay accessories, maximum operating temperature 200Â°C

Schneider Electric

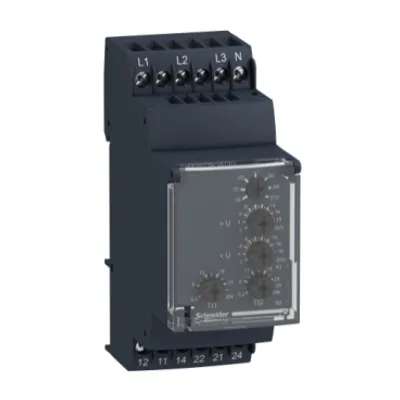

RM35UB3N30

Voltage control relay, Harmony Control Relays, 5A, 2CO, 120â€¦277V AC

Schneider Electric

RM35UB330

Voltage control relay, Harmony Control Relays, 5A, 2CO, 220â€¦480V AC

Schneider Electric

RM17UB310

Voltage control relay, Harmony Control Relays, 5A, 1CO, 208...480V AC

Schneider Electric

RM22TR33

3-phase control relay, Harmony Control Relays, 8A, 2CO, 380...480V AC

Schneider Electric

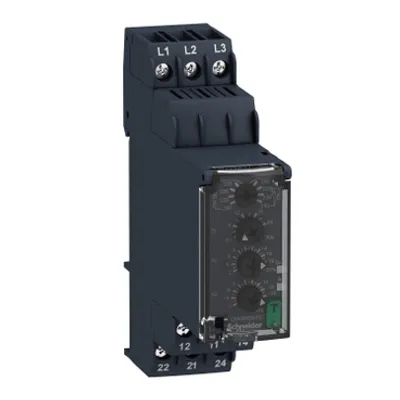

RM22TR31

3-phase control relay, Harmony Control Relays, 8A, 2CO, overvoltage and undervoltage detection, 200â€¦240V AC

Schneider Electric

RM22TU23

3-phase control relay, Harmony Control Relays, 8A, 2CO, undervoltage detection, 380â€¦480V AC

Schneider Electric

RM22TU21

3-phase control relay, Harmony Control Relays, 8A, 2CO, undervoltage detection, 200â€¦240V AC

Schneider Electric

RM22TA31

3-phase control relay, Harmony Control Relays, 8A, 2CO, 200â€¦240V AC

Schneider Electric

RM22TA33

3-phase control relay, Harmony Control Relays, 5A, 2CO, 380...480V AC

Schneider Electric

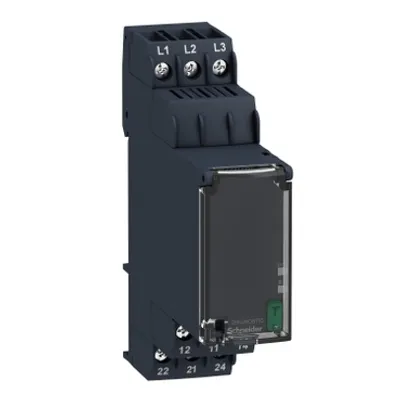

RM22TG20

Harmony, Modular 3-phase supply control relay, 8A, 2 CO, 183…528VAC

Schneider Electric

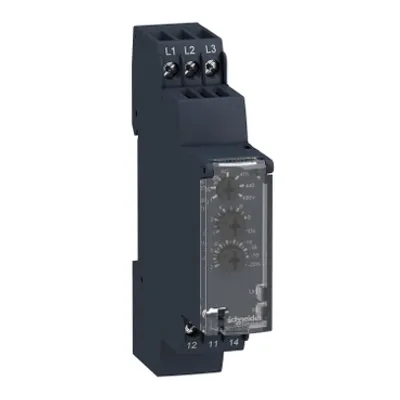

RM17TU00

3-phase control relay, Harmony Control Relays, 5A, 1CO, undervoltage detection, 208...480V AC

Schneider Electric

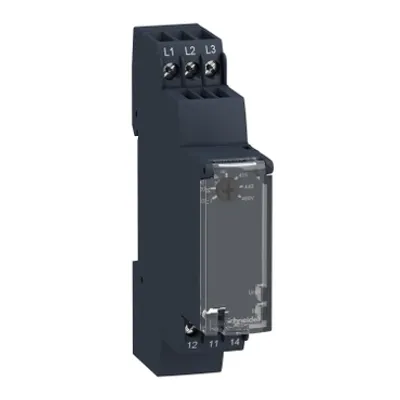

RM17TT00

3-phase control relay, Harmony Control Relays, 5A, 1CO, phase failure detection, 208...480V AC

Schneider Electric

RM17TG20

3-phase control relay, Harmony Control Relays, 5A, 2CO, 208...480V AC

Schneider Electric

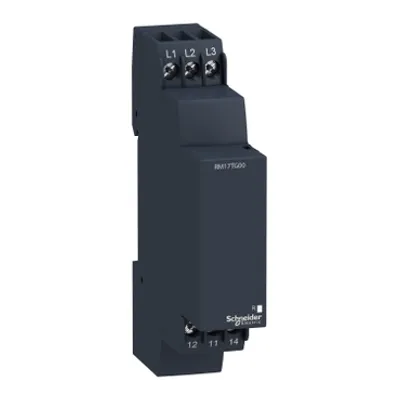

RM17TG00

3-phase control relay, Harmony Control Relays, 5A, 1CO, screw connectors, 208...480V AC

Compare Harmony Control Relays

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Relay name	Measurement range	Supply voltage limits	Voltage range	Product certifications
RM35TF36	RM35TF	480...690 V AC	384…828 V AC, 3 phases	480...690 V phase to phase	DNV-GL, UL, CSA, RCM, CCC, CE, UKCA
RM17JA12M7	RM17JA	0.5...10 A current AC 50/60 Hz	198…264 V AC	—	DNV-GL, cULus, UKCA, RCM, CE, CCC
RM35TM50MW	RM35TM	208...480 V AC, 15...3100 Ohm	20.4…264 V AC, 20.4…264 V DC	176...528 V	GL, UL, GOST, C-Tick, CSA
RM35TM250MW	RM35TM	208...480 V AC, 15...3100 Ohm	20.4…264 V AC, 20.4…264 V DC	176...528 V	CSA, C-Tick, GOST, UL, GL
RM35ATL0MW	RM35AT	+/- 1...46 °C	20.4…264 V AC, 21.6…264 V DC	—	GOST, GL, C-Tick, UL, CSA
RM10TE00	RM10TE	—	183…528 V AC	208...480 V phase to phase	C-Tick, UL, GOST, CSA, GL
RM10TG00	RM10TG	—	183…528 V AC	183...528 V	C-Tick, GOST, UL, CSA, GL
RM84870301	RM84870	—	—	0.85...1.15 x Un	CSA, cULus
LA9RM201	—	—	—	—	—
RM79696043	—	—	—	—	—
RM35UB3N30	RM35UB3	120...277 V AC	114…329 V AC	—	UL, C-Tick, GL, CSA, GOST
RM35UB330	RM35UB3	208...480 V AC	194…528 V AC	—	C-Tick, GOST, CSA, GL, UL
RM17UB310	RM17UB3	220...480 V AC	183…528 V AC	—	GOST, UL, GL, C-Tick, CSA
RM22TR33	RM22TR	380...480 V voltage AC	304…576 V AC	380...480 V phase to phase	GL, CSA, RCM, CE, EAC, CCC, UL
RM22TR31	RM22TR	200...240 V voltage AC	160…288 V AC	200...240 V phase to phase	CSA, CCC, EAC, RCM, CE, GL, UL
RM22TU23	RM22TR	380...480 V voltage AC	304…576 V AC	380...480 V phase to phase	CSA, RCM, UL, GL, CE, CCC, EAC
RM22TU21	RM22TR	200...240 V voltage AC	160…288 V AC	200...240 V phase to phase	RCM, CE, CSA, GL, CCC, UL, EAC
RM22TA31	RM22TA	200...240 V voltage AC	160…288 V AC	200...240 V phase to phase	GL, EAC, UL, CSA, RCM, CCC, CE
RM22TA33	RM22TA	380...480 V voltage AC	304…576 V AC	380...480 V phase to phase	GL, EAC, CCC, CE, CSA, UL, RCM
RM22TG20	RM22TG	208...480 V voltage AC	183…528 V AC	—	CE, EAC, RCM, GL, CSA, UL, CCC
RM17TU00	RM17TU	208...480 V AC	183…528 V AC	208...480 V phase to phase	GL, GOST, UL, C-Tick, CSA
RM17TT00	RM17TT	208...480 V AC	183…528 V AC	208...480 V phase to phase	UL, GL, C-Tick, GOST, CSA
RM17TG20	RM17TG	208...480 V AC	183…484 V AC	183...484 V	GOST, C-Tick, UL, CSA, GL
RM17TG00	RM17TG	208...480 V AC	183…528 V AC	183...528 V	C-Tick, GL, CSA, UL, GOST
