Schneider Electric RMC2UUBD
Signal Conditioner, Harmony Analog, 6.2 mm, universal V or I, signal duplicator
- MPN
- RMC2UUBD
- EAN
- 3606487614142
- Category
- Harmony Analog
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

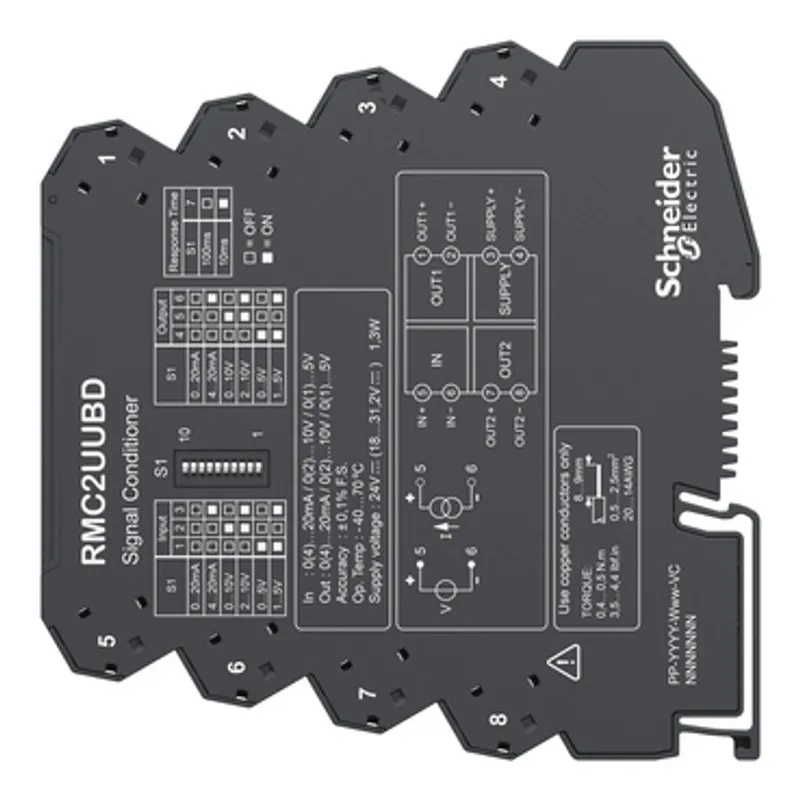

What is the Schneider Electric RMC2UUBD?
The RMC2UUBD is an universal signal conditioner designed to convert and duplicate analog signals measurement into 2x isolated analog signals for seamless integration with industrial automation process control systems. This universal signal duplicator that converts and duplicates a 0(1)…5V or 0(2)...10V or 0(4)…20mA analog signal. With a 6.2mm ultra-compact design, easy wiring access layout, and integrated diagnostic LEDs, RMC2UUBD simplifies installation, commissioning, and troubleshooting, making it ideal for space-constrained panels and demanding industrial environments. With configurable DIP switches, users can easily set different analog signal conditioning to suit specific requirements. Meets international standards and holds CE, UKCA marking, cULus, and DNV certifications.
Specifications
Specifications
| Range of product | Harmony Analog |
| Product or component type | Signal conditioner |
| Analogue input type | Current 0...20 mA, Current 4...20 mA, Voltage 0...10 V DC, Voltage 2...10 V DC, Voltage 0...5 V DC, Voltage 1...5 V DC |
| Analogue output type | Current 0...20 mA <= 550 Ohm, Current 4...20 mA <= 550 Ohm, Voltage 0...10 V >= 10 kOhm, Voltage 2...10 V >= 10 kOhm, Voltage 0...5 V >= 10 kOhm, Voltage 1...5 V >= 10 kOhm |
| Protection type | Reverse polarity protection on power supply, Overvoltage protection on output, Short-circuit protection on output |
| [Us] rated supply voltage | 24 V DC +30 %...-25 %, isolated |
| Current consumption | <= 55 mA for 24 V |
| Measurement error | +/- 0.1 % of full scale |
| Repeat accuracy | +/- 0.03 % |
| Temperature coefficient | < 100 ppm/°C |
| Clamping connection capacity | 20...14 AWG |
| tightening torque | 0.4…0.5 N.m, 0.4…0.5 N.m |
| Marking | CULus, DNV, CE, UKCA, WEEE, China RoHS |
| IP degree of protection | IP20 |
| Surge withstand | 1 kV during 1.2/50 µs conforming to IEC 61000-4-5 |
| [Ui] rated insulation voltage | 300 V |
| Fixing mode | Clip-on (35 mm DIN rail) |
| Safety reliability data | MTTFd = 241.9 years, B10d = 223265 |
| Net weight | 0.07 kg |
| Wire stripping length | 8…9 mm |
| Status LED | 3 LEDs (green) PWR (Power Status), (red) high signal level, (red) low signal level |
| Overvoltage category | II |
| Operating altitude | 0...2000 m |
| Width | 6.2 mm |
| Height | 110 mm |
| Depth | 110 mm |
| Relative humidity | 5…95 % |
| Product certifications | cULus, DNV |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 6 kV (in contact) conforming to IEC 61000-4-2, 8 kV (in air) conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C mounting side by side |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Electromagnetic emission | Conducted emissions conforming to CISPR 11, Radiated emissions conforming to CISPR 11 |
| Dielectric strength | 3 kV AC between the inputs and the supply circuit, between the outputs and the supply circuit, between input and output |
| Electromagnetic compatibility | Fast transient bursts - test level: 1 kV criteria A (I/O) conforming to IEC 61000-4-4, Fast transient bursts - test level: 2 kV criteria A (power lines) conforming to IEC 61000-4-4, Radiated RF field immunity test - test level: 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, Radiated RF field immunity test - test level: 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3, Conducted radio-frequency immunity test - test level: 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6, Magnetic field at power frequency - test level: 30 A/m criteria A conforming to IEC 61000-4-8 |
Packaging
| Package 1 | 1 PCE, 12 cm × 11.8 cm × 2.2 cm (L × W × H), 110 g |
| Package 2 | 30 S02, 40 cm × 30 cm × 15 cm (L × W × H), 3.65 kg |
| Package 3 | 480 P06, 80 cm × 60 cm × 75 cm (L × W × H), 66.9 kg |
