Schneider Electric NSYTVR18

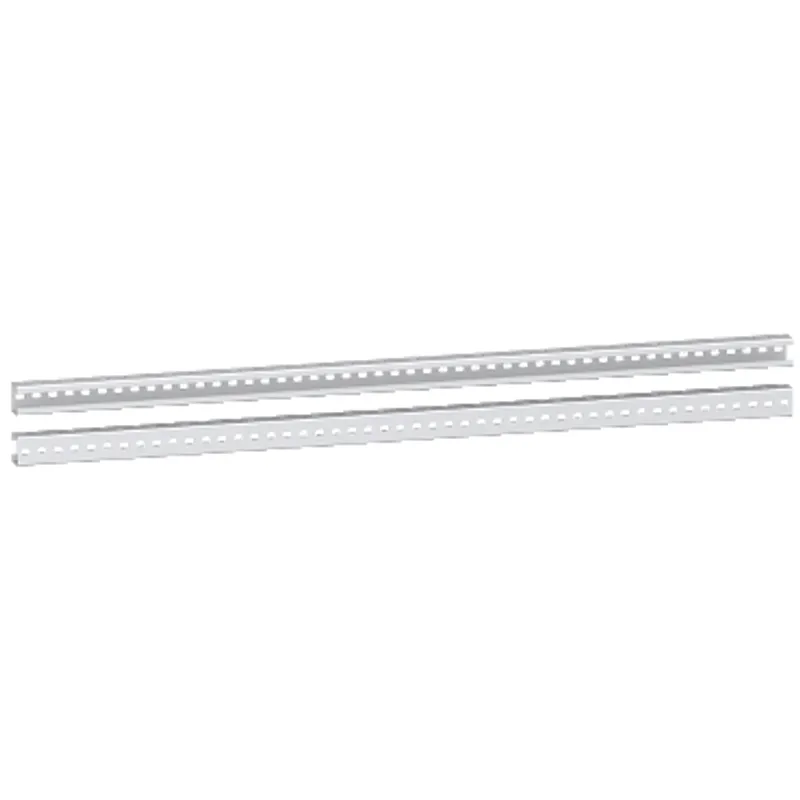

Set of 2 heavy duty vertical rails for fixing of chassis and cross rails-1800 mm
- MPN
- NSYTVR18
- EAN
- 3606480148743
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTVR18?
This is a set of steel technical upright for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. The height, width and depth are 1800mm, 45mm and 34mm respectively. The real height is 1675mm. The thickness is 2mm. The uprights are used for mounting chassis and fixing wiring accessories. Mounting is adjustable in depth every 25mm with caged nuts and adjustable in height every 2,5mm. It is a set of 2 uprights. Anti-corrosion protection is ensured by zinc coating. .
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Technical upright |
| device application | Multi-purpose |
| enclosure nominal dimensions | - H: 1800 mm |
| Mounting support | Mounting plate fixing bracket, Upright fixing bracket |
| Range compatibility | PanelSeT SF, PanelSeT SM, PanelSeT SFX, PanelSeT SMX |
| Device composition | 2 upright |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Adjustment | Adjustable in depth every 25 mm with caged nuts, Adjustable in height every 2.5 mm with quarter-turn nuts |
| Height | 1800 mm, Real: 1675 mm |
| Width | 45 mm |
| Depth | 34 mm |
| thickness | 2 mm |
| Cut-out dimensions | 13 x 11 mm |
Packaging
| Package 1 | 1 PCE, 168.000 cm × 6.000 cm × 4.000 cm (L × W × H), 4.982 kg |
| Package 2 | 80 P2M, 200.000 cm × 120.000 cm × 42.000 cm (L × W × H), 442.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTVR18: frequently asked questions
When can NSYTVR18 be shipped?
NSYTVR18 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTVR18 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTVR18 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTVR18, subject to availability and destination.
More Schneider Electric parts
Schneider Electric
NSYTVR14Set of 2 heavy duty vertical rails for fixing of chassis and cross rails-1400 mm
Schneider Electric
NSYTVR15Vertical uprights height 1500mm. zinc-coated steel. Supply: 2 standard uprights.
Schneider Electric
NSYTVR16Set of 2 heavy duty vertical rails for fixing of chassis and cross rails-1600 mm
Schneider Electric
NSYTVR20Set of 2 heavy duty vertical rails for fixing of chassis and cross rails-2000 mm
Schneider Electric
NSYTVR22Set of 2 heavy duty vertical rails for fixing of chassis and cross rails-2200 mm
Schneider Electric
NSYTX10030Stainless canopy 304L, Scotch Brite® finish. for WM enclosure W1000xD300mm
Schneider Electric

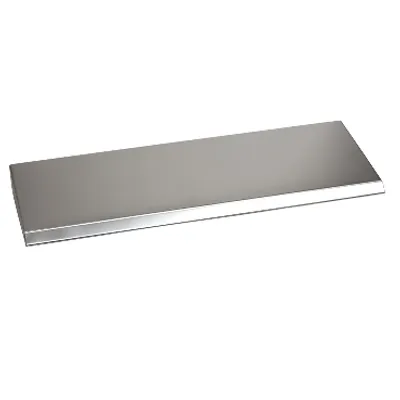

NSYTX2015Stainless canopy 304L, Scotch Brite® finish. for WM enclosure W200xD150mm
