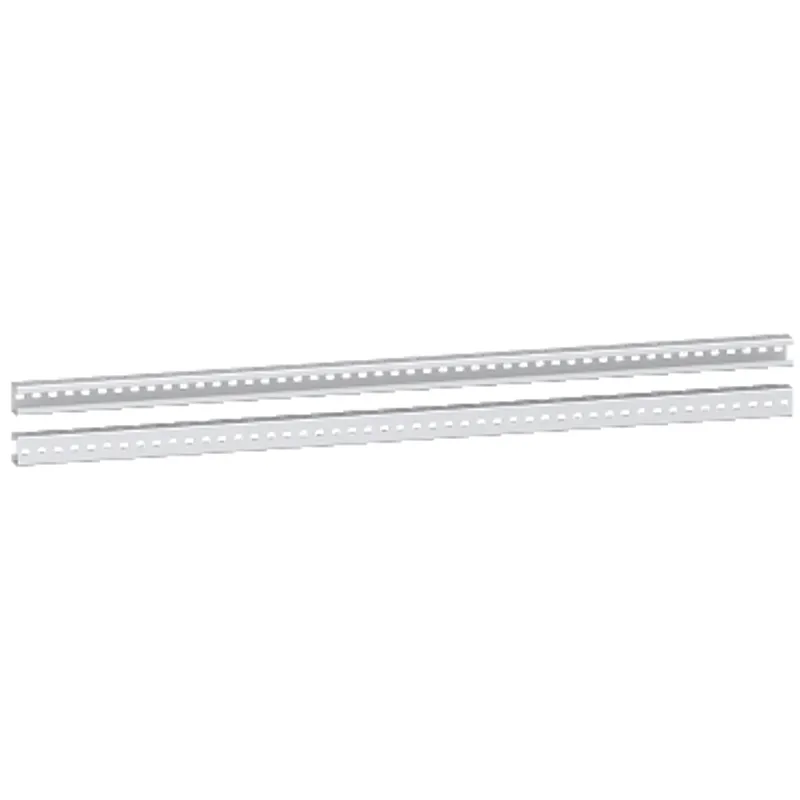

Schneider Electric NSYTVR125
Vertical uprights height 1250mm. zinc-coated steel. Supply: 2 standard uprights.
- MPN
- NSYTVR125
- EAN
- 3606480185069
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTVR125?
2mm thick steel technical upright for PanelSeT PLA enclosures The width is 45mm The nominal height is 1250mm and real height is 1125mm The depth is 34mm The uprights are used for mounting chassis and fixing wiring accessories Mounting is adjustable in depth every 25mm with caged nuts and adjustable in height every 2,5mm with quarter-turn nuts Fixed by bosses inserts of type M8 on rear of enclosure location Cut-out dimension is 11 x 13mm Anti-corrosion protection is ensured by zinc coating The product is made of x 2 uprights
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Technical upright |
| device application | Multi-purpose |
| enclosure nominal dimensions | - H: 1250 mm |
| Mounting support | Direct fixing on the rear inserts, Step slide |
| Range compatibility | PanelSeT PLA |
| Device composition | 2 upright |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Bosses inserts - screw type M8 - rear of enclosure location |
| Adjustment | Adjustable in depth every 25 mm with caged nuts, Adjustable in height every 2.5 mm with quarter-turn nuts |
| Height | Nominal: 1250 mm, Real: 1125 mm |
| Width | 45 mm |
| Depth | 34 mm |
| thickness | 2 mm |
| Cut-out dimensions | 11 x 13 mm |
Packaging
| Package 1 | 1 PCE, 113.000 cm × 6.000 cm × 3.500 cm (L × W × H), 3.410 kg |
| Package 2 | 160 PAM, 120.000 cm × 100.000 cm × 100.000 cm (L × W × H), 559.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTVR125: frequently asked questions
When can NSYTVR125 be shipped?
NSYTVR125 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTVR125 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTVR125 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTVR125, subject to availability and destination.
