Schneider Electric NSYTVR15

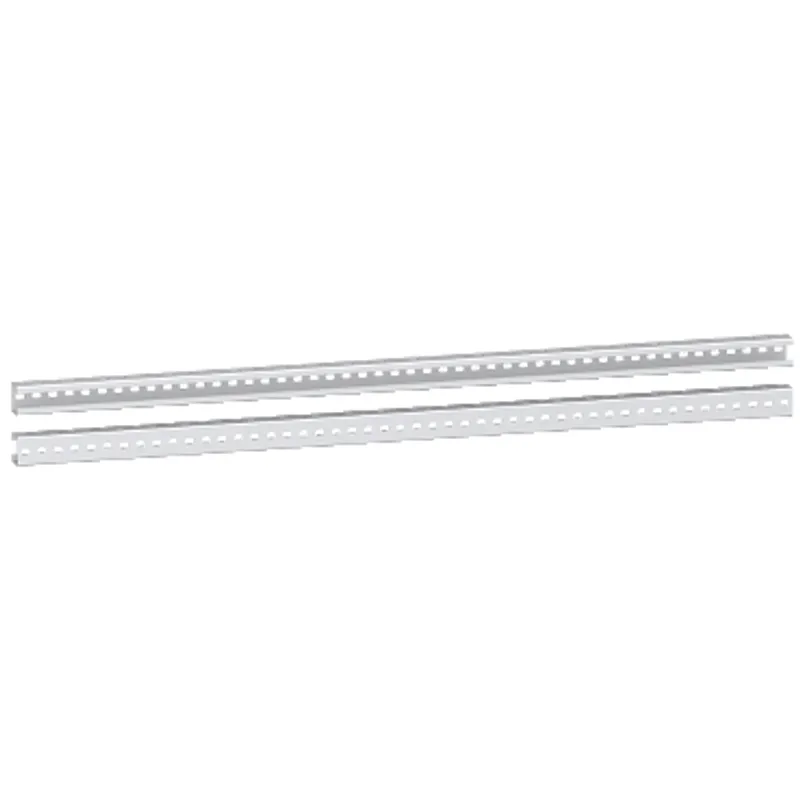

Vertical uprights height 1500mm. zinc-coated steel. Supply: 2 standard uprights.
- MPN
- NSYTVR15
- EAN
- 3606480185076
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTVR15?
2mm thick steel technical upright for PanelSeT PLA enclosures The width is 45mm The nominal height is 1500mm and real height is 1375mm The depth is 34mm The uprights are used for mounting chassis and fixing wiring accessories Mounting is adjustable in depth every 25mm with caged nuts and adjustable in height every 2,5mm with quarter-turn nuts Fixed by bosses inserts of type M8 on rear of enclosure location Cut-out dimension is 11 x 13mm Anti-corrosion protection is ensured by zinc coating The product is made of x 2 uprights
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Technical upright |
| device application | Multi-purpose |
| enclosure nominal dimensions | - H: 1500 mm |
| Mounting support | Step slide, Direct fixing on the rear inserts |
| Range compatibility | PanelSeT PLA |
| Device composition | 2 upright |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Bosses inserts - screw type M8 - rear of enclosure location |
| Adjustment | Adjustable in depth every 25 mm with caged nuts, Adjustable in height every 2.5 mm with quarter-turn nuts |
| Height | Nominal: 1500 mm, Real: 1375 mm |
| Width | 45 mm |
| Depth | 34 mm |
| thickness | 2 mm |
| Cut-out dimensions | 11 x 13 mm |
Packaging
| Package 1 | 1 PCE, 138.000 cm × 6.000 cm × 4.000 cm (L × W × H), 4.134 kg |
| Package 2 | 120 P2M, 200.000 cm × 120.000 cm × 50.000 cm (L × W × H), 500.000 kg |
