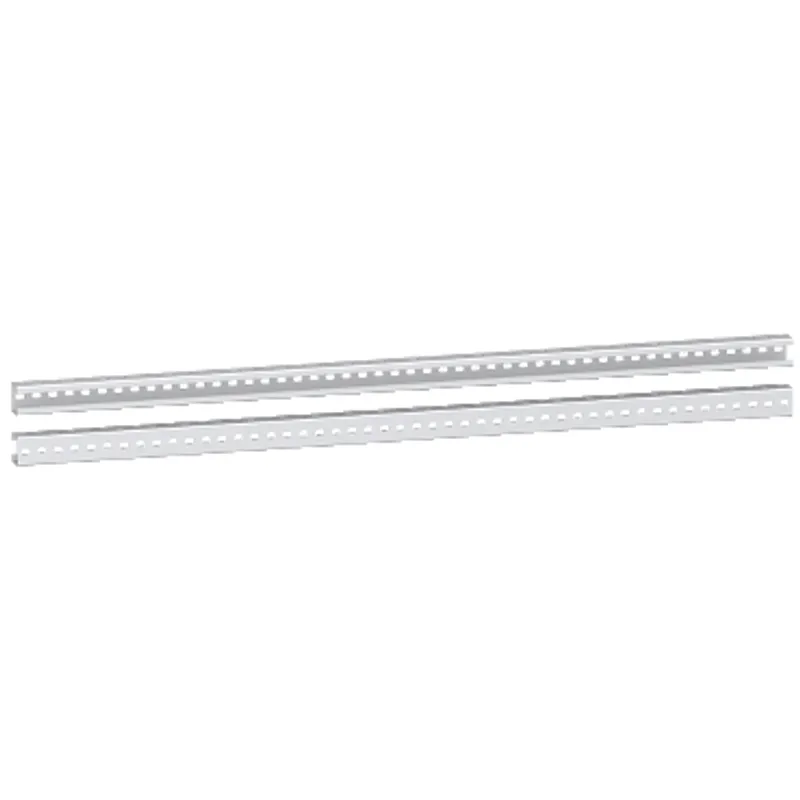

Set of 2 heavy duty vertical rails for fixing of chassis and cross rails-2200 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSet SF |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 6.2 kg |
Shipping & availability
When can NSYTVR22 be shipped?
NSYTVR22 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTVR22 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTVR22 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTVR22, subject to availability and destination.
Schneider Electric Set of 2 heavy duty vertical rails for fixing of chassis and cross rails-2200 mm, manufacturer part number NSYTVR22. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Technical upright |
| device application | Multi-purpose |
| enclosure nominal dimensions | - |
| Mounting support | Upright fixing bracket, Mounting plate fixing bracket |
| Range compatibility | PanelSeT SF, PanelSeT SM |
| Device composition | 2 upright |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Adjustment | Adjustable in depth every 25 mm with caged nuts, Adjustable in height every 2.5 mm with quarter-turn nuts |
| Height | 2200 mm |
| Width | 45 mm |
| Depth | 34 mm |
| thickness | 2 mm |
| Cut-out dimensions | 13 x 11 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 208.000 cm |
| Package 1 Weight | 6.202 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 80 |
| Package 2 Height | 43.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 209.000 cm |
| Package 2 Weight | 541.000 kg |
| Warranty | 18 months |
More Schneider Electric parts
Available on requestVertical uprights height 1500mm. zinc-coated steel. Supply: 2 standard uprights.
Available on requestSet of 2 heavy duty vertical rails for fixing of chassis and cross rails-1600 mm
Available on requestSet of 2 heavy duty vertical rails for fixing of chassis and cross rails-1800 mm
Available on requestSet of 2 heavy duty vertical rails for fixing of chassis and cross rails-2000 mm
Available on requestStainless canopy 304L, Scotch Brite® finish. for WM enclosure W1000xD300mm
Available on requestStainless canopy 304L, Scotch Brite® finish. for WM enclosure W200xD150mm
Available on requestStainless canopy 304L, Scotch Brite® finish. for WM enclosure W250xD150mm

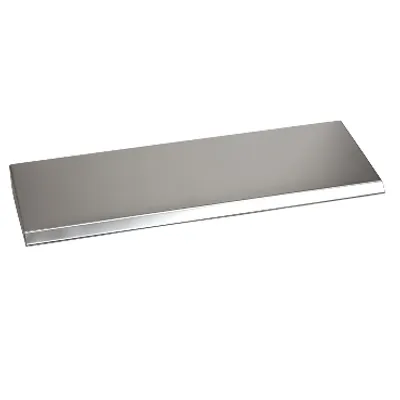

Available on requestStainless canopy 304L, Scotch Brite® finish. for WM enclosure W300xD150mm
