NSYSUCR40160Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W1600mm, 1 row, set of 2
Schneider Electric NSYSUCR4030

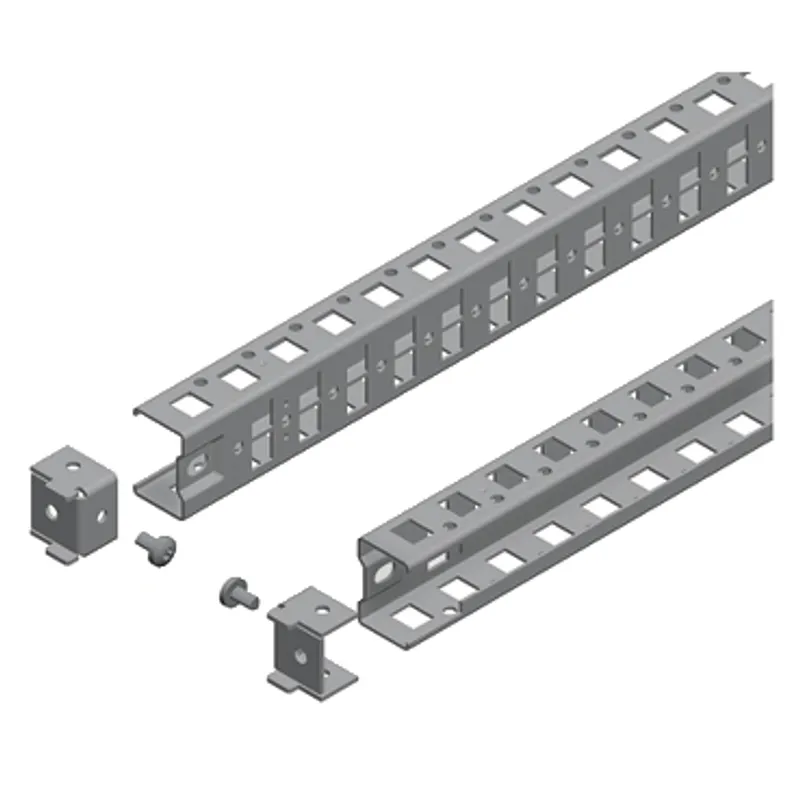

Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H300 W40mm, 1 row, set of 2
- MPN
- NSYSUCR4030
- EAN
- 3606485133362
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSUCR4030?
Universal cross rail made from zinc coated 1,5mm thick steel for use with Spacial SF, Spacial SM, Spacial SFX and Spacial SMX enclosures with height 300mm Can be fixed between cross rails and on structure of enclosure On SM enclosures fixing by means of adaptation profiles The nominal height is 300mm and useful height is 207mm The width is 40mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Universal cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - H: 300 mm |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX, PanelSeT PanelSeT SMX |
| Mounting location | Between cross rails, On structure of enclosure |
| Mounting support | Adaptation profile, on SM enclosures |
| Device composition | Fixing elements, 2 cross rails, 4 supports |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | By screws |
| Adjustment | Adjustable with a pitch of 25 mm |
| Number of horizontal rows | 1 |
| Maximum load | 70 kg |
| Height | Nominal: 300 mm, Useful: 207 mm |
| Width | 40 mm |
| Depth | 27 mm |
| thickness | 1.5 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 21.000 cm × 5.500 cm × 5.000 cm (L × W × H), 570.000 g |
| Package 2 | 64 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 52.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSUCR4030: frequently asked questions
When can NSYSUCR4030 be shipped?
NSYSUCR4030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSUCR4030 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSUCR4030 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSUCR4030, subject to availability and destination.
