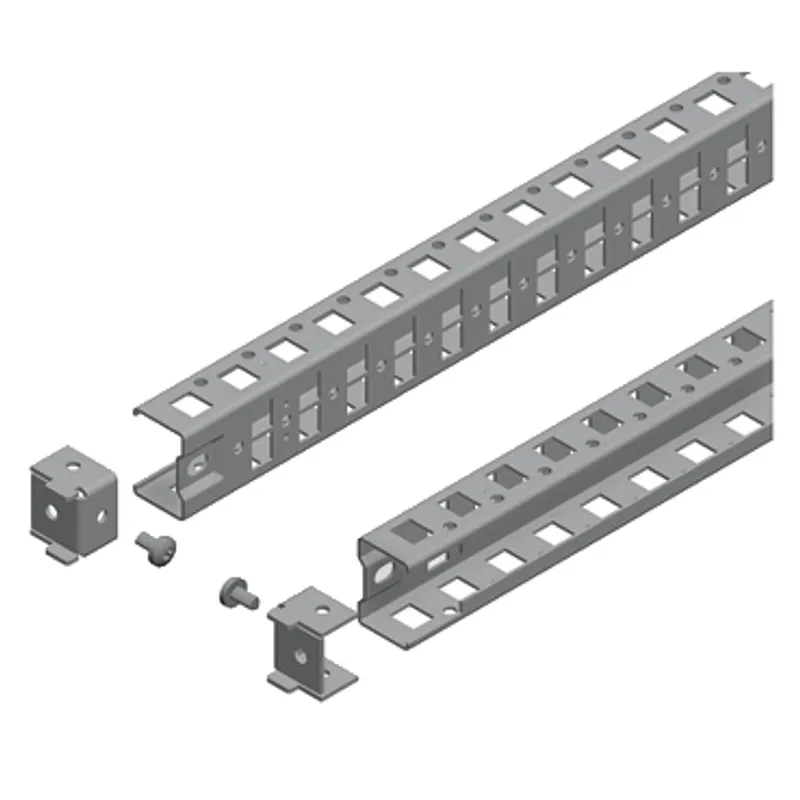

Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W2200mm, 1 row, set of 2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSet SF |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.08 kg |
Shipping & availability
When can NSYSUCR40220 be shipped?
NSYSUCR40220 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSUCR40220 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSUCR40220 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSUCR40220, subject to availability and destination.
Universal cross rail made from zinc coated 1,5mm thick steel for use with Spacial SF enclosures with height 2200mm Can be fixed on structure of enclosure and between cross rails On SM enclosures fixing by means of adaptation profiles The nominal height is 2200mm and useful height is 2107mm The width is 40mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Universal cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - H: 2200 mm |
| Range compatibility | PanelSeT PanelSeT SF |
| Mounting location | On structure of enclosure, Between cross rails |
| Mounting support | Adaptation profile, on SM enclosures |
| Installation direction | Vertical |
| Device composition | Fixing elements, 2 cross rails, 4 supports |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | By screws |
| Adjustment | Adjustable with a pitch of 25 mm |
| Number of horizontal rows | 1 |
| Height | Nominal: 2200 mm, Useful: 2107 mm |
| Width | 40 mm |
| Depth | 27 mm |
| thickness | 1.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 192.000 cm |
| Package 1 Weight | 4.084 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 42.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 210.500 cm |
| Package 2 Weight | 440.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
