Schneider Electric NSYSUCR4040
Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W400mm, 1 row, set of 2
- MPN
- NSYSUCR4040
- EAN
- 3606485133379
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSUCR4040?

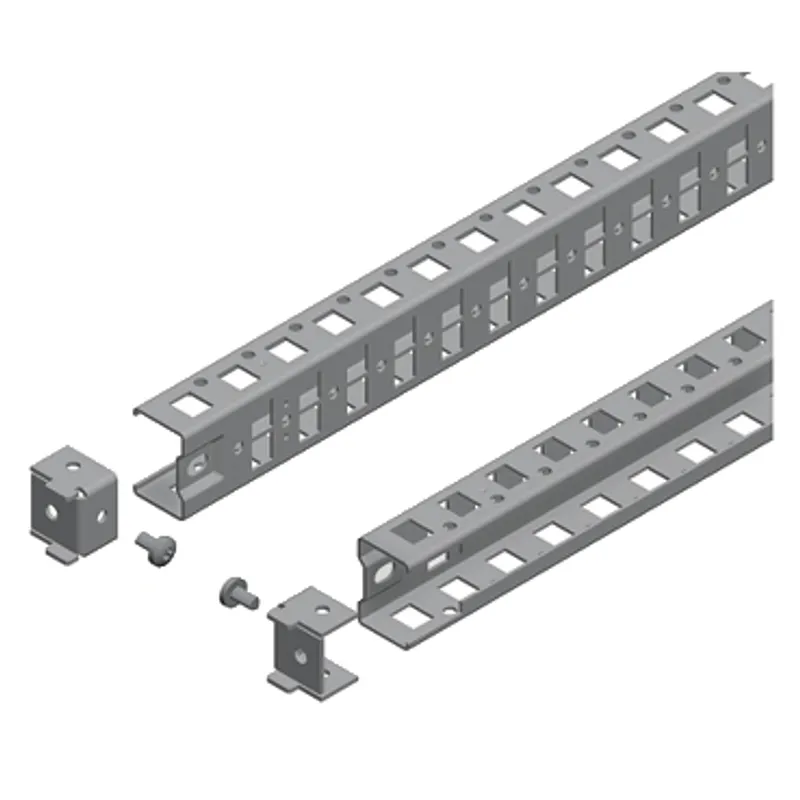

This set of two universal cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal width of 40 mm and a nominal length of 40 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Universal cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - H: 400 mm |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX, PanelSeT PanelSeT SMX |
| Mounting location | Between cross rails, On structure of enclosure |
| Mounting support | Adaptation profile, on SM enclosures |
| Device composition | Fixing elements, 2 cross rails, 4 supports |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | By screws |
| Adjustment | Adjustable with a pitch of 25 mm |
| Number of horizontal rows | 1 |
| Maximum load | 60 kg |
| Height | Nominal: 400 mm, Useful: 307 mm |
| Width | 40 mm |
| Depth | 27 mm |
| thickness | 1.5 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 32.000 cm × 5.000 cm × 6.000 cm (L × W × H), 762.000 g |
| Package 2 | 696 PAM, 120.000 cm × 100.000 cm × 95.000 cm (L × W × H), 550.000 kg |
