Schneider Electric NSYSPS10200

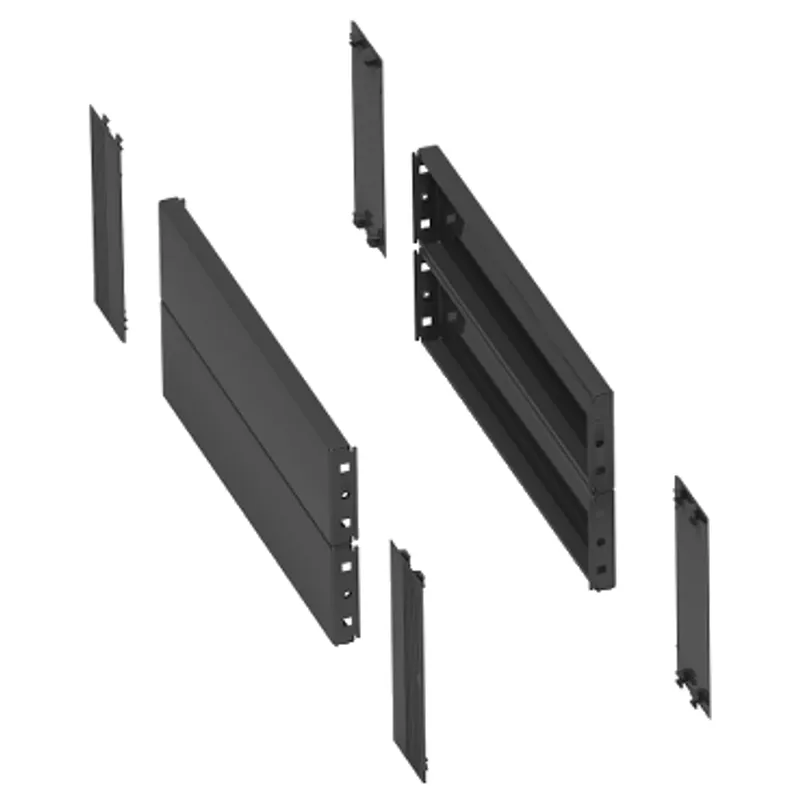

PanelSeT SF side panel plinth - 200x600x1000 mm
- MPN
- NSYSPS10200
- EAN
- 3606480067891
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSPS10200?
Plinth side panel to be used with PanelSeT SF enclosures The plinth side panel is to be used in electronic applications The nominal width is 1000mm The height is 200mm The kit is made of fixing elements, 4 corner covers and 4 side panels The product is made of grey Material : Steel (RAL 7022) Anti-corrosion protection is ensured by an epoxy-polyester powder coating Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Side plinth |
| Application | Electronic application |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 4 side panel |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SFN |
| Mounting support | Front plinth |
| Fixing mode | By screws |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Height | 200 mm |
| Width | Nominal: 1000 mm |
| IP degree of protection | IP20 (complete plinth) |
| IK degree of protection | IK10 |
Packaging
| Package 1 | 1 PCE, 86.000 cm × 22.000 cm × 6.000 cm (L × W × H), 6.256 kg |
| Package 2 | 75 PAM, 120.000 cm × 100.000 cm × 105.000 cm (L × W × H), 482.000 kg |
