Schneider Electric NSYSPS12100

Side panels for the plinth, PanelSeT SFN, PanelSeT SF, for electrical enclosure D1200mm, set of 2, H100mm

MPN: NSYSPS12100
EAN: 3606480067907
Category: PanelSet SF

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPS12100?

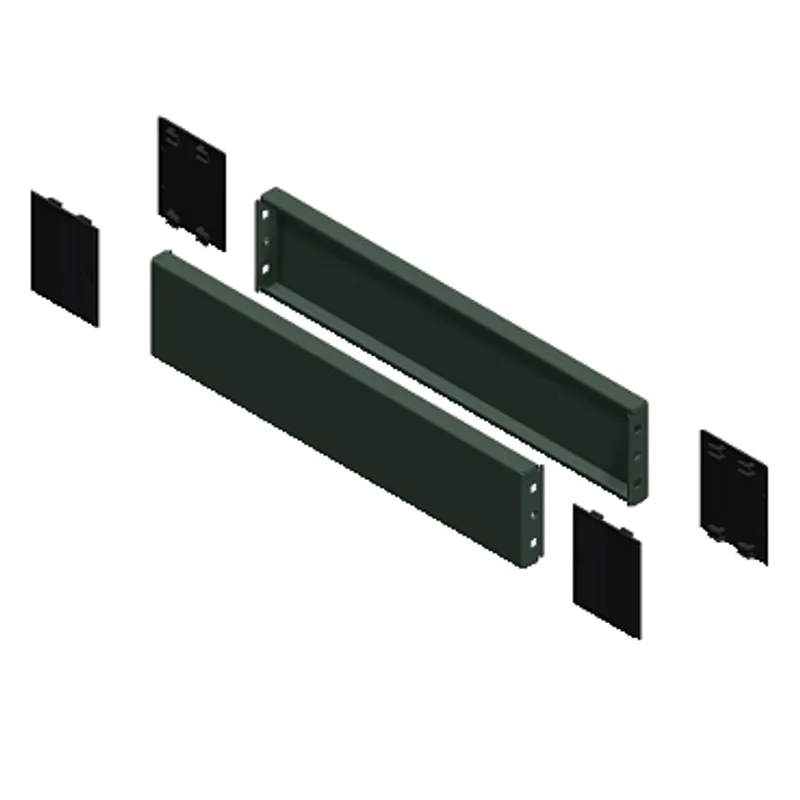

Plain side plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal depth of 1200 mm and its height is 100 mm. The set contains 4 corners covers, 2 side and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth side panel
Application	Electronic application
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 2 side panel
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SFN
Mounting support	Front plinth
Fixing mode	By screws
Colour	Grey (RAL 7022)
Surface finish	Epoxy-polyester powder
Height	100 mm
Width	Nominal: 1200 mm
IP degree of protection	IP20 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1

1 PCE, 104.8 cm × 10.8 cm × 5.8 cm (L × W × H), 3.928 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSPS12100PDF

NSYSPS12100: frequently asked questions

When can NSYSPS12100 be shipped?

NSYSPS12100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSPS12100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSPS12100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPS12100, subject to availability and destination.
