Schneider Electric NSYSPFX12200

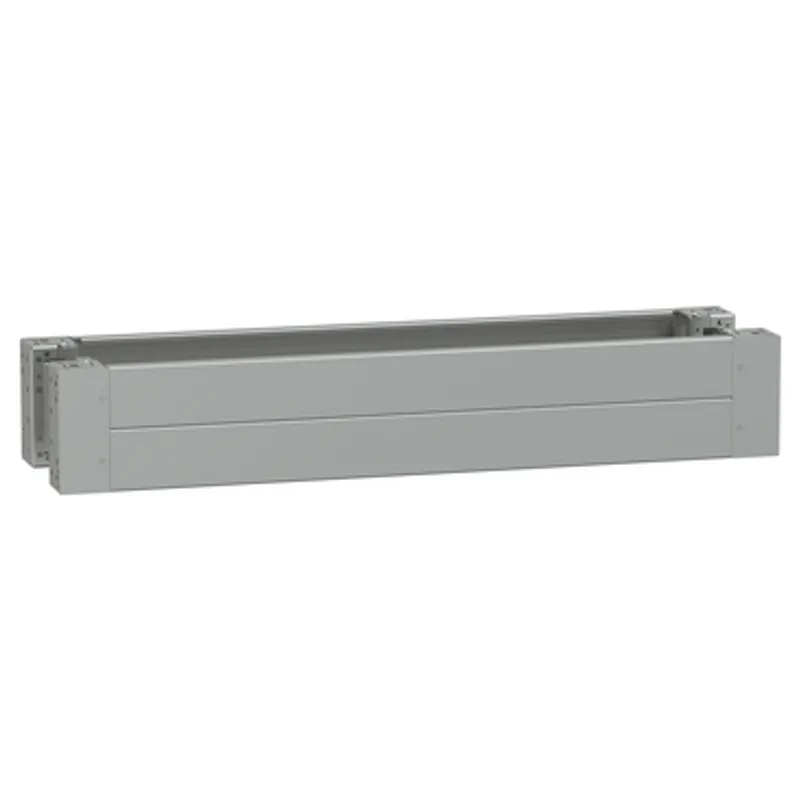

PanelSeT SFHD - outdoor heavy duty - front plinth - H200 W1200 IP55

MPN: NSYSPFX12200
EAN: 3606480626234
Category: PanelSeT SFX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPFX12200?

Plinth front for outdoor heavy duty applications to be used with PanelSeT SF, PanelSeT SM, PanelSeT SD, PanelSeT S3D, PanelSeT SFHD, PanelSeT SMX, PanelSeT SFX, PanelSeT SDX and PanelSeT CRNG enclosures The plinth front is to be used in multi-purpose applications The nominal width is 1200mm and real width is 1215mm The height is 200mm The kit is made of fixing elements, 4 corner covers, 1 front panel, 1 rear panel and 4 corners The product is made of Material : Stainless steel Net weight is 13,908kg Ingress protection rating is IP55 (complete plinth) Mechanical protection rating is IK10

Specifications

Range	PanelSeT
Application	Multi-purpose
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth front
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT S3D PanelSeT S3D, PanelSeT PanelSeT SFHD SFHD, PanelSeT PanelSeT CRNG, PanelSeT SMX PanelSeT SMX, PanelSeT SFX PanelSeT SFX, PanelSeT PanelSeT SDX SDx
Mounting support	Set plinth side panels
Fixing mode	By fixing element - on structure location
Surface finish	Untreated
Height	200 mm
Width	Nominal: 1200 mm, Real: 1215 mm
Net weight	13.908 kg
IP degree of protection	IP20 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 121.000 cm × 20.500 cm × 19.500 cm (L × W × H), 14.074 kg
Package 2	12 PAM, 120.000 cm × 100.000 cm × 80.000 cm (L × W × H), 181.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSPFX12200PDF

NSYSPFX12200: frequently asked questions

When can NSYSPFX12200 be shipped?

NSYSPFX12200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSPFX12200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSPFX12200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPFX12200, subject to availability and destination.
