Schneider Electric NSYSPFX10200

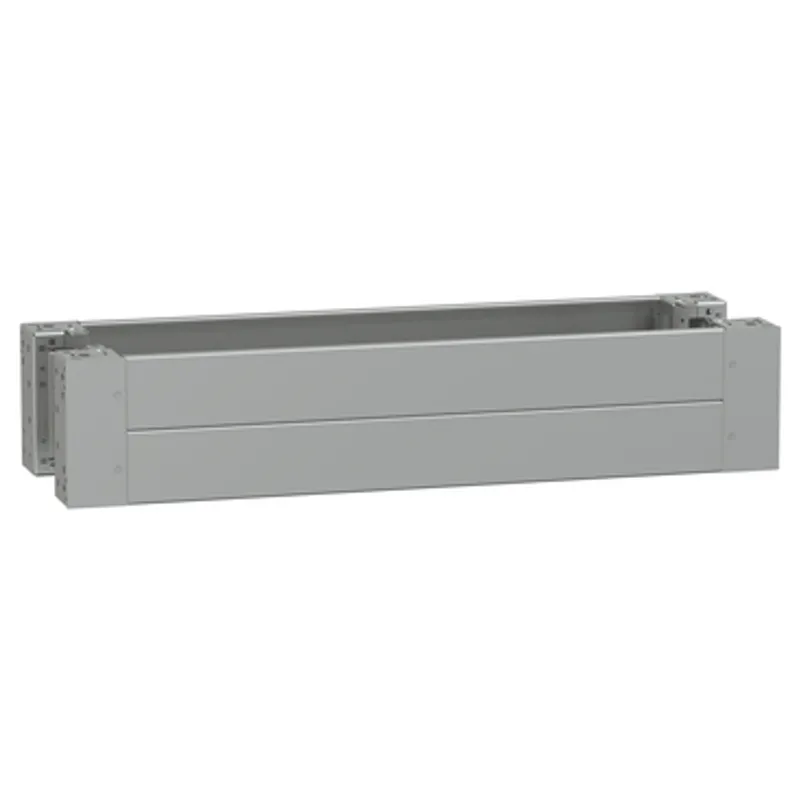

PanelSeT - plain front panel plinth W1000 H200 stainless steel 304L

MPN: NSYSPFX10200
EAN: 3606480626227
Category: PanelSeT SFX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPFX10200?

Plinth front to be used with PanelSeT SF, PanelSeT CRNG, PanelSeT SM, PanelSeT SD, PanelSeT S3D, PanelSeT SFHD, PanelSeT S3X, PanelSeT SMX, PanelSeT SFX and PanelSeT SDX enclosures The plinth front is to be used in multi-purpose applications The nominal width is 1000mm The height is 200mm The kit is made of fixing elements, 4 corner covers, 1 front panel, 1 rear panel and 4 corners The product is made of Material : Stainless steel Net weight is 10,92kg Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth front
Application	Multi-purpose
Device composition	Fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT S3D PanelSeT S3D, PanelSeT PanelSeT SFHD SFHD, PanelSeT PanelSeT CRNG, PanelSeT S3X PanelSeT S3X, PanelSeT SMX PanelSeT SMX, PanelSeT SFX PanelSeT SFX, PanelSeT PanelSeT SDX SDx
Fixing mode	By fixing element - on structure location
Material	Stainless steel 304L
Surface finish	Untreated
Height	200 mm
Width	Nominal: 1000 mm
Net weight	10.92 kg
IP degree of protection	IP20 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 100.500 cm × 20.500 cm × 19.500 cm (L × W × H), 11.486 kg
Package 2	20 PAM, 120.000 cm × 100.000 cm × 95.000 cm (L × W × H), 243.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSPFX10200PDF

NSYSPFX10200: frequently asked questions

When can NSYSPFX10200 be shipped?

NSYSPFX10200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSPFX10200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSPFX10200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPFX10200, subject to availability and destination.
