Schneider Electric NSYSPFX10200H

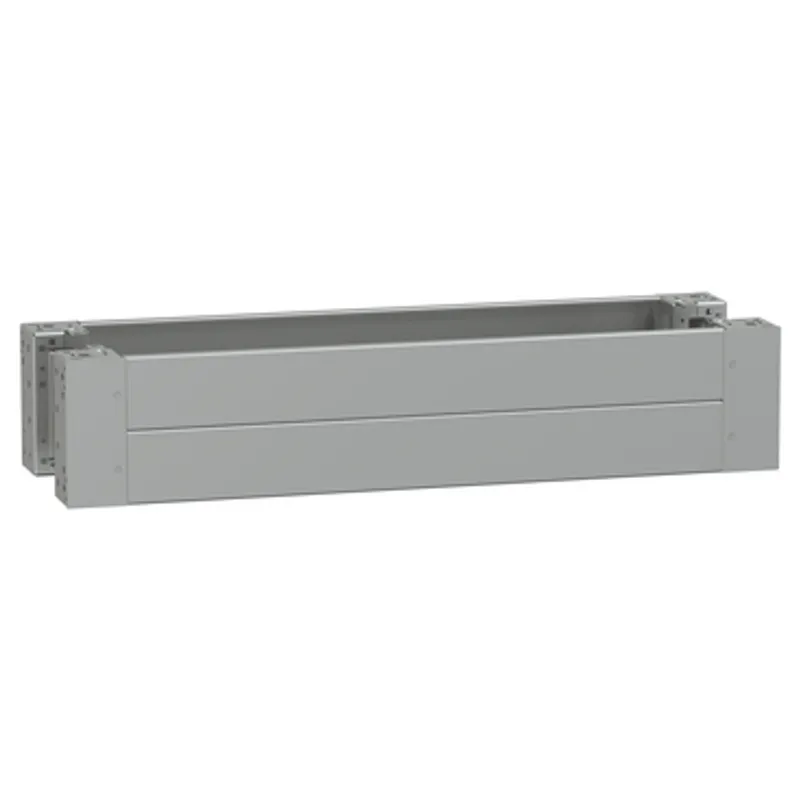

PanelSeT - plain front panel plinth W1000 H200 stainless steel 316L

MPN: NSYSPFX10200H
EAN: 3606480626357
Category: PanelSeT SFX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPFX10200H?

Plinth front to be used with PanelSeT SF, PanelSeT CRNG, PanelSeT SM, PanelSeT SD, PanelSeT S3D, PanelSeT SFHD, PanelSeT S3X, PanelSeT SMX, PanelSeT SFX and PanelSeT SDX enclosures The plinth front is to be used in multi-purpose applications The nominal width is 1000mm The height is 200mm The kit is made of fixing elements, 4 corner covers, 1 front panel, 1 rear panel and 4 corners The product is made of Material : Stainless steel Net weight is 10,92kg Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth front
Application	Multi-purpose
Device composition	Fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT S3D PanelSeT S3D, PanelSeT PanelSeT SFHD SFHD, PanelSeT PanelSeT CRNG, PanelSeT S3X PanelSeT S3X, PanelSeT SMX PanelSeT SMX, PanelSeT SFX PanelSeT SFX, PanelSeT PanelSeT SDX SDx
Fixing mode	By fixing element - on structure location
Material	Stainless steel 316L
Surface finish	Untreated
Height	200 mm
Width	Nominal: 1000 mm
Net weight	10.92 kg
IP degree of protection	IP30 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 101.500 cm × 20.000 cm × 21.500 cm (L × W × H), 11.724 kg
Package 2	20 PAM, 120.000 cm × 100.000 cm × 95.000 cm (L × W × H), 247.480 kg
