Schneider Electric NSYSPFX16200

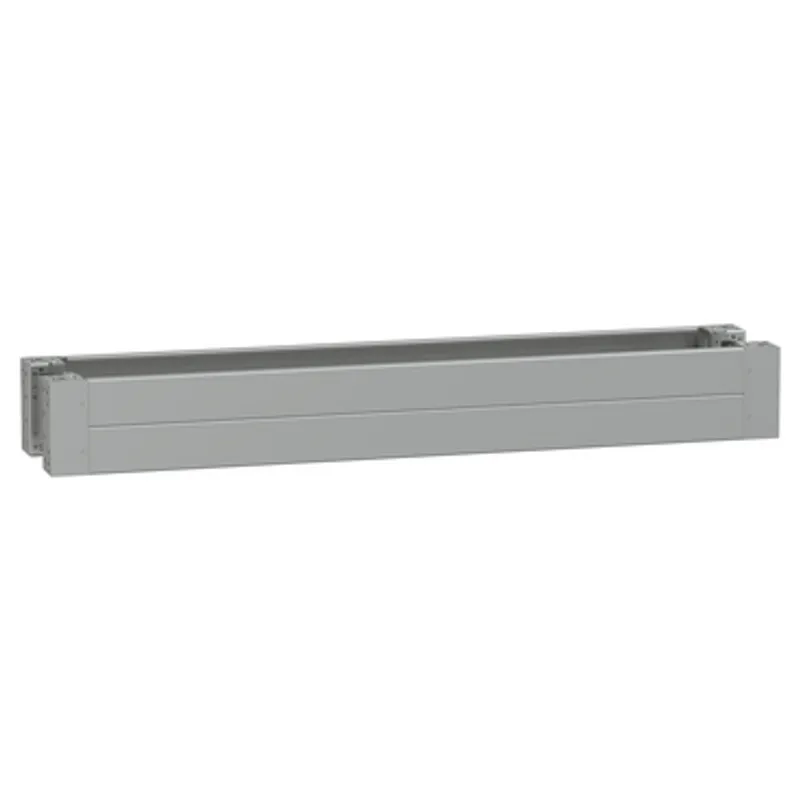

PanelSeT - plain front panel plinth W1600 H200 stainless steel 304L

MPN: NSYSPFX16200
EAN: 3606480626241
Category: PanelSeT SMX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPFX16200?

Plinth front to be used with PanelSeT SF, PanelSeT SM, PanelSeT SFHD and PanelSeT SMX enclosures The plinth front is to be used in multi-purpose applications The nominal width is 1600mm The height is 200mm The kit is made of fixing elements, 4 corner covers, 1 front panel, 1 rear panel and 4 corners The product is made of Material : Stainless steel Net weight is 17,2kg Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth front
Application	Multi-purpose
Device composition	Fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT PanelSeT SFHD SFHD, PanelSeT SMX PanelSeT SMX
Fixing mode	By fixing element - on structure location
Material	Stainless steel 304L
Surface finish	Untreated
Height	200 mm
Width	Nominal: 1600 mm
Net weight	17.2 kg
IP degree of protection	IP20 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 160.500 cm × 20.500 cm × 19.000 cm (L × W × H), 17.400 kg
Package 2	10 PAL, 210.000 cm × 120.000 cm × 60.000 cm (L × W × H), 206.000 kg
