Schneider Electric NSYSPFX16100H

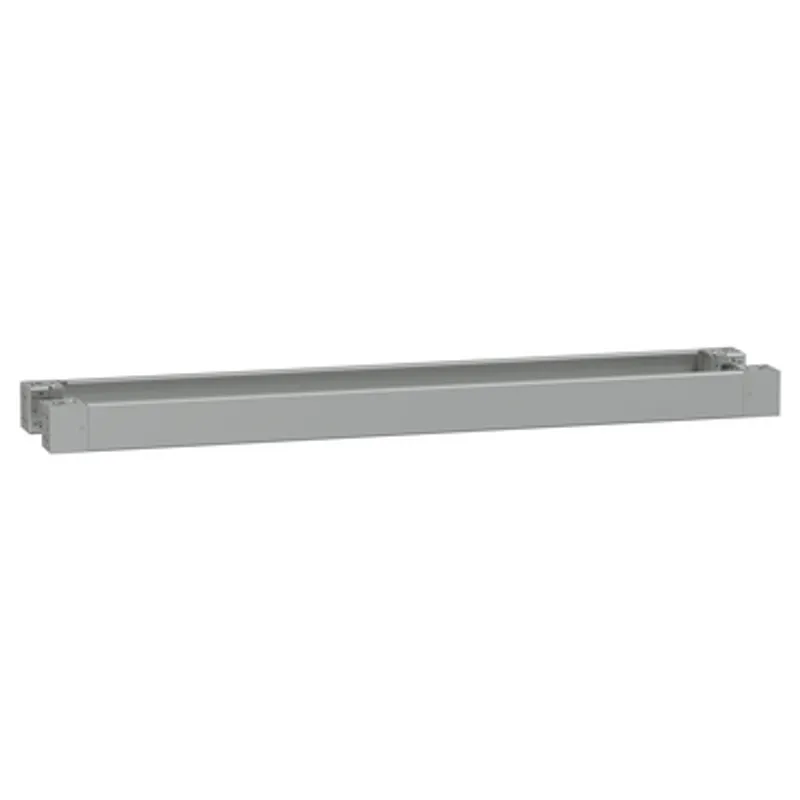

PanelSeT - plain front panel plinth W1600 H100 stainless steel 316L

MPN: NSYSPFX16100H
EAN: 3606480626159
Category: PanelSeT SMX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPFX16100H?

Plinth front to be used with PanelSeT SF, PanelSeT SM, PanelSeT SFHD and PanelSeT SMX enclosures The plinth front is to be used in multi-purpose applications The nominal width is 1600mm The height is 100mm The kit is made of fixing elements, 4 corner covers, 1 front panel, 1 rear panel and 4 corners The product is made of Material : Stainless steel Net weight is 8kg Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth front
Application	Multi-purpose
Device composition	Fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT PanelSeT SFHD SFHD, PanelSeT SMX PanelSeT SMX
Fixing mode	By fixing element - on structure location
Material	Stainless steel 316L
Surface finish	Untreated
Height	100 mm
Width	Nominal: 1600 mm
Net weight	8 kg
IP degree of protection	IP30 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 160.500 cm × 19.500 cm × 11.500 cm (L × W × H), 9.470 kg
Package 2	20 P2M, 200.000 cm × 120.000 cm × 70.000 cm (L × W × H), 250.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSPFX16100HPDF

NSYSPFX16100H: frequently asked questions

When can NSYSPFX16100H be shipped?

NSYSPFX16100H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSPFX16100H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSPFX16100H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPFX16100H, subject to availability and destination.
