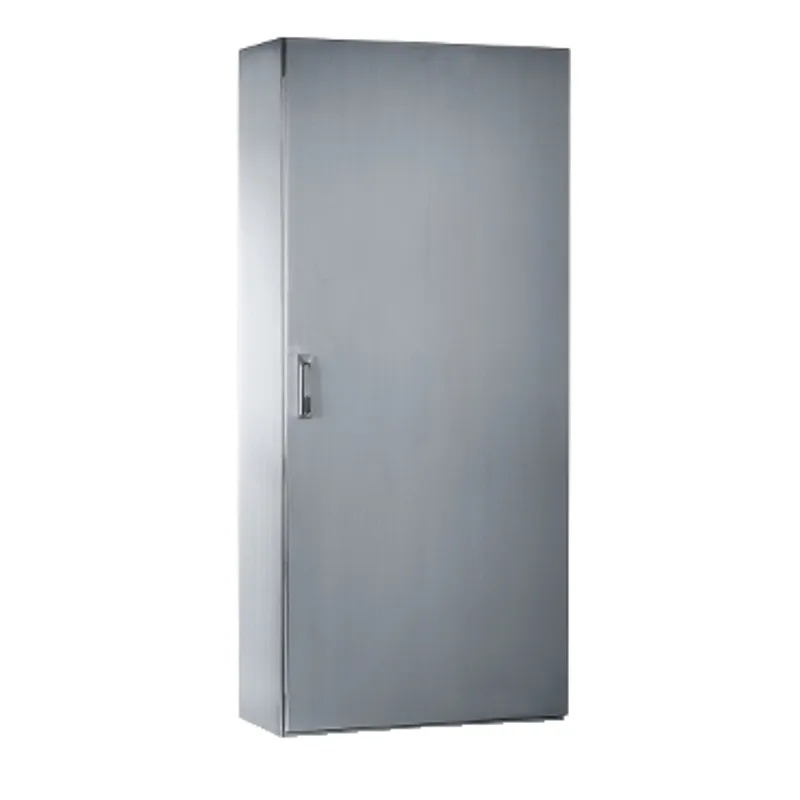

SMX 304L stainless monobloc enclosure, H1800xW800xD400mm, Scotch Brite® finish.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SMX |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 98 kg |
Shipping & availability
When can NSYSMX18840 be shipped?
NSYSMX18840 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSMX18840 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSMX18840 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSMX18840, subject to availability and destination.
Spacial SMX stainless steel 304L compact floor-standing enclosure for a multi-purpose application and resistance to corrosion It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 1800mm, 800mm and 400mm respectively The enclosure is made with a Scotch-Brite® brushed surface finish The enclosure consists of a body, a cable gland plate, one plain door, four mounting plate brackets, and a locking system with handle on the door The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a three-point lock with a handle with 5mm double-bar insert
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SMX |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 1800 mm |
| nominal width | 800 mm |
| nominal depth | 400 mm |
| product installation | Floor-standing |
| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door |
| Body type | Single piece body folded and welded |
| Door type | Plain |
| Door opening side | Reversible (120 °) |
| Number of doors | Front face: 1 door(s) |
| Lock type | 3 points lock, handle with 5 mm double-bar insert |
| Type of gland plate | Plain |
| Accessibility for operation | Front |
| Mounting plate description | Without mounting plate |
| Material | Body and door: stainless steel 304L, Handle: zamak, Hinge: stainless steel |
| Removable parts | Door by hinges, Mounting plate bracket by screws, Cable gland plate by clips |
| Surface finish | Enclosure: Scotch-Brite® brushed, Handle: painted |
| Net weight | 98 kg |
| Standards | IEC 62208, UL, CUL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | CAN/CSA 22, UL 508 |
| Environmental characteristic | Corrosive, Specific hygiene |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 193.000 cm |
| Package 1 Width | 85.000 cm |
| Package 1 Length | 49.000 cm |
| Package 1 Weight | 103.000 kg |
| Warranty | 18 months |
