Schneider Electric NSYSMX201040

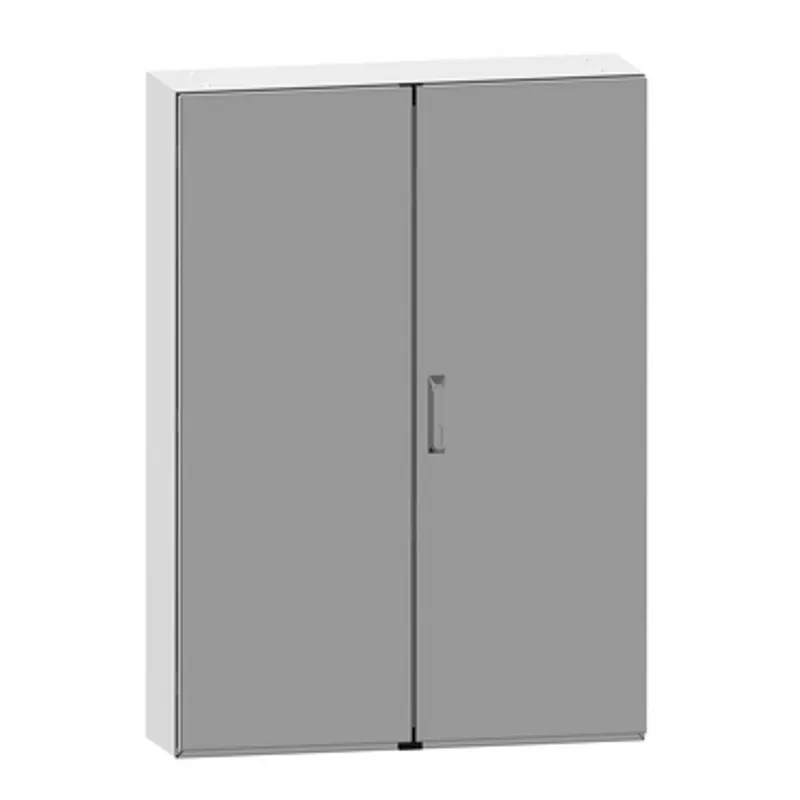

SMX 304L stainless monobloc enclosure, H2000xW1000xD400mm, Scotch Brite® finish.
- MPN
- NSYSMX201040
- EAN
- 3606480155840
- Category
- PanelSeT SMX
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSMX201040?
Spacial SMX stainless steel 304L is a multi-purpose, floor-standing enclosure with a nominal height, width and depth of 2000mm, 1000mm and 400mm respectively This enclosure is designed to withstand harsh environments, with a IK10 (IEC62262) and an IP55 rating (IEC60529) for high protection against impacts, dust and water It is made with a Scotch-Brite® brushed surface finish and consists of a body, a cable gland plate, two plain doors, four mounting plate brackets, and a locking system with handle on the door The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a three-point lock with a handle with 5mm double-bar insert The doors and the mounting plate brackets can be removed for maintenance purposes The net weight of the enclosure is 126kg and it is certified by UL 508 and CAN/CSA 22 standards
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SMX |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 2000 mm |
| nominal width | 1000 mm |
| nominal depth | 400 mm |
| product installation | Floor-standing |
| Device composition | 1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket |
| Body type | Single piece body folded and welded |
| Door type | Plain |
| Door opening side | Reversible (120 °) |
| Number of doors | Front face: 2 door(s) |
| Lock type | 3 points lock, handle with 5 mm double-bar insert |
| Type of gland plate | Plain |
| Accessibility for operation | Front |
| Mounting plate description | Without mounting plate |
| Material | Body and door: stainless steel 304L, Handle: zamak, Hinge: stainless steel |
| Removable parts | Door by hinges, Mounting plate bracket by screws, Cable gland plate by clips |
| Surface finish | Enclosure: Scotch-Brite® brushed, Handle: painted |
| Net weight | 126 kg |
| Standards | IEC 62208, UL, CUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | UL 508, CAN/CSA 22 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 49.000 cm × 105.000 cm × 213.000 cm (L × W × H), 130.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSMX201040: frequently asked questions
When can NSYSMX201040 be shipped?
NSYSMX201040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSMX201040 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSMX201040 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSMX201040, subject to availability and destination.
