Schneider Electric
NSYSMX16840SMX 304L stainless monobloc enclosure, H1600xW800xD400mm, Scotch Brite® finish.
Schneider Electric NSYSMX18640
SMX 304L stainless monobloc enclosure, H1800xW600xD400mm, Scotch Brite® finish.
- MPN
- NSYSMX18640
- EAN
- 3606480155796
- Category
- PanelSeT SMX
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

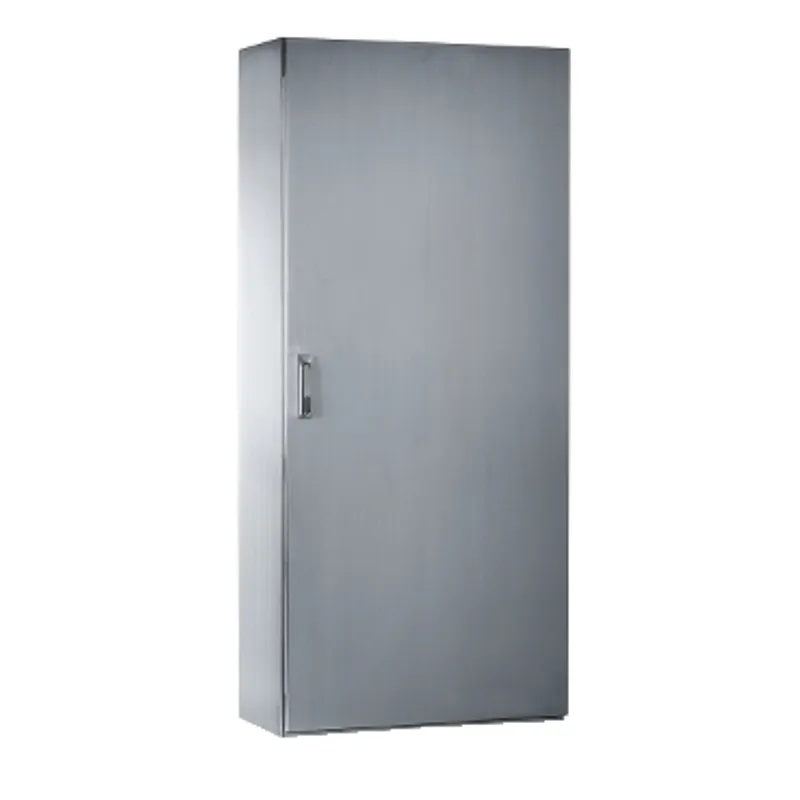

What is the Schneider Electric NSYSMX18640?
Schneider Electric SMX 304L stainless monobloc enclosure, H1800xW600xD400mm, Scotch Brite® finish., manufacturer part number NSYSMX18640. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SMX |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 1800 mm |
| nominal width | 600 mm |
| nominal depth | 400 mm |
| product installation | Floor-standing |
| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door |
| Body type | Single piece body folded and welded |
| Door type | Plain |
| Door opening side | Reversible (120 °) |
| Number of doors | Front face: 1 door(s) |
| Lock type | 3 points lock, handle with 5 mm double-bar insert |
| Type of gland plate | Plain |
| Accessibility for operation | Front |
| Mounting plate description | Without mounting plate |
| Material | Body and door: stainless steel 304L, Handle: zamak, Hinge: stainless steel |
| Removable parts | Door by hinges, Mounting plate bracket by screws, Cable gland plate by clips |
| Surface finish | Enclosure: Scotch-Brite® brushed, Handle: painted |
| Net weight | 85 kg |
| Standards | IEC 62208, UL, CUL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | CAN/CSA 22, UL 508 |
| Environmental characteristic | Corrosive, Specific hygiene |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 49.000 cm × 65.000 cm × 193.000 cm (L × W × H), 83.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSMX18640: frequently asked questions
When can NSYSMX18640 be shipped?
NSYSMX18640 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSMX18640 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSMX18640 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSMX18640, subject to availability and destination.
