Schneider Electric NSYSMX181240

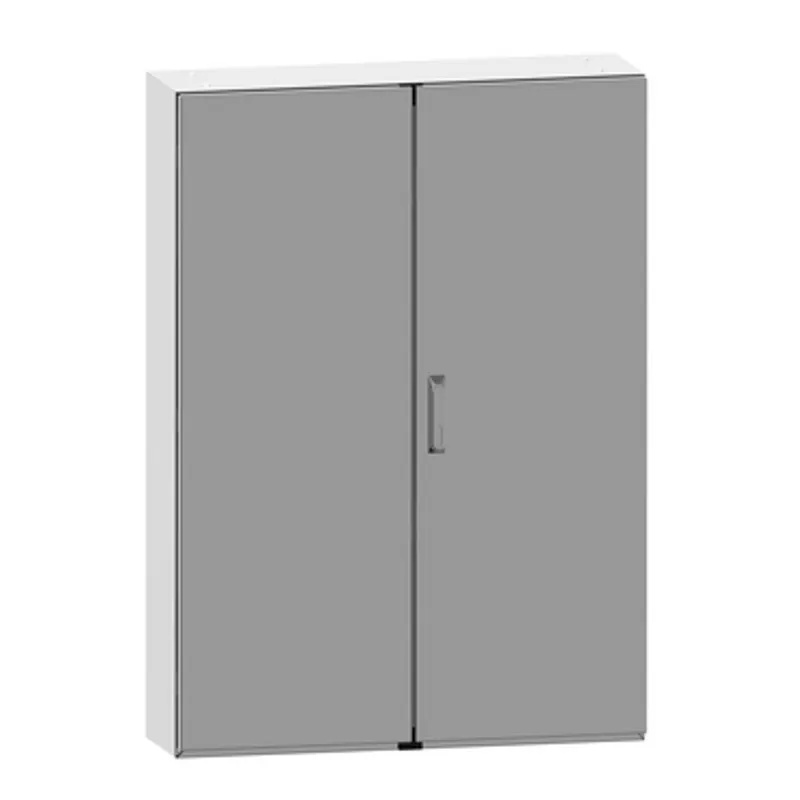

SMX 304L stainless monobloc enclosure, H1800xW1200xD400mm, Scotch Brite® finish.
- MPN
- NSYSMX181240
- EAN
- 3606480155758
- Category
- PanelSeT SMX
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSMX181240?
Spacial SMX is a multi-purpose, floor-standing enclosure made from stainless steel 304L that is designed for use in harsh environments It is corrosion-resistant and has a Scotch-Brite® brushed finish It has a nominal height, width, and depth of 1800mm, 1200mm and 400mm respectively, and a net weight of 132kg It is certified to CAN/CSA 22 and UL 508 standards and has an IK10 (IEC62262) and IP55 (IEC60529) rating The enclosure consists of a single piece body folded and welded, two plain doors, a cable gland plate, four mounting plate brackets, and a locking system with a handle on the door The doors can be opened up to 120° and are reversible The three-point lock with a handle with 5mm double-bar insert provides enhanced security The doors, mounting plate brackets, and cable gland plate are all removable for maintenance purposes The Spacial SMX is a great choice for multi-purpose applications in corrosive and specific hygiene environments
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SMX |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 1800 mm |
| nominal width | 1200 mm |
| nominal depth | 400 mm |
| product installation | Floor-standing |
| Device composition | 1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket |
| Body type | Single piece body folded and welded |
| Door type | Plain |
| Door opening side | Reversible (120 °) |
| Number of doors | Front face: 2 door(s) |
| Lock type | 3 points lock, handle with 5 mm double-bar insert |
| Type of gland plate | Plain |
| Accessibility for operation | Front |
| Mounting plate description | Without mounting plate |
| Material | Body and door: stainless steel 304L, Handle: zamak, Hinge: stainless steel |
| Removable parts | Door by hinges, Mounting plate bracket by screws, Cable gland plate by clips |
| Surface finish | Enclosure: Scotch-Brite® brushed, Handle: painted |
| Net weight | 132 kg |
| Standards | IEC 62208, UL, CUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | CAN/CSA 22, UL 508 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 49.000 cm × 125.000 cm × 193.000 cm (L × W × H), 136.000 kg |
