Schneider Electric NSYSMX181240H

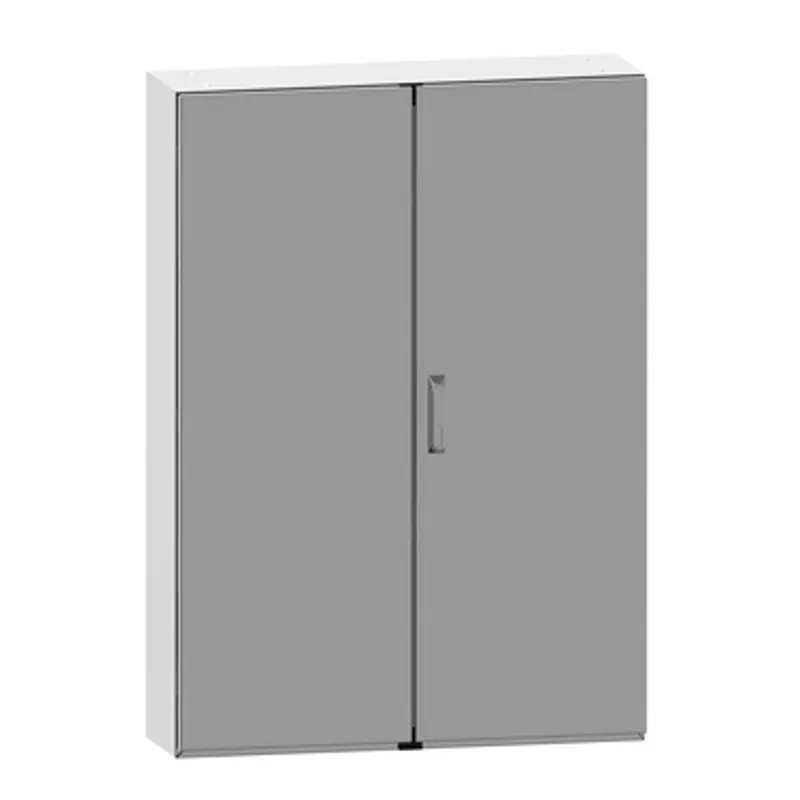

SMX 316L stainless monobloc enclosure, H1800xW1200xD400mm, Scotch Brite® finish.
- MPN
- NSYSMX181240H
- EAN
- 3606480155765
- Category
- PanelSeT SMX
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSMX181240H?
"PanelSeT SMX is a multi-purpose floor-standing enclosure made with stainless steel 316L, designed for use in harsh environments" "It is certified to UL 508 and CAN/CSA 22 standards and has a nominal height, width and depth of 1800mm, 1200mm and 400mm respectively" "It has a Scotch-Brite® brushed surface finish and a three-point lock with a handle with 5mm double-bar insert" "The enclosure consists of a body, two plain doors, a cable gland plate, four mounting plate brackets, and a locking system with handle on the door" "The doors can be opened up to 120°, allowing easy access to the equipment inside" "The enclosure has a high resistance to dust and water with an IP55 rating (IEC60529) and can withstand high impact due its IK10 (IEC62262)" "The doors and the mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 132kg"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SMX |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 1800 mm |
| nominal width | 1200 mm |
| nominal depth | 400 mm |
| product installation | Floor-standing |
| Device composition | 1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket |
| Body type | Single piece body folded and welded |
| Door type | Plain |
| Door opening side | Reversible (120 °) |
| Number of doors | Front face: 2 door(s) |
| Lock type | 3 points lock, handle with 5 mm double-bar insert |
| Type of gland plate | Plain |
| Accessibility for operation | Front |
| Mounting plate description | Without mounting plate |
| Material | Handle: zamak, Hinge: stainless steel, Body and door: stainless steel 316L |
| Removable parts | Door by hinges, Mounting plate bracket by screws, Cable gland plate by clips |
| Surface finish | Enclosure: Scotch-Brite® brushed, Handle: painted |
| Net weight | 132 kg |
| Standards | IEC 62208, UL, CUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | UL 508, CAN/CSA 22 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 49.000 cm × 125.000 cm × 193.000 cm (L × W × H), 136.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSMX181240H: frequently asked questions
When can NSYSMX181240H be shipped?
NSYSMX181240H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSMX181240H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSMX181240H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSMX181240H, subject to availability and destination.
