Schneider Electric NSYSMX141030

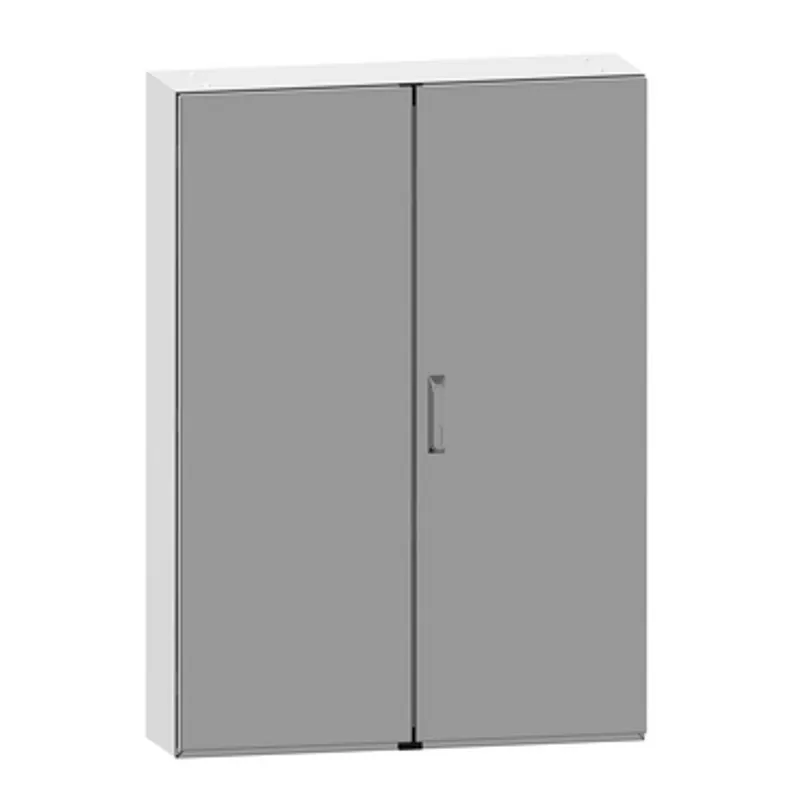

SMX 304L stainless monobloc enclosure, H1400xW1000xD300mm, Scotch Brite® finish.
- MPN
- NSYSMX141030
- EAN
- 3606480155710
- Category
- PanelSeT SMX
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSMX141030?
"PanelSeT SMX stainless steel 304L floor-standing enclosure is designed for multi-purpose applications and resistance to corrosion" "It is designed for use in harsh environments and can withstand high impact due to its IK10 (IEC62262) rating and its IP55 (IEC60529) rating for dust and water resistance" "This enclosure has a nominal height, width and depth of 1400mm, 1000mm and 300mm respectively" "The enclosure is made with a Scotch-Brite® brushed surface finish" "The enclosure consists of a body, a cable gland plate, two plain doors, four mounting plate brackets, and a locking system with handle on the door" "The doors can be opened up to 120°, allowing easy access to the equipment inside" "The enclosure has a three-point lock with a handle with 5mm double-bar insert" "The doors and the mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 89kg and it is certified to UL 508 and CAN/CSA 22 standards"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SMX |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 1400 mm |
| nominal width | 1000 mm |
| nominal depth | 300 mm |
| product installation | Floor-standing |
| Device composition | 1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket |
| Body type | Single piece body folded and welded |
| Door type | Plain |
| Door opening side | Reversible (120 °) |
| Number of doors | Front face: 2 door(s) |
| Lock type | 3 points lock, handle with 5 mm double-bar insert |
| Type of gland plate | Plain |
| Accessibility for operation | Front |
| Mounting plate description | Without mounting plate |
| Material | Body and door: stainless steel 304L, Handle: zamak, Hinge: stainless steel |
| Removable parts | Door by hinges, Mounting plate bracket by screws, Cable gland plate by clips |
| Surface finish | Enclosure: Scotch-Brite® brushed, Handle: painted |
| Net weight | 89 kg |
| Standards | IEC 62208, UL, CUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | UL 508, CAN/CSA 22 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 39.000 cm × 105.000 cm × 153.000 cm (L × W × H), 88.000 kg |
