Schneider Electric NSYSDR200B

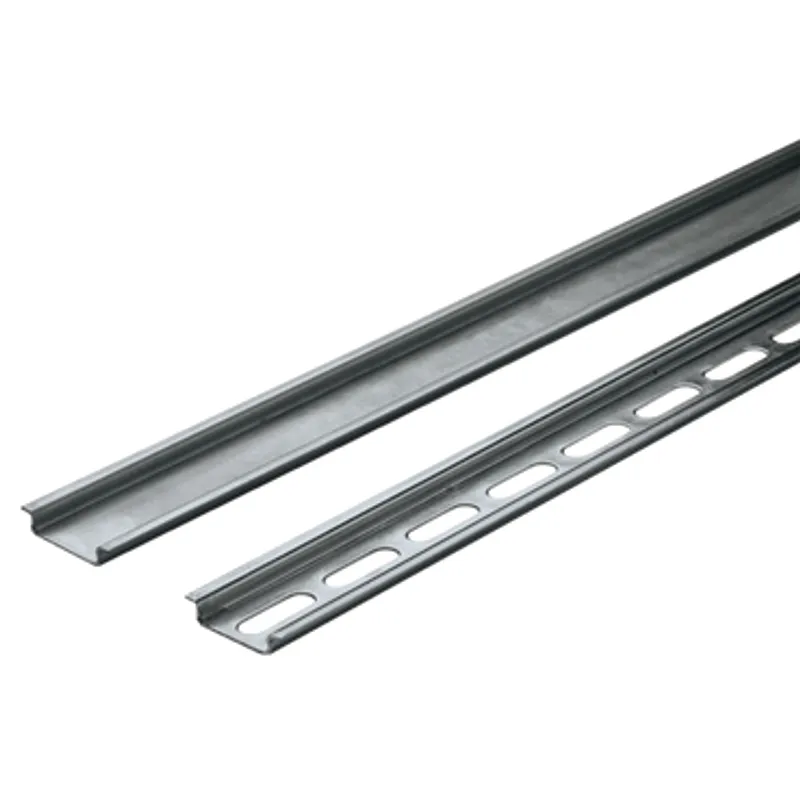

One symmetric mounting rail 35x7.5 L2000mm type B, Order by Multiples of 10 units
- MPN
- NSYSDR200B
- EAN
- 3606480184321
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSDR200B?
Set of 10 symmetrical DIN rails for equipment. The rail is made from not perforated 1mm galvanised steel. The nominal width is 35mm. The nominal height is 7.2mm. The product length is 2000mm. Fixed with a pitch of 25mm.
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Rail |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | - |
| Range compatibility | PanelSeT |
| Device composition | 1 rail |
| Quantity per set | Set of 10 |
| Material | Galvanised steel |
| Surface finish | Not perforated |
| Fixing mode | By fixing element - structure of enclosure location |
| Adjustment | Continuous adjustment, Pitch 25 mm |
| Length | 2000 mm |
| Height | Nominal: 7.2 mm |
| Width | Nominal: 35 mm |
| thickness | 1 mm |
Packaging
| Package 1 | 1 PCE, 202.000 cm × 4.000 cm × 0.400 cm (L × W × H), 670.000 g |
| Package 2 | 10 CAR, 202.000 cm × 4.000 cm × 4.000 cm (L × W × H), 6.700 kg |
| Package 3 | 500 PAL, 120.000 cm × 202.000 cm × 50.000 cm (L × W × H), 375.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSDR200B: frequently asked questions
When can NSYSDR200B be shipped?
NSYSDR200B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSDR200B in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSDR200B and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSDR200B, subject to availability and destination.
