Schneider Electric NSYSDCR10
PanelSeT SF/SM door cross rails - nominal width: 1000 mm
- MPN
- NSYSDCR10
- EAN
- 3606485131337
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

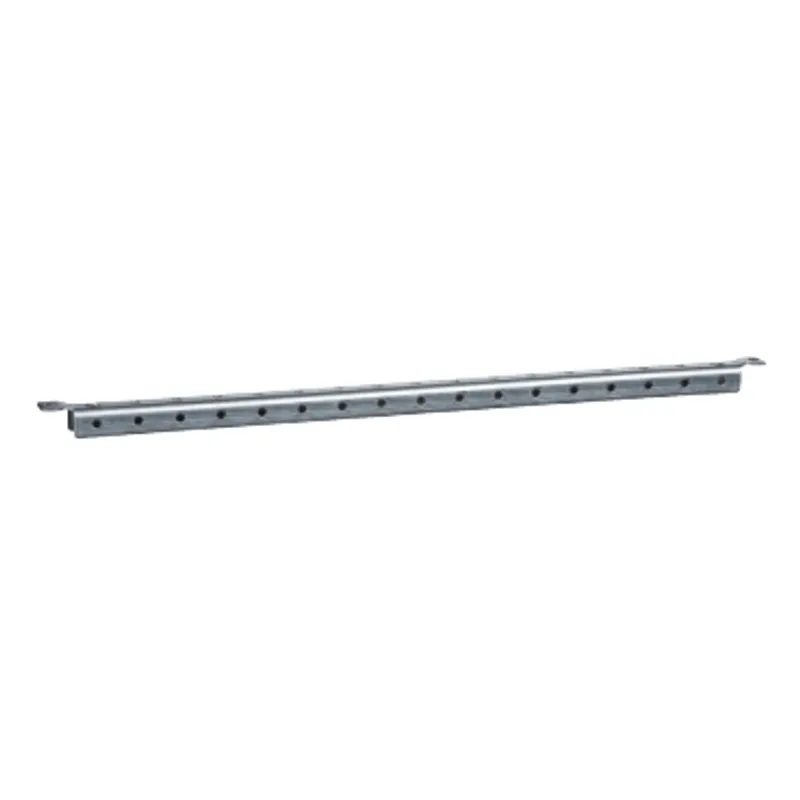

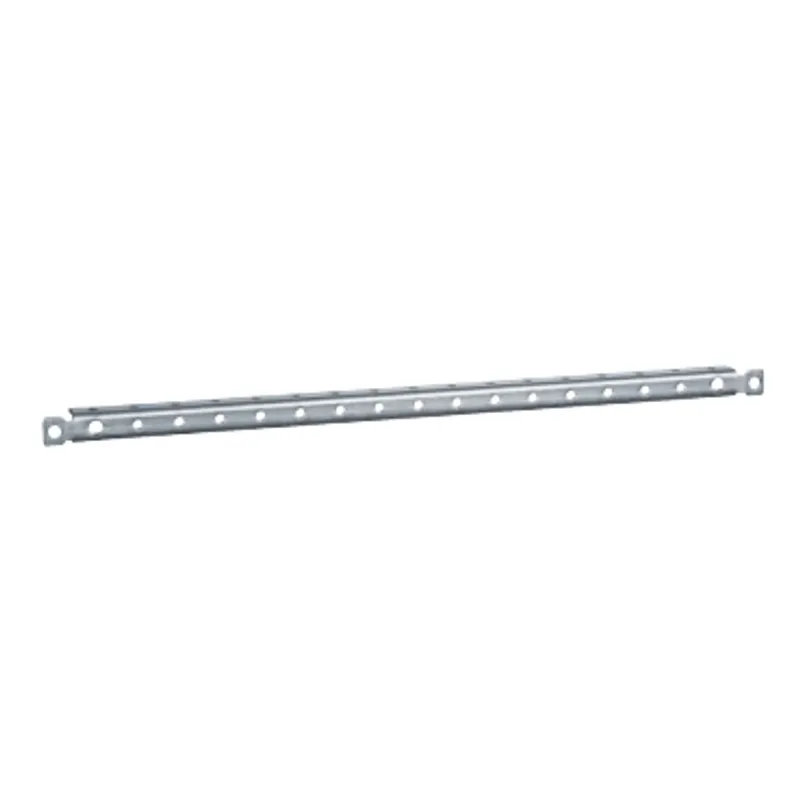

What is the Schneider Electric NSYSDCR10?
Spacial SF / SM door cross rails. Door width 1000 mm. Direct fixing on the door reinforcement frame. Equipped with 5.2 mm drillings on a 25 mm pitch. In zinc-plated steel. Set of 2.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Door cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | On door reinforcement frame |
| Range compatibility | PanelSeT SF and SM enclosures |
| Device composition | Fixing elements, 2 x cross rails |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Adjustment | Adjustable in height every 25 mm for on door reinforcement frame |
| Height | 18 mm |
| Width | Nominal: 1000 mm, Fixing centers: 850 mm |
| Depth | 18.6 mm |
Packaging
| Package 1 | 1 PCE, 88.000 cm × 5.000 cm × 3.500 cm (L × W × H), 1.276 kg |
| Package 2 | 200 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 278.000 kg |
