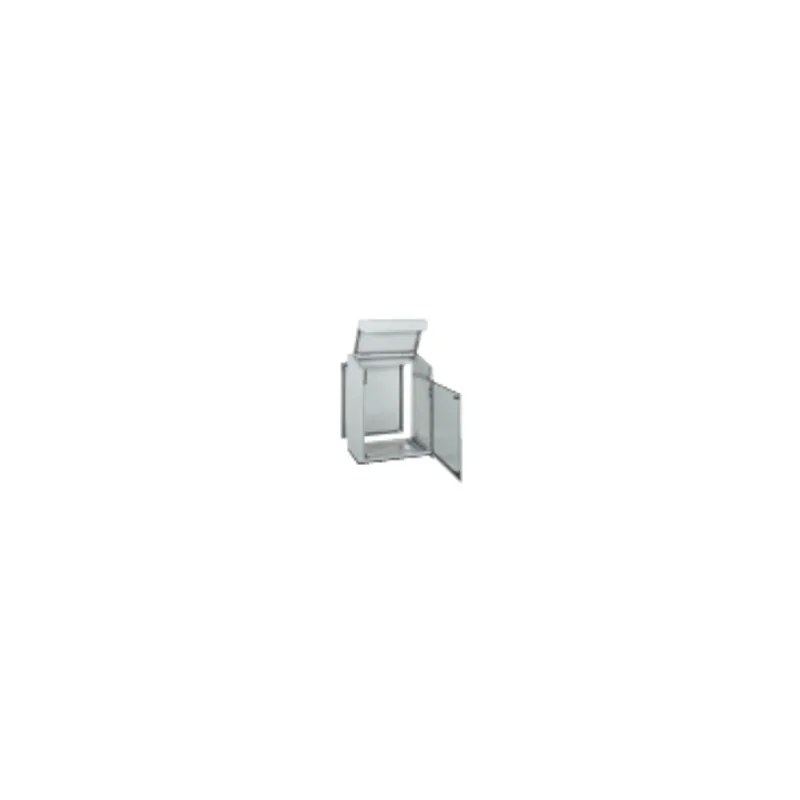

PanelSeT SD Compact control desk with rear panel - H1000xW800xD597 - IP55
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSet SD |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 65 kg |
Shipping & availability
When can NSYSD8R be shipped?
NSYSD8R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSD8R in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSD8R and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSD8R, subject to availability and destination.
Spacial SD floor-standing monobloc control desk with rear panel 1000mm (height), 800mm (width) and 597mm (depth) Single piece structure folded and welded body made from 1,5mm steel The enclosure is made up of 1 structure, 1 door, 2 locks for door, 4 adjustment rails, 1 cable gland plate, 2 pneumatic stays for desk lid, 1 rear panel and 3 top plates for on top of control desk Easy removable and reversible door opening to 120° Removable rear panel enables the installation of two mounting plates back-to-back and ensures full accessibility from the front and the rear Locking by 2 points lock, 3mm double-bar
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SD |
| Enclosure type | Multi-purpose |
| Category | Monobloc control desk with rear panel |
| Nominal height | 1000 mm |
| Nominal width | 800 mm |
| Nominal depth | 597 mm |
| Product installation | Floor-standing |
| Device composition | 1 structure, 1 door, 2 lock: door, 4 adjustment rail, 1 cable gland plate, 2 pneumatic stay: desk lid, 1 rear panel, 3 top plate: on top of control desk |
| Body type | Single piece structure folded and welded |
| Door type | Plain |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible 120 ° door |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | 1 entry plate |
| Accessibility for operation | Front, Rear |
| Removable parts | Door by hinges, Desk lid by hinges, Cable gland plate by clipping screws, Blanking covers by screws, Rear panel by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| thickness | 1.5 mm |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 62.000 cm |
| Package 1 Width | 82.000 cm |
| Package 1 Length | 118.000 cm |
| Package 1 Weight | 65.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 130.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 151.000 kg |
| Warranty | 18 months |
