Schneider Electric NSYSDC63

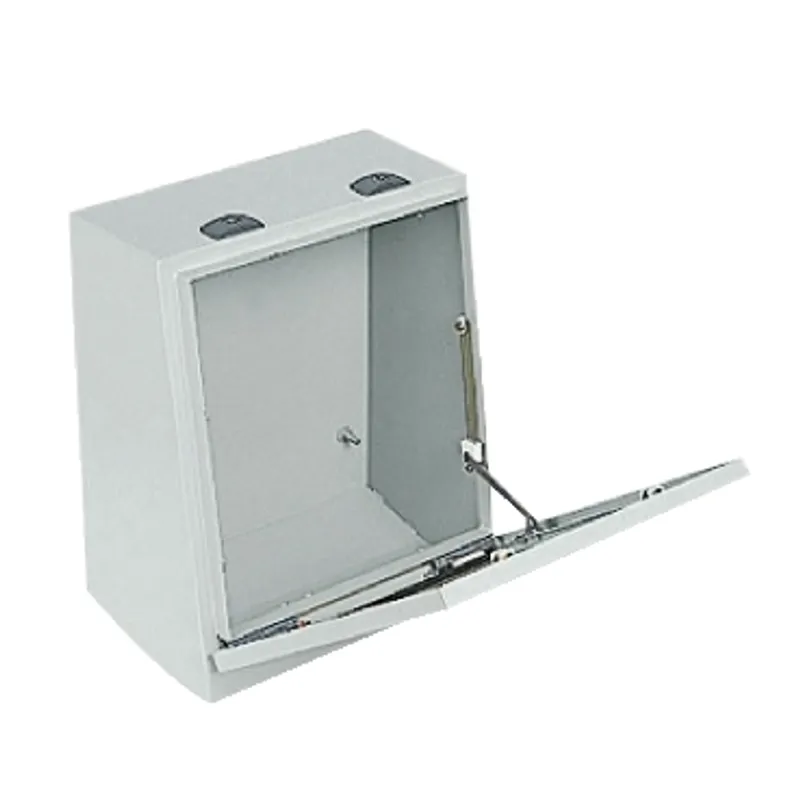

Modular console for PanelSeT SD Compact control desk with rear panel - W600xD300
- MPN
- NSYSDC63
- EAN
- 3606480154515
- Category
- PanelSet SD
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSDC63?
Hinged modular console cover made from 1,5mm thick grey sheet steel (RAL 7035) for PanelSeT SD The console is equipped with a pneumatic opening stay with 75 ° opening angle The width is 600mm The height is 484mm The nominal depth is 300mm and real depth is 361mm Fixed on top of control desk Locking by 2 points lock, 3mm double-bar Anti-corrosion protection is ensured by epoxy-polyester powder coating The kit is made up of 1 door, 1 body, 1 retainer, 1 rear panel, 4 step slides and 2 locks Ingress protection rating is IP55 conforming to IEC 60529 Mechanical protection rating is IK10 conforming to IEC 62262
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Interface accessory |
| Product or component type | Modular consoles |
| Anwendung | Multi-purpose |
| Nennmaße des Gehäuses | - |
| Mounting location | Top of control desk |
| Mounting support | Blanking covers, it depends on the modular console requirement |
| Range compatibility | PanelSeT PanelSeT SD |
| Device composition | 1 door, 1 body, 1 retainer, 1 rear panel, 4 step slides, 2 lock |
| Quantity per set | Set of 1 |
| Material | Sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Lock type | 2 points lock, 3 mm double-bar |
| Fixing mode | By fixing element - control desk location |
| Operating angle | 75 ° |
| Height | 484 mm |
| Width | 600 mm |
| Depth | Nominal : 300 mm, Real : 361 mm |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 61.500 cm × 61.500 cm × 38.000 cm (L × W × H), 22.800 kg |
| Package 2 | 8 PAM, 120.000 cm × 100.000 cm × 170.000 cm (L × W × H), 195.160 kg |
