Schneider Electric NSYSDCR4

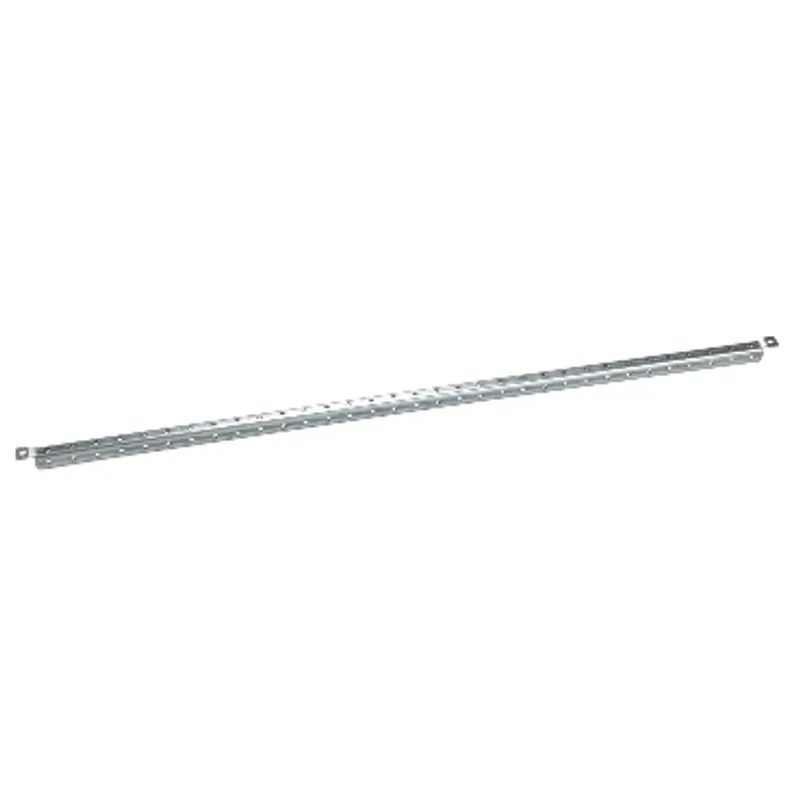

PanelSeT SF door cross rails - nominal width: 400 mm
- MPN
- NSYSDCR4
- EAN
- 3606485131344
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSDCR4?
Spacial SF / SM door cross rails. Door width 400 mm. Direct fixing on the door reinforcement frame. Equipped with 5.2 mm drillings on a 25 mm pitch. In zinc-plated steel. Set of 2.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Door cross rail |
| Application | Multi-purpose |
| Mounting location | On door reinforcement frame |
| Range compatibility | PanelSeT SF and SM enclosures |
| Device composition | Fixing elements, 2 x cross rails |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Adjustment | Adjustable in height every 25 mm for on door reinforcement frame |
| Height | 18 mm |
| Width | Fixing centers: 250 mm, Nominal: 400 mm |
| Depth | 18.6 mm |
Packaging
| Package 1 | 1 PCE, 28.000 cm × 5.000 cm × 3.500 cm (L × W × H), 380.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSDCR4: frequently asked questions
When can NSYSDCR4 be shipped?
NSYSDCR4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSDCR4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSDCR4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSDCR4, subject to availability and destination.
