Schneider Electric NSYS3X8625

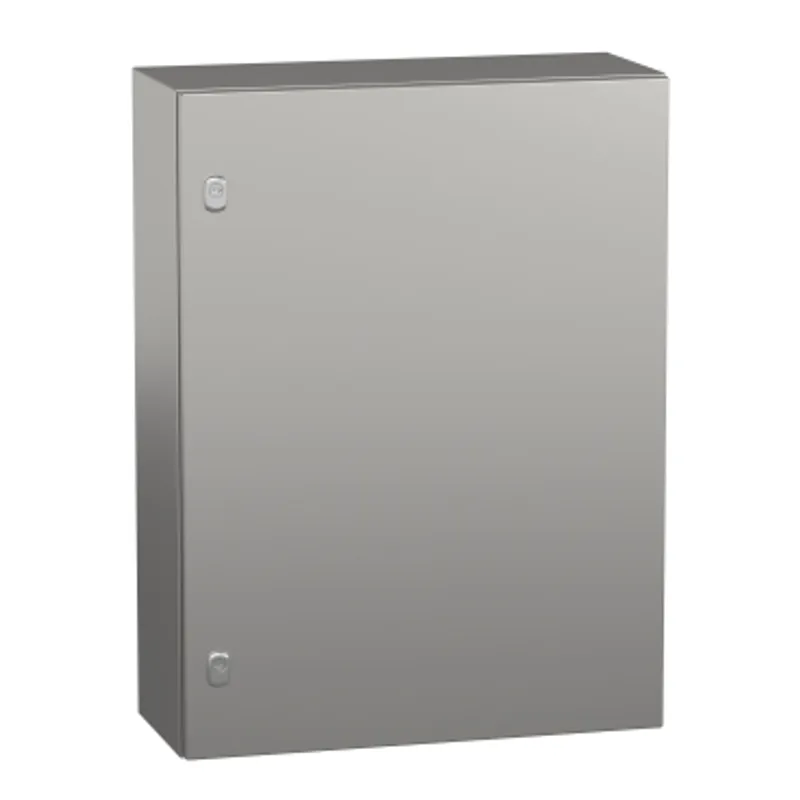

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 800x600x250mm, IP66
- MPN
- NSYS3X8625
- EAN
- 3606480155291
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X8625?

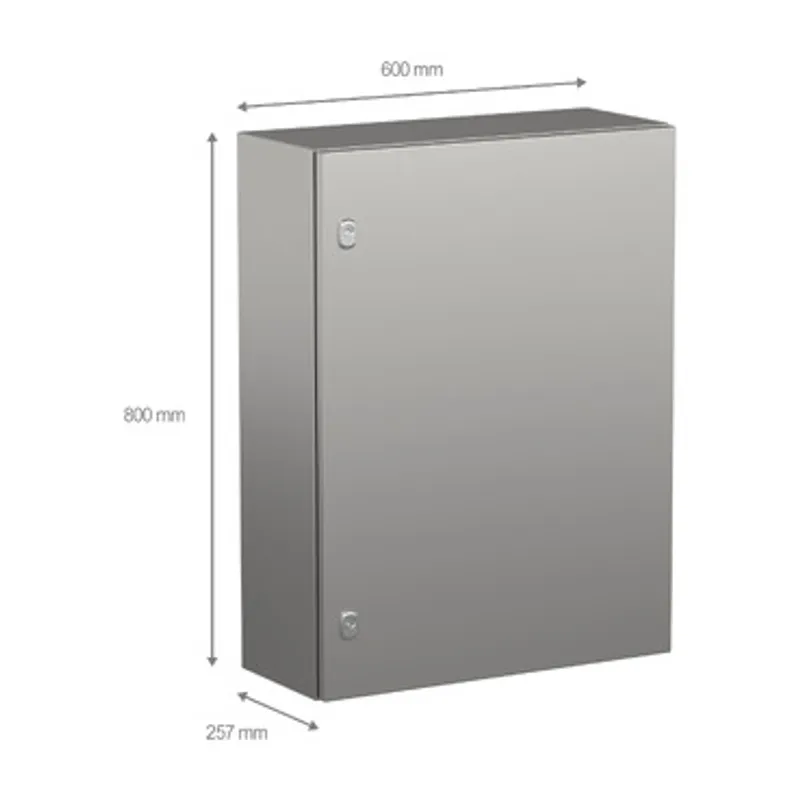

Spacial S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and resistance to corrosion It has a nominal height, width and depth of 800mm, 600mm and 250mm respectively The enclosure is made with Scotch-Brite® brushed surface finish and consists of a body, a plain door, two locks and two perforated vertical profiles The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a two lock points lock with a 3mm double-bar insert The door can be removed for maintenance purposes The enclosure is designed to withstand high impact due to its IK10 (IEC62262) rating and is highly resistant to dust and water with an IP66 rating (IEC60529) The net weight of the enclosure is 22,474kg Enclosure Scotch-Brite® brushed finish.
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 800 mm |
| nominal width | 600 mm |
| nominal depth | 250 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 door, 2 lock: door, 2 perforated vertical profile drilled: door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 22.474 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | CAN/CSA 22, UL 508 type A |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 82.000 cm × 61.500 cm × 27.000 cm (L × W × H), 20.000 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 196.000 cm (L × W × H), 253.000 kg |
