Schneider Electric NSYS3X8830H

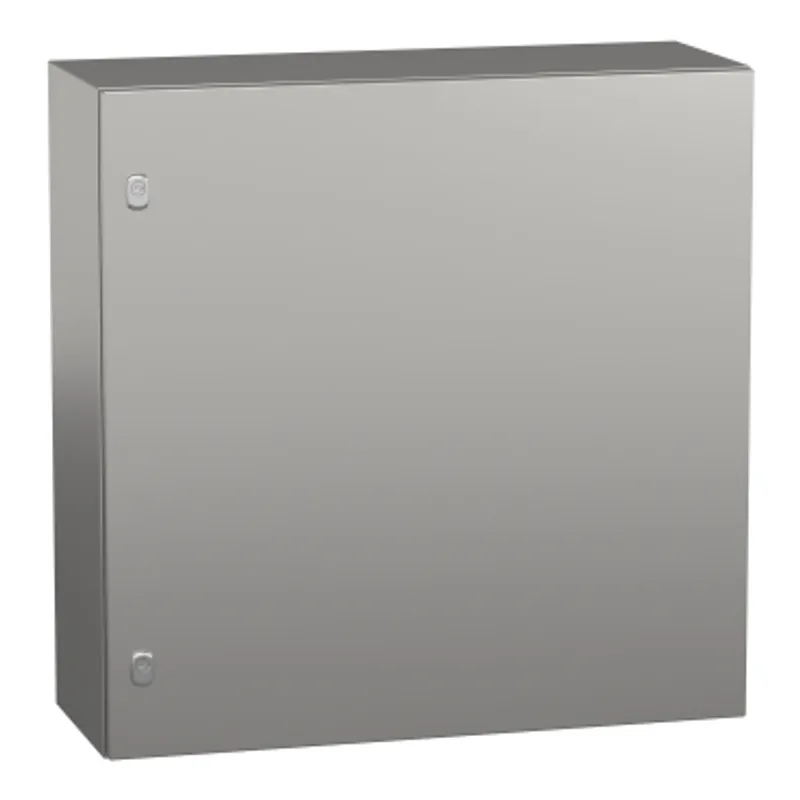

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 800x800x300mm, IP66
- MPN
- NSYS3X8830H
- EAN
- 3606480155338
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X8830H?
"PanelSet S3X stainless steel 316L wall-mounting enclosure is a multi-purpose device designed for harsh environments" "It is certified with UL 508 type A and CAN/CSA 22, and has a nominal height, width and depth of 800mm, 800mm and 300mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish and has a two point lock with a 3mm double-bar insert" "It has an IK10 (IEC 62262) and IP66 (IEC 60529) ratings, making it resistant to high impact and dust and water respectively" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is also possible to change the opening side of the door (reversible)" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 32kg"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 800 mm |
| nominal width | 800 mm |
| nominal depth | 300 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 door, 2 lock: door, 2 perforated vertical profile drilled: door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Lock: zamak, Hinge: stainless steel, Body and door: stainless steel 316L |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 32 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 83.000 cm × 82.000 cm × 32.000 cm (L × W × H), 30.520 kg |
| Package 2 | 8 PAM, 120.000 cm × 100.000 cm × 180.000 cm (L × W × H), 258.120 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3X8830H: frequently asked questions
When can NSYS3X8830H be shipped?
NSYS3X8830H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3X8830H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3X8830H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3X8830H, subject to availability and destination.
