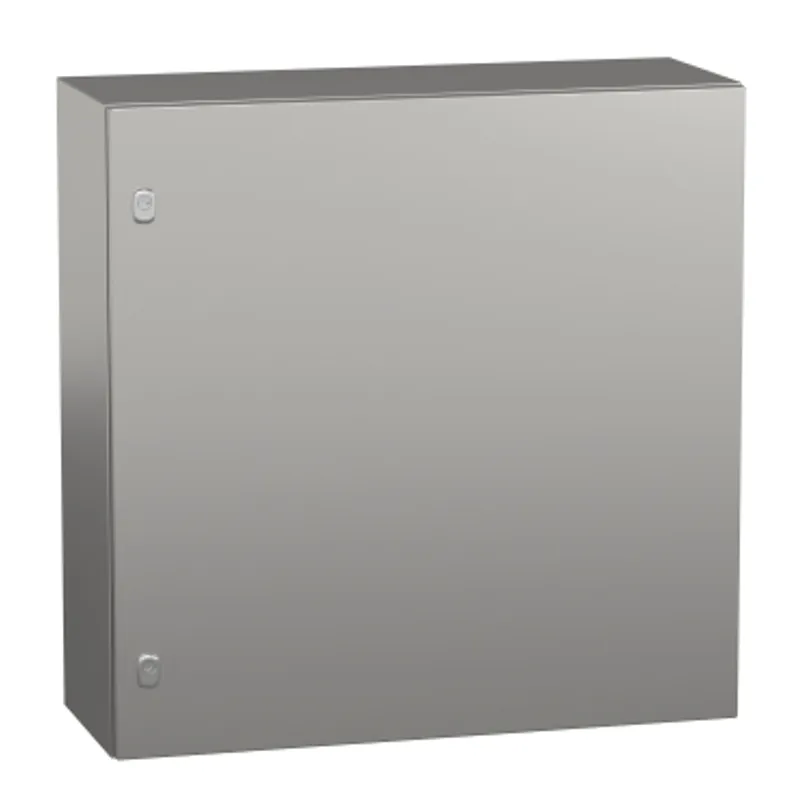

Schneider Electric NSYS3X8830
Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 800x800x300mm, IP66
- MPN
- NSYS3X8830
- EAN
- 3606480155321
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X8830?
"PanelSet S3X is a stainless steel 304L wall-mounting enclosure designed for a multi-purpose application and resistance to corrosion" "It is certified to UL 508 type A and CAN/CSA 22 standards, and has an IK10 (IEC 62262) rating for impact resistance and an IP66 (IEC 60529) rating for dust and water resistance" "The enclosure has a nominal height, width and depth of 800mm, 800mm and 300mm respectively" "It is made with Scotch-Brite® brushed surface finish and features a single piece body with a cross-shaped structure and gutter shaped front rail" "The door is plain and is reversible up to 120°, and it is secured with two lock points lock and 3mm double-bar insert" "The door is removable for maintenance purposes" "The net weight of the enclosure is 32kg"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 800 mm |
| nominal width | 800 mm |
| nominal depth | 300 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 door, 2 lock: door, 2 perforated vertical profile drilled: door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 32 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 82.000 cm × 82.000 cm × 32.000 cm (L × W × H), 30.400 kg |
| Package 2 | 8 PAM, 120.000 cm × 100.000 cm × 179.000 cm (L × W × H), 255.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3X8830: frequently asked questions
When can NSYS3X8830 be shipped?
NSYS3X8830 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3X8830 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3X8830 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3X8830, subject to availability and destination.
