Schneider Electric NSYS3X7525H

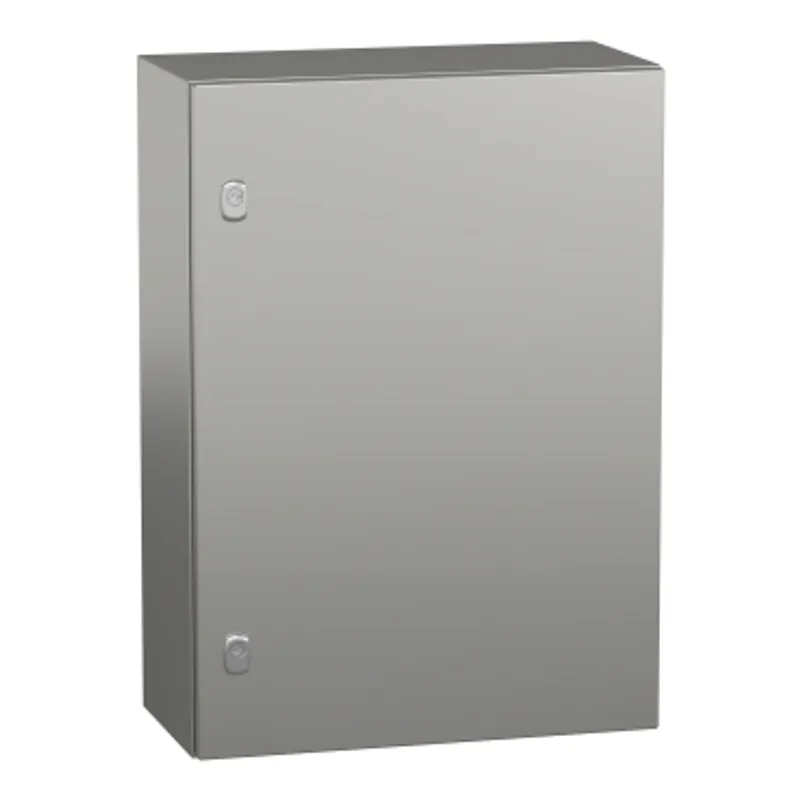

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 700x500x250mm, IP66
- MPN
- NSYS3X7525H
- EAN
- 3606480155277
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X7525H?
"PanelSet S3X stainless steel 316L wall-mounting enclosure is a multi-purpose enclosure designed for use in harsh environments" "It is corrosion-resistant and has an IK10 (IEC 62262) rating for high impact resistance and an IP66 (IEC 60529) rating for dust and water resistance" "The enclosure has a nominal height, width and depth of 700mm, 500mm and 250mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish and consists of a body, a plain door and two locks" "The door can be opened up to 120° and the opening side can be reversed" "The door has two lock points with a 3mm double-bar insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 17,44kg" "It is certified by UL 508 type A and CAN/CSA 22, and is compliant with IEC 62208 standards"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |

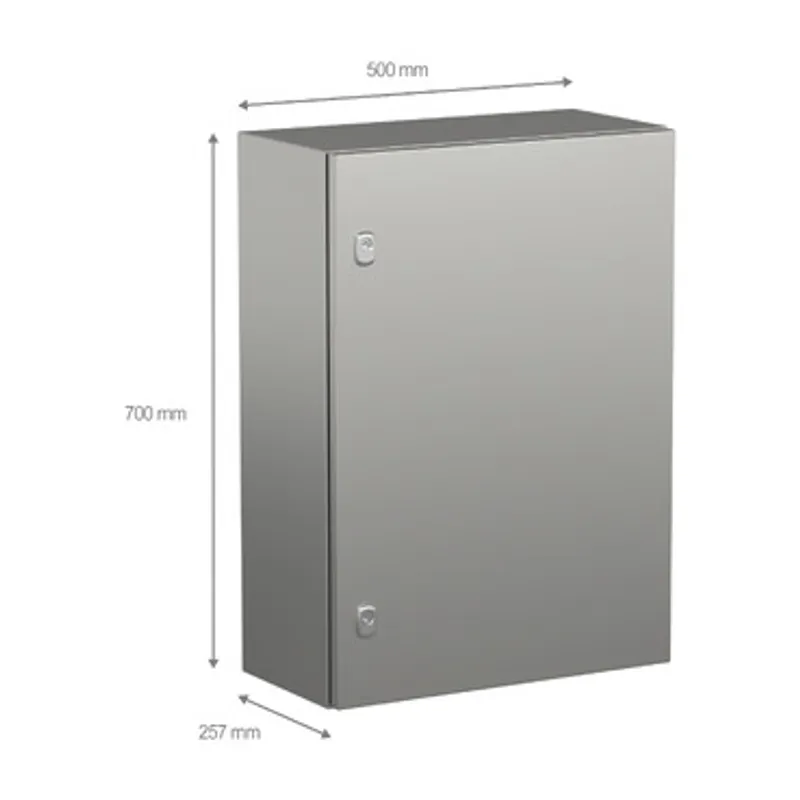

| nominal height | 700 mm |
| nominal width | 500 mm |
| nominal depth | 250 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 door, 2 lock: door, 2 perforated vertical profile drilled: door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Lock: zamak, Hinge: stainless steel, Body and door: stainless steel 316L |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 17.44 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 71.000 cm × 51.000 cm × 27.000 cm (L × W × H), 17.642 kg |
| Package 2 | 21 PAM, 120.000 cm × 100.000 cm × 195.000 cm (L × W × H), 383.000 kg |
