NSYS3X801030Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, double plain door, 800x1000x300mm, IP55
Schneider Electric NSYS3X8625T
Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, glazed door, 800x600x250mm, IP66
- MPN
- NSYS3X8625T
- EAN
- 3606480155314
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X8625T?

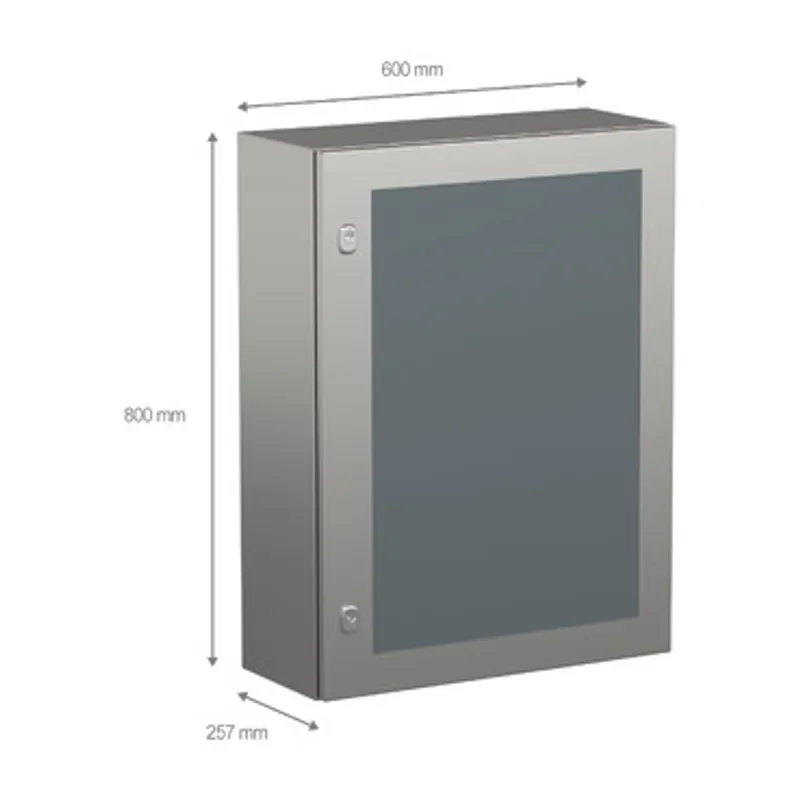

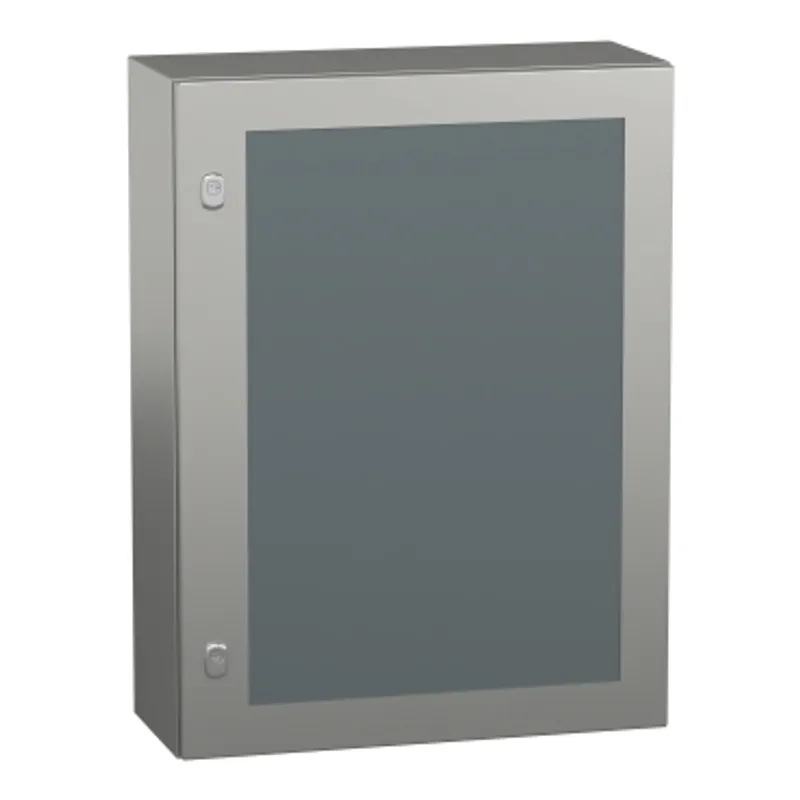

Spacial S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and it is perfect for harsh environments It has an IK08 rating (IEC62262) and an IP66 rating (IEC60529) providing a high level of protection against dust and water It has a nominal height, width and depth of 800mm, 600mm and 250mm respectively The enclosure has a Scotch-Brite® brushed surface finish and it is composed of a body, a Securit glass door and a two points lock with a 3mm double-bar insert The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door can be removed for maintenance purposes
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 800 mm |
| nominal width | 600 mm |
| nominal depth | 250 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 lock: door, 1 door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Glazed |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel, Door: Securit glass |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 22.58 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 82.500 cm × 61.000 cm × 82.500 cm (L × W × H), 21.000 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 178.000 cm (L × W × H), 265.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3X8625T: frequently asked questions
When can NSYS3X8625T be shipped?
NSYS3X8625T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3X8625T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3X8625T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3X8625T, subject to availability and destination.
