Schneider Electric NSYS3DEX7525

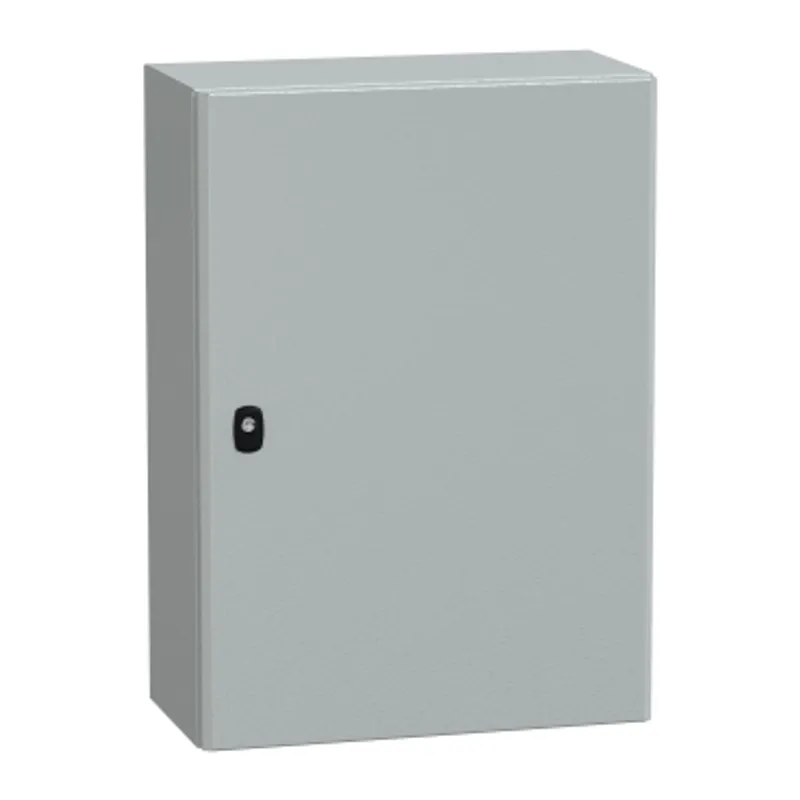

PanelSeT S3DEX (ATEX certified) H700xW500xD250 .IP66 IK10 RAL7035.
- MPN
- NSYS3DEX7525
- EAN
- 3606480158605
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3DEX7525?
"The PanelSeT S3DEX is a wall-mounting ATEX certified enclosure designed for use in potentially explosive atmospheres" "It has a nominal height, width, and depth of 700mm, 500mm, and 250mm, respectively" "The enclosure is grey in colour (RAL 7035) with an epoxy-polyester powder surface finish" "It has a plain door with a 3 points lock and 3mm double-bar, allowing it to be opened up to 120° and the opening side is reversible" "The door can be removed for maintenance purposes" "It is compliant with EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009 and is certified with NEMA 4X/13, IK10 (IEC 62262), and IP66 (IEC 60529) with a single door" "The net weight of the enclosure is 15kg" "It features a single piece body and gutter-shaped front rail double sheet thickness" "The marking is II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC" "The accessibility for operation is from the front"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DEX |
| Application | ATEX certified application |
| Category | Compact enclosure |
| Enclosure nominal height | 700 mm |
| Enclosure nominal width | 500 mm |
| Enclosure nominal depth | 250 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
| Product destination | For potentially explosive atmosphere |
| Device composition | 1 door, 1 lock, body with clamped blind nut |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009 |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC |
| Net weight | 15 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 (enclosures with single door) |
Packaging
| Package 1 | 1 PCE, 72.000 cm × 52.000 cm × 29.500 cm (L × W × H), 15.056 kg |
| Package 2 | 12 P12, 120.000 cm × 80.000 cm × 157.500 cm (L × W × H), 194.000 kg |
