Schneider Electric NSYS3DM10815T

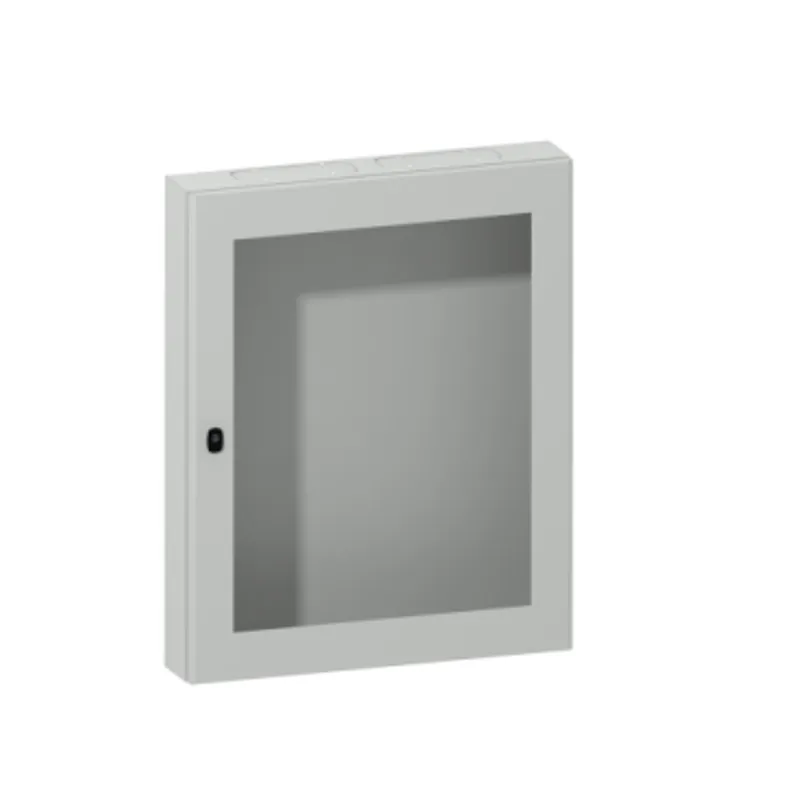

PanelSeT S3DM H1000xW800xD150.IP66 IK10 RAL7035. top and bottom
- MPN
- NSYS3DM10815T
- EAN
- 3606480158575
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3DM10815T?
This S3DM is a wall-mounting modular distribution enclosure designed for installation of modular chassis DLM It is made of steel body and steel security glass door The enclosure has nominal dimensions of 1000mm height, 800mm width, and 150mm depth The doors are reversible up to 120° and secured with a three-point lock and have a 3mm double-bar locking system The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish The enclosure comes with two cable gland plates (top and bottom), one body, one door, one 3mm double locking system, and one document holder The enclosure is rated IK08 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection It conforms to UL 508 A 2007, IEC 61969-3 2011 (Bureau Veritas), IEC 61439-5 2010 (Bureau Veritas), IEC 62208 2011 (DEKRA), and ISO 12944 2007 (Bureau Veritas) The enclosure is also certified by BV, LR, UL, GL, DNV, and cUL It is designed for easy accessibility from the front This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is BV, DNV, GL, LR, c. UL certified.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DM |
| Application | Modular distribution application |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Product destination | For installation of modular chassis DLM |
| Device composition | 2 cable gland plate: top and bottom, 1 body, 1 door, 1 lock |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | GL, DNV, cUL, BV, UL |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 103.000 cm × 82.000 cm × 21.000 cm (L × W × H), 30.000 kg |
| Package 2 | 8 PAM, 120.000 cm × 100.000 cm × 185.000 cm (L × W × H), 284.000 kg |
