Schneider Electric NSYS3DEX5420

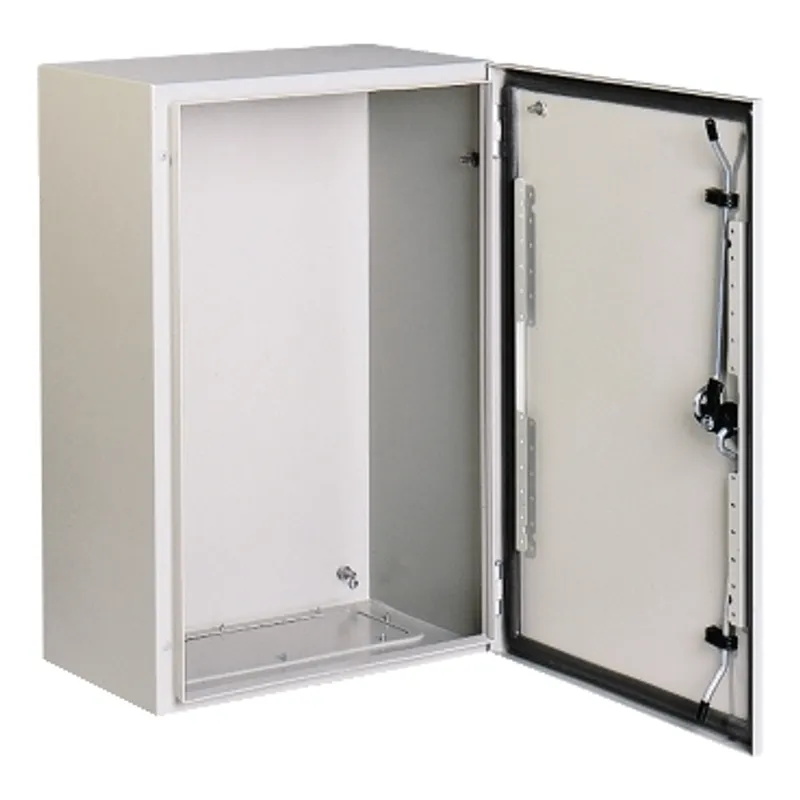

PanelSeT S3DEX (ATEX certified) H500xW400xD200 .IP66 IK10 RAL7035.
- MPN
- NSYS3DEX5420
- EAN
- 3606480158636
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3DEX5420?
The Spacial S3DEX is an ATEX certified wall-mounting enclosure made of steel, designed to provide superior protection in potentially explosive atmospheres It has a nominal height, width, and depth of 500mm, 400mm, and 200mm, respectively The enclosure is grey in colour (RAL 7035) with an epoxy-polyester powder surface finish It has a plain door with a double-bar lock and hinges, allowing it to be opened up to 120° and the opening side is reversible The door can be removed for maintenance purposes It is certified by EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009, NEMA 4X/13, IK10 (IEC 62262), and IP66 (IEC 60529) The net weight of the enclosure is 9,5kg It features a single piece body and gutter-shaped front rail double sheet thickness
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DEX |
| Application | ATEX certified application |
| Category | Compact enclosure |
| Enclosure nominal height | 500 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
| Product destination | For potentially explosive atmosphere |
| Device composition | 1 door, 1 lock, body with clamped blind nut |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | Double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009 |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC |
| Net weight | 9.5 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 (enclosures with single door) |
Packaging
| Package 1 | 1 PCE, 51.500 cm × 41.500 cm × 25.000 cm (L × W × H), 8.580 kg |
| Package 2 | 30 PAM, 120.000 cm × 100.000 cm × 170.000 cm (L × W × H), 270.000 kg |
