PanelSeT S3DEX (ATEX certified) H400xW400xD200 .IP66 IK10 RAL7035.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 6.9 kg |
Shipping & availability
When can NSYS3DEX4420 be shipped?
NSYS3DEX4420 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3DEX4420 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3DEX4420 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3DEX4420, subject to availability and destination.

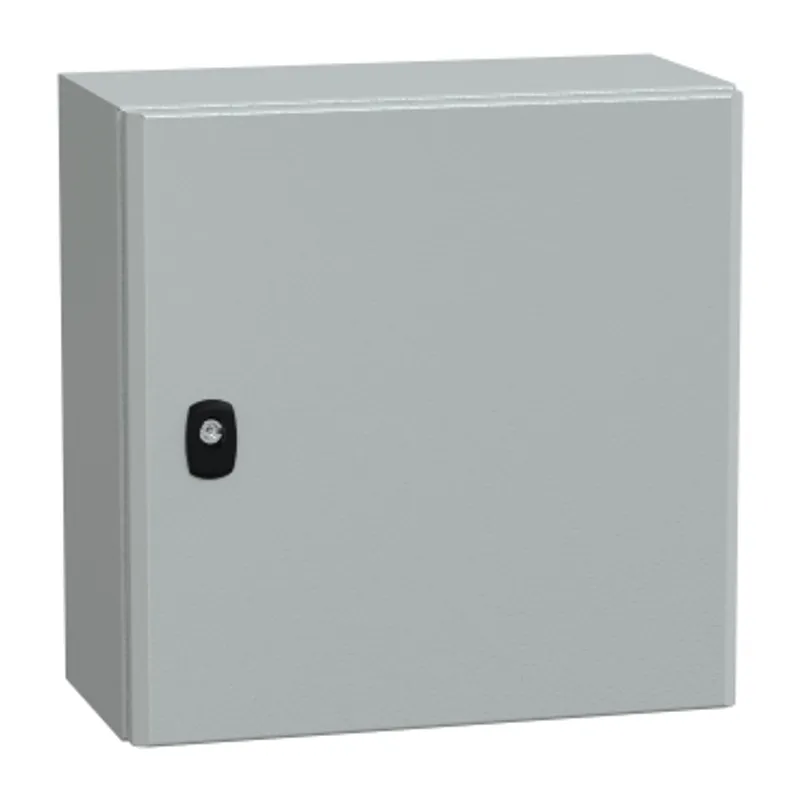

The Spacial S3DEX is a wall-mounting enclosure designed for ATEX certified applications in potentially explosive atmospheres It has a steel body and a nominal height, width, and depth of 400mm, 400mm, and 200mm, respectively The enclosure is grey in colour (RAL 7035) with an epoxy-polyester powder surface finish It has a plain door with a double-bar lock and hinges, allowing it to be opened up to 120° and the opening side is reversible The door can be removed for maintenance purposes It is certified by EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009 and is compliant with NEMA 4X/13, IK10 (IEC 62262), and IP66 (IEC 60529) The net weight of the enclosure is 6,9kg
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DEX |
| Application | ATEX certified application |
| Category | Compact enclosure |
| Enclosure nominal height | 400 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
| Product destination | For potentially explosive atmosphere |
| Device composition | 1 door, 1 lock, body with clamped blind nut |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | Double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009 |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC |
| Net weight | 6.9 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 (enclosures with single door) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.500 cm |
| Package 1 Width | 40.500 cm |
| Package 1 Length | 41.000 cm |
| Package 1 Weight | 6.864 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 182.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 288.000 kg |
| Warranty | 18 months |
